II. Removal/Installation and Overhaul of Front Brake and Brake Calliper
1. System Structural Diagram

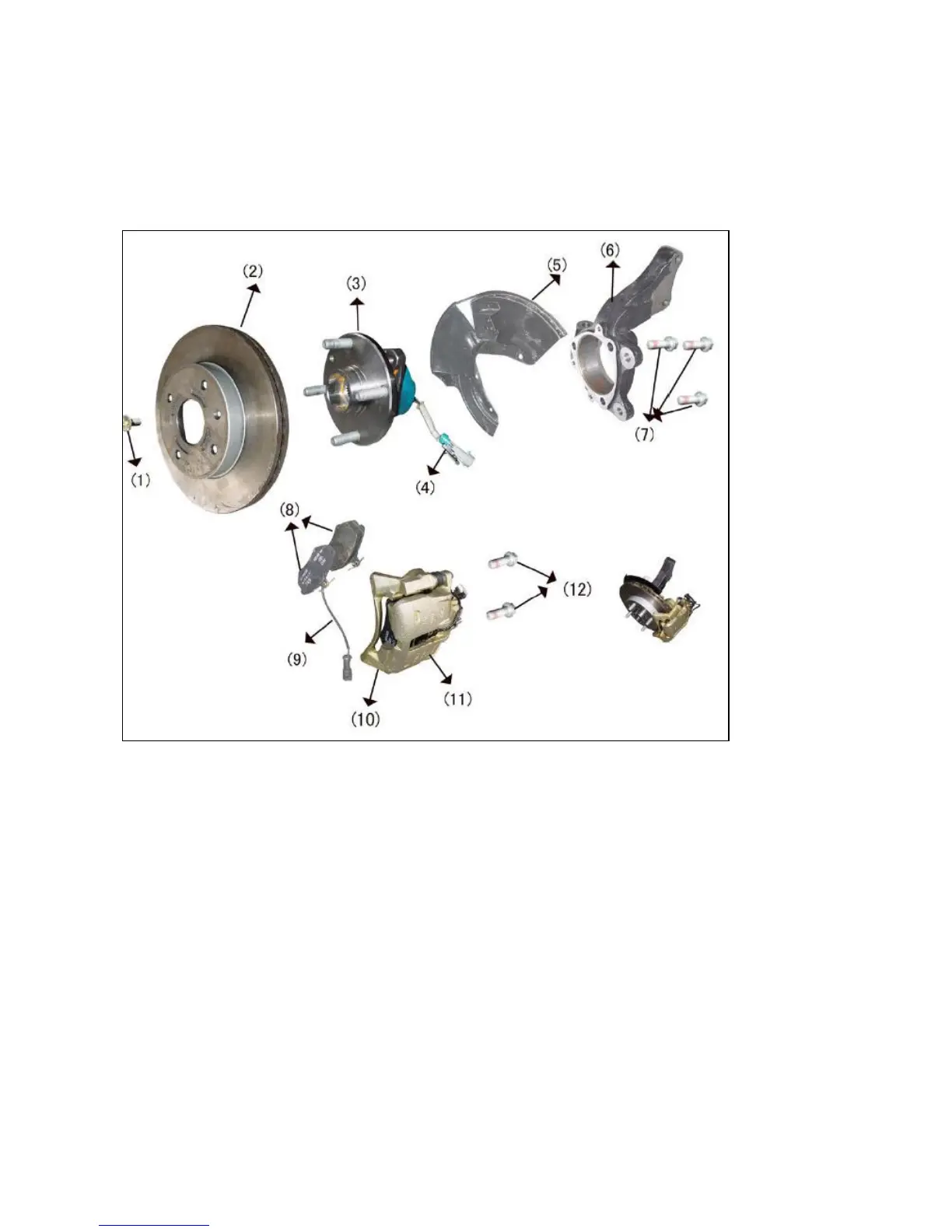

Structural Diagram of Front Brake Assembly
(1) Brake disc positioning bolt (2) Brake disc
(3) Wheel hub bearing unit; (4) ABS speed sensor plug
(5) Dust cover (6) Steering joint
(7) Fixing bolt (8) Friction lining
(9) Friction lining thickness sensor plug (10) Brake bracket
(11) Brake calliper assembly (12) Fixing bolt
