Section V Removal and Installation of Instrument Panel Harness

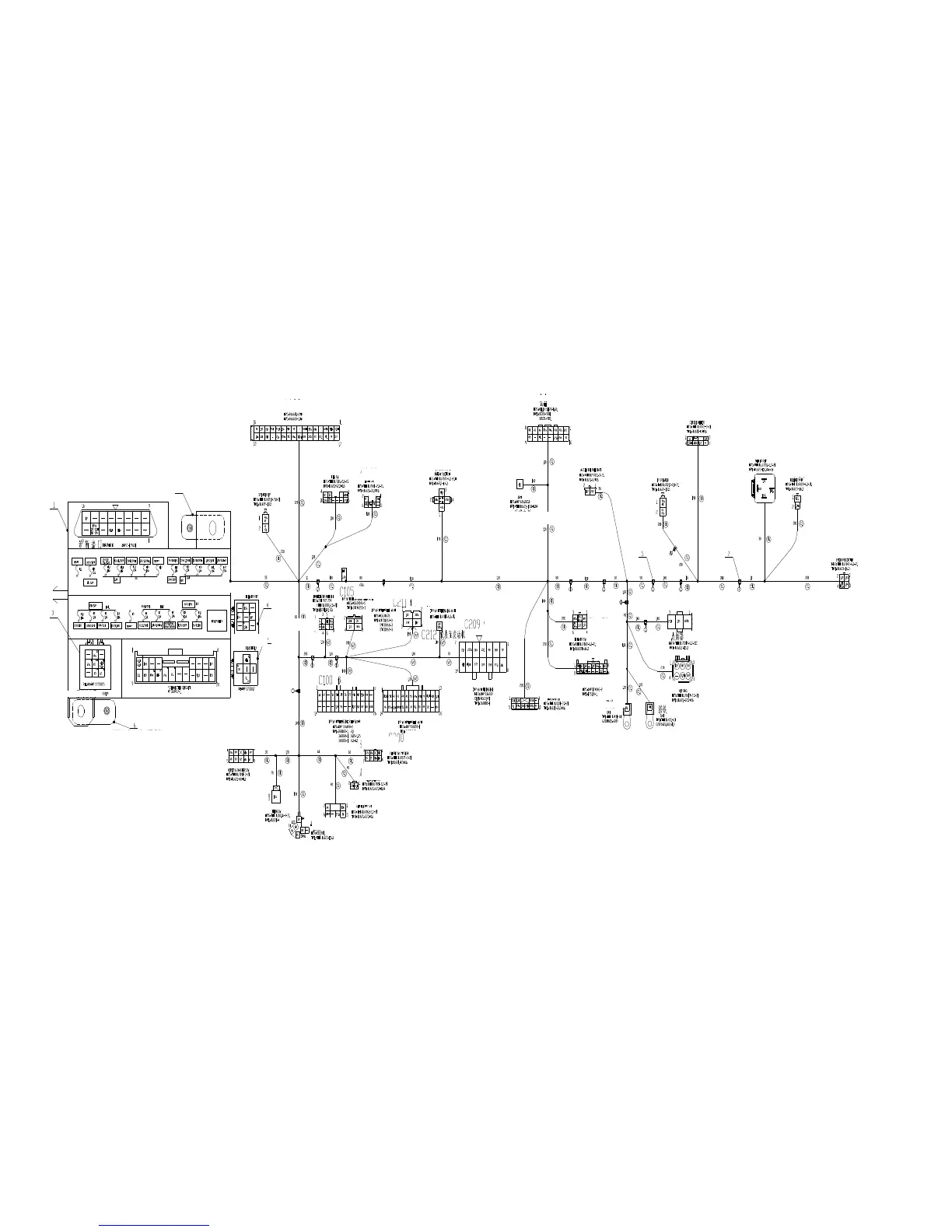

I. Harness sketch
Wiper switch
Horn button
Diagnosis
interfa
ce
Cigarette lighter
Ground
Instrument
to engine
O
u
tgoing
wire
The bracket
should be
fitted together with the
electric box
, the torque
is:7±1NM
To instrument
e
lectric
b
ox
Wiper relay
The bracket
should be
fitted together with the
electric box
, the torque
is:7±1NM
Blower relay
Turning relay
Left loudspeaker
Cluster gauge
Fog light switch
Nightlight switch
Brake switch
Antenna power
Blower relat
Blower power
Air conditioner
speed resistor
Air bag
connector
Ground
Blower switch
Air conditioner
switch
Alarm
switch
Instrument
to engine
Instrument
to interior
Dimmer
turning switch
Instrument
to interior
Rear wiper
handle switch
Headlight
switch
Ignition
switch
Anti-theft
module
Audio
Air conditioner
thermostat
I/O circulation
motor
Right loudspeaker
Instrumen
t to front
compartment
Instrument to front
compartment
Wiper
switch
Horn
button
