Chapter 2 Adjustment of Suspension System and Four-Wheel
Alignment
I. Removal/Installation and Overhaul of Front Axle and Suspension
1. System Structural Diagram
The front axle of Chery S21 model adopts the split steering drive axle, with MacPherson independent
suspension. The upper end of the suspension is connected with the vehicle body as the lower end is connected
with the secondary vehicle frame. The front Macpherson suspension undertakes the dual functions of driving
and steering. Subframe connects with vehicle body via elastic element, which improves diving stability and ride
comfort.

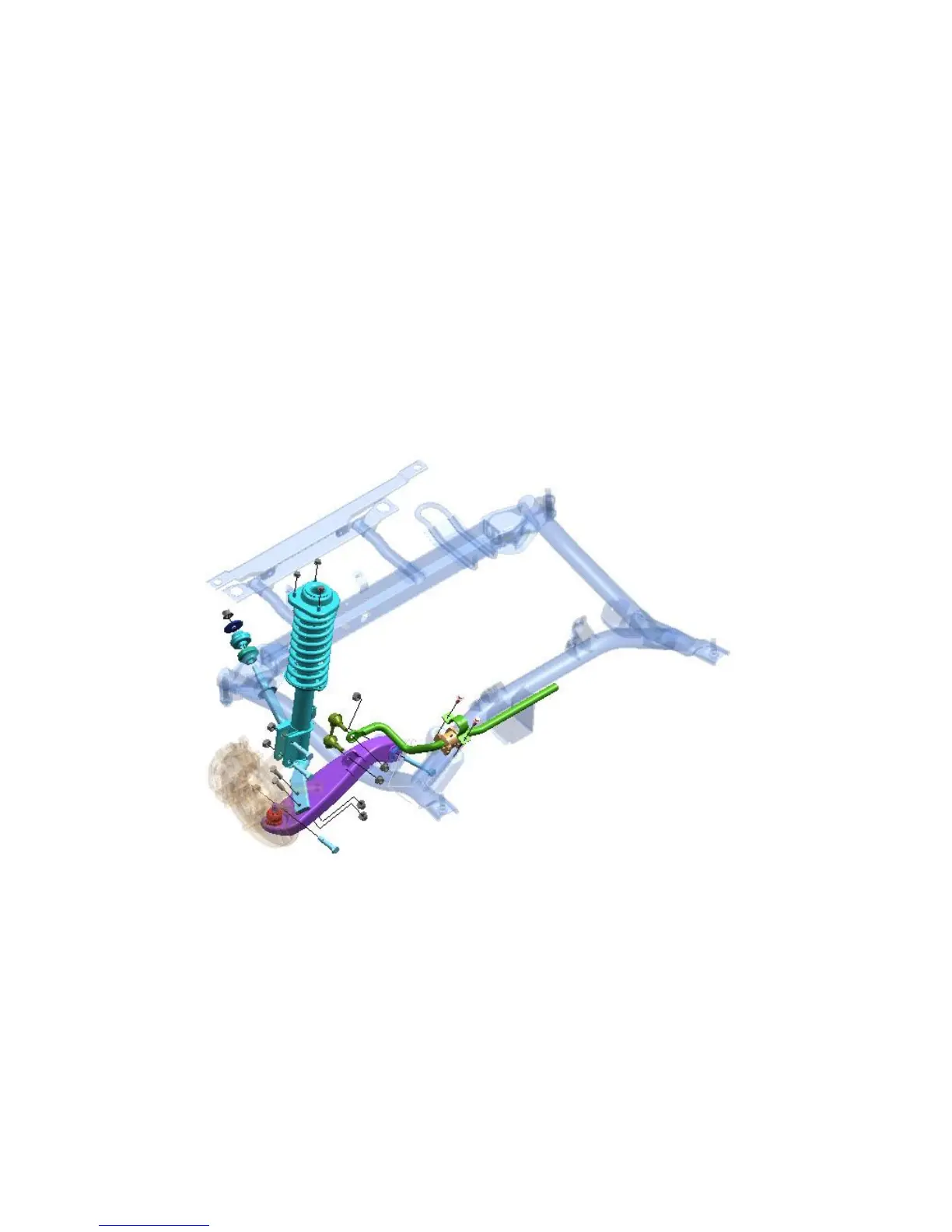

Structural diagram of Front Axle and Suspension System
