Chery A113 - Page 19

1 Nut 9 Nut 17 Nut
2 Gasket 10 Left control arm 18 Nut
3 Rubber gasket I 10 Right control arm 19 Bolt
4 Rubber gasket II 11 Nut 20 Bolt
5 Left propelling rod weldment assembly 12 Secondary vehicle frame 21 Clamp
5 Right propelling rod weldment assembly 13 Front strut assy. 22 Rubber bush
6 Nut 14 Nut 23 Bolt
7 Bolt 15 Front connecting rod assy. 24 Bolt
8 Bolt 16 Front stabilizer bar 25 Bolt

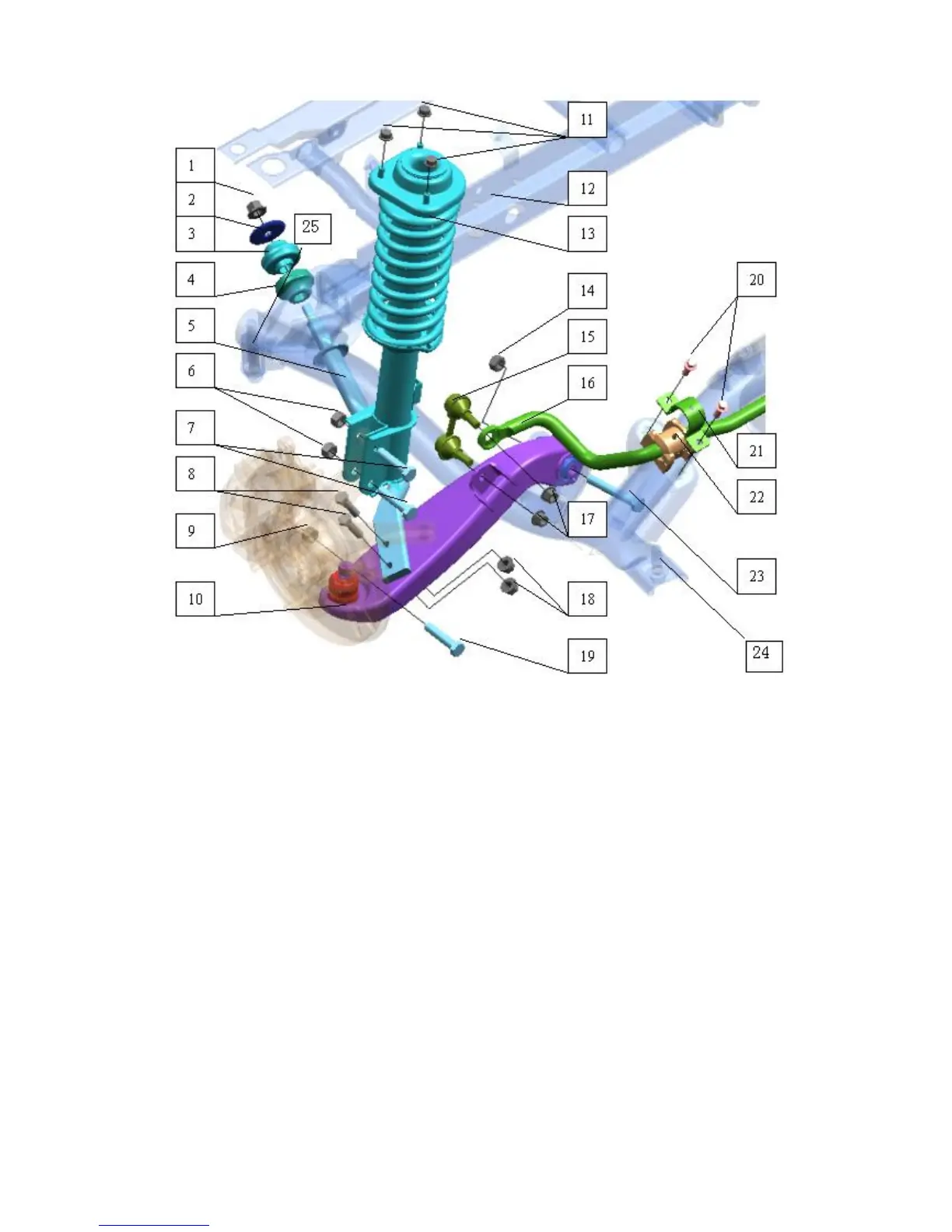

Composition List for Front Axle and Suspension System
