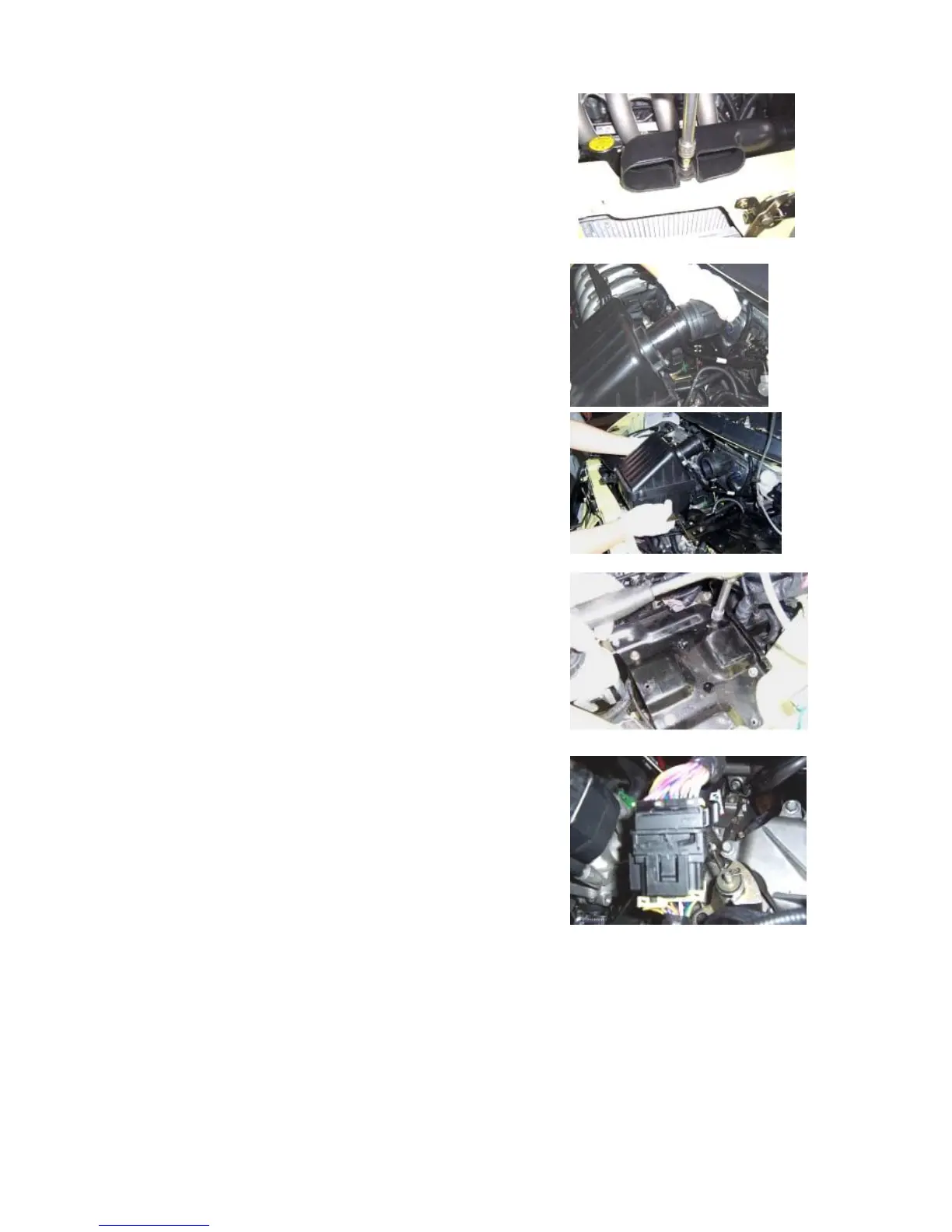

1.1.4. Use a sleeve wrench to loosen off the inlet air filter fastening
nuts.
1.1.5. Pull out the hose that connects the air filter and engine inlet
manifold by hand.
1.1.6. Remove the air filter.
1.1.7. Disassemble the battery fixed mounting.
1.2. The installation steps are reverse to those for removal..
2. Removal of harness
2.1. Disassemble the joints of all connectors of the engine
harness.
2.1.1. Disassemble the connector that connects the electronic fuel
injection harness with the ECU wiring harnes.
The removal can be carried out by pulling out the clip as shown in
the figure, and then the connector can be removed.
