Table 2
Trouble
Evidence
The ABS warning lamp constantly illuminates after the vehicle start
Possible Cause ● Damage of ABS warning lamp control
● Open-circuit of ABS warning lamp control circuit
● ECU damage of ABS

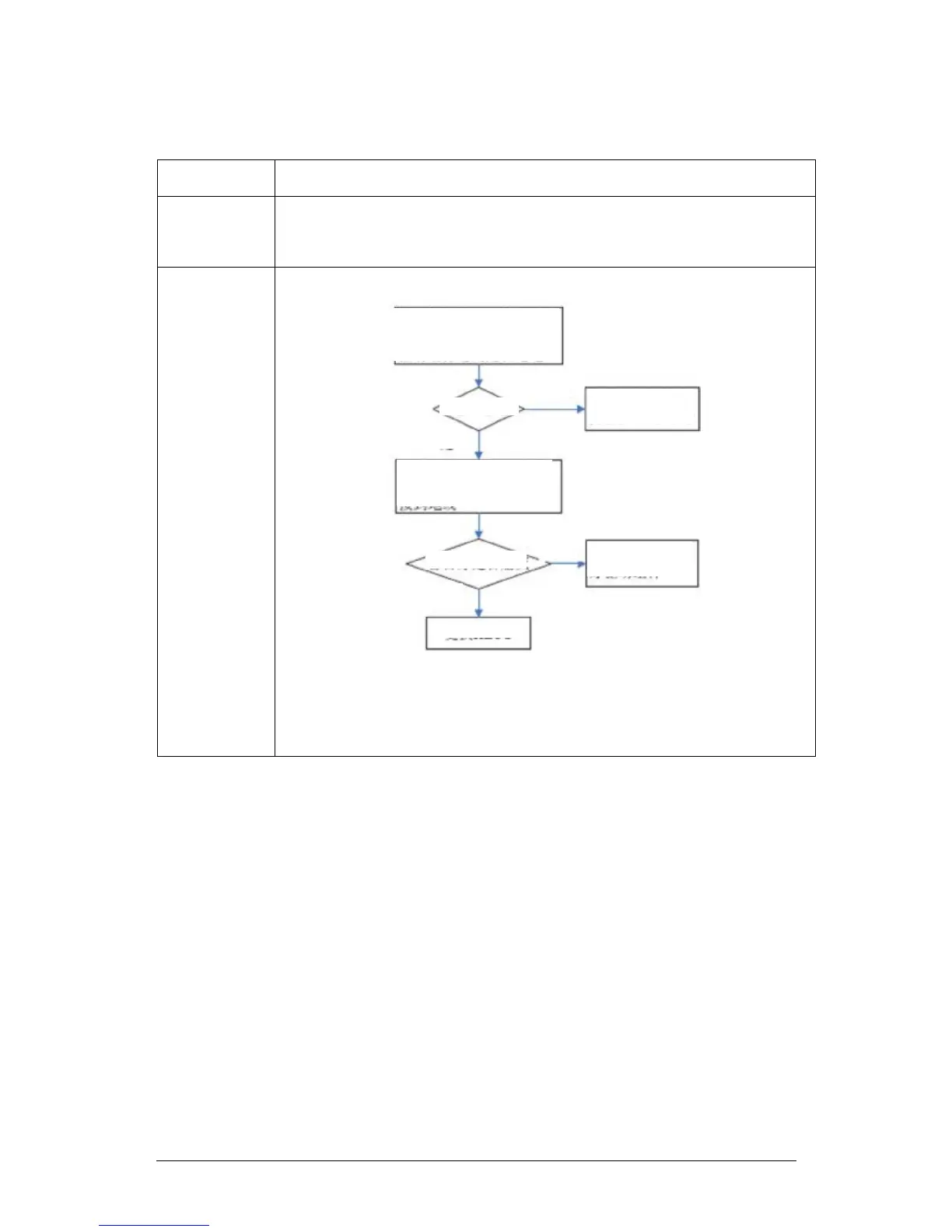

Troubleshooting
Flow
Yes
Yes
No
No
Replace HECU
Check and replace
warning lamp dri
ve
component
Check and replace
wiring of harness side
pin 16
After the harness side connector is
removed, confirm if it's powered
between
the harness side pin 16 and
warning lamp drive component.
Connect the harness side pin 16 to
the grounding wire whe
n the entire
vehicle circuits are on.
I
s it powered?
Is warning lamp off?
