Chery A113 - Page 281

Page 38 of 38

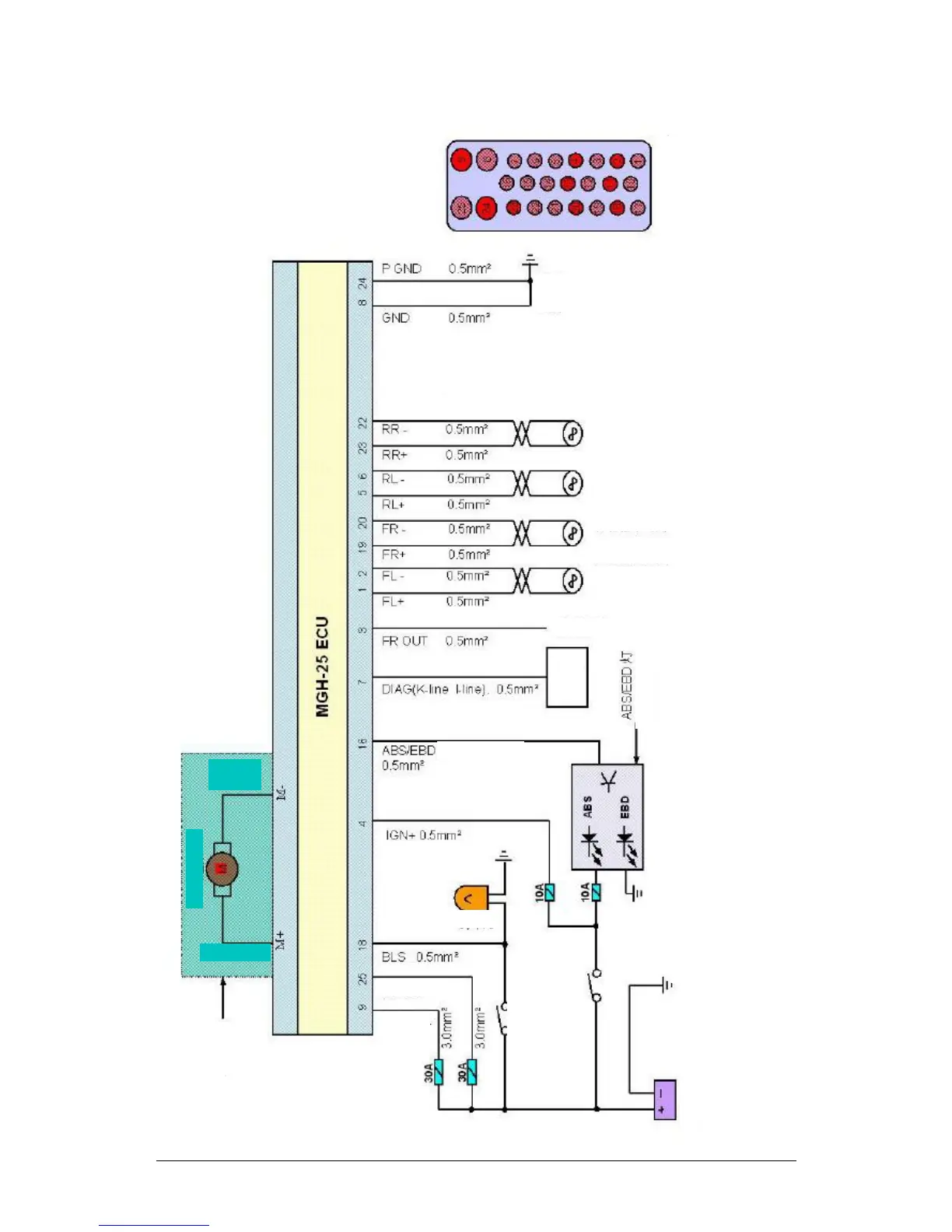

Harness side
connector
(Front view)
Grounding wire
Grounding wire
Wheel speed output
Rear right wheel sensor
Rear left wheel sensor
Front right wheel sensor
Front left wheel sensor
Warning lamp
Motor module
Trouble
diagnosis
instrument
Motor pump
Motor
cathode
Motor anode
Motor
anode
Valve anode
Brake lamp
Ignition switch
anode
Drive circuit
Brake switch
Note: “Ignition switch 1” refers
to the status when the key is rotated
to power on the vehicle but not to start the engine.
Ignition switch 1
Battery
