Chroma 11210 - Page 108

Battery Cell Insulation Tester 11210 User’s Manual
8-6
PD
11210
Test
Voltage
#1 #2 #3 #4 #5 #6 #7
VPD
100V
NA
NA
NA
NA
NA
NA
4~9
500V
NA
NA
4~9
9~15
13~19
20~27
31~38
1000V
4~10
8~13
11~17
21~28
28~32
41~51
60~76
CPD
100V
NA
NA
NA
NA
NA
NA
4~9
500V
NA
NA
4~9
9~15
12~19
19~27
34~41
1000V
4~10
8~13
11~17
21~29
30~37
46~56
69~85
Table 8-1 Connect to DUT 0.1uF - Typical Values of PD Occurrence Level

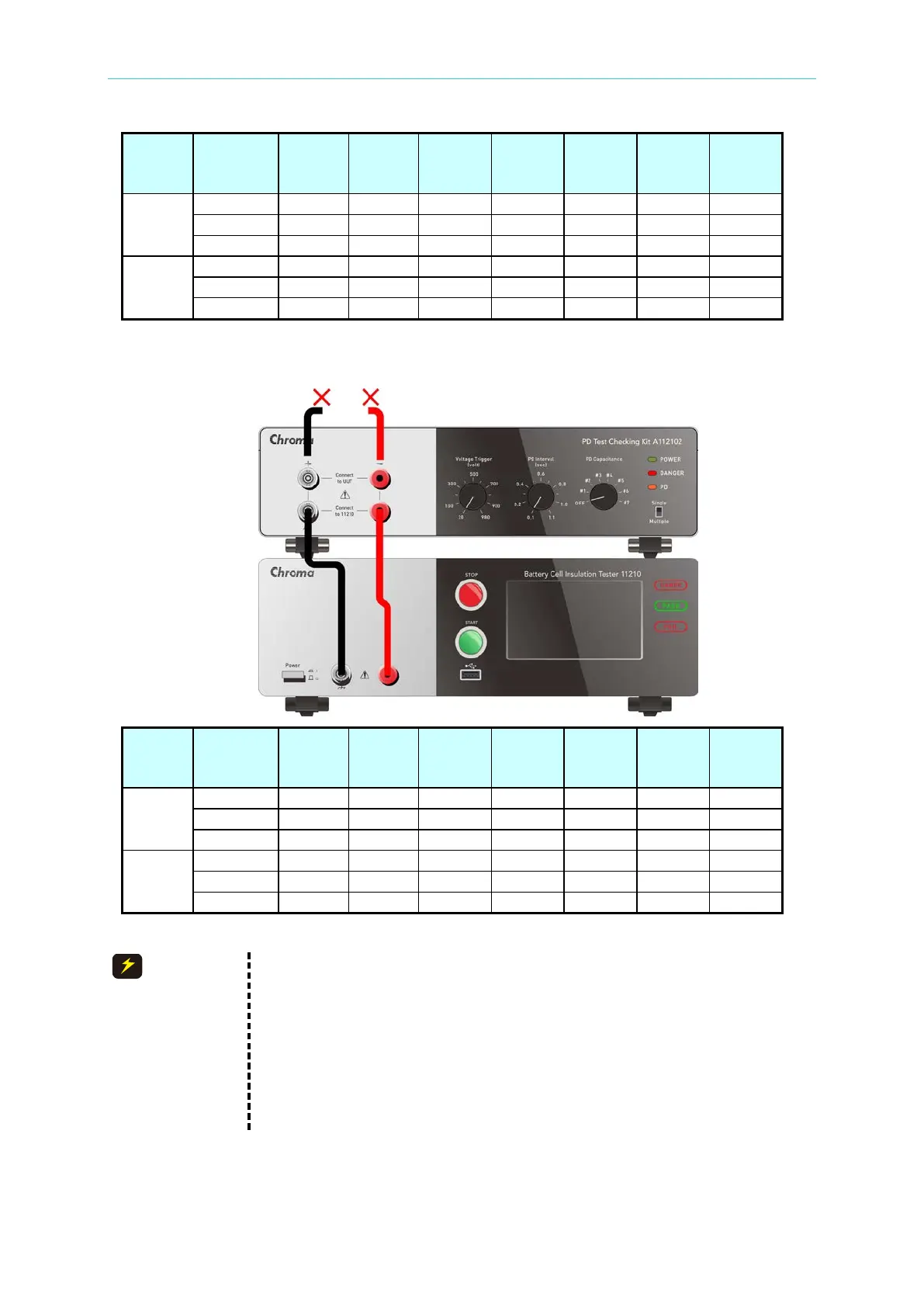

Typical values of measured level (Not connect to DUT):
PD
11210
Test
Voltage
#1 #2 #3 #4 #5 #6 #7
VPD
100V
NA
NA
NA
NA
3~8
6~11
10~15
500V
4~9
8~12
11~16
20~26
27~33
42~48
63~73
1000V
11~17
17~24
24~31
44~49
58~63
NA
NA
CPD
100V
NA
NA
NA
NA
3~8
6~11
10~15
500V
4~9
8~12
11~16
20~26
27~33
43~53
69~76
1000V
11~17
17~24
24~31
46~53
60~70
NA
NA
Table 8-2 Not Connect to DUT - Typical Values of PD Occurrence Level
1. The PD measurement function of 11210 is to detect the voltage and
current change. When the DUT is connected, the voltage and
current change on the line is more moderate during open circuit. In
general test, the DUT equivalent capacitance can be measured is
about 0.1uF to 10uF. The above mapping table shows the Level
typical values of DUT in 0.1uF capacitance and without connecting
to it.
2. DUT specification: Polypropylene Film (PP) Capacitor
0.1uF/1000Vdc/5%.
CAUTION
