Battery Cell Insulation Tester 11210 User’s Manual
9-4
9.3.2 HANDLER Control Interface - Output Port (O/P)
Example of Output Port (O/P) circuit applies the general connection as Figure 9-2 shows. The
typical Io current is 5mA. The selection of external resistance (Ro-ext) will be varied by
external DC voltage source Vs. Take +5Vdc and +24Vdc as example in below figure, the
selected resistances are 1kΩ and 4.8kΩ.

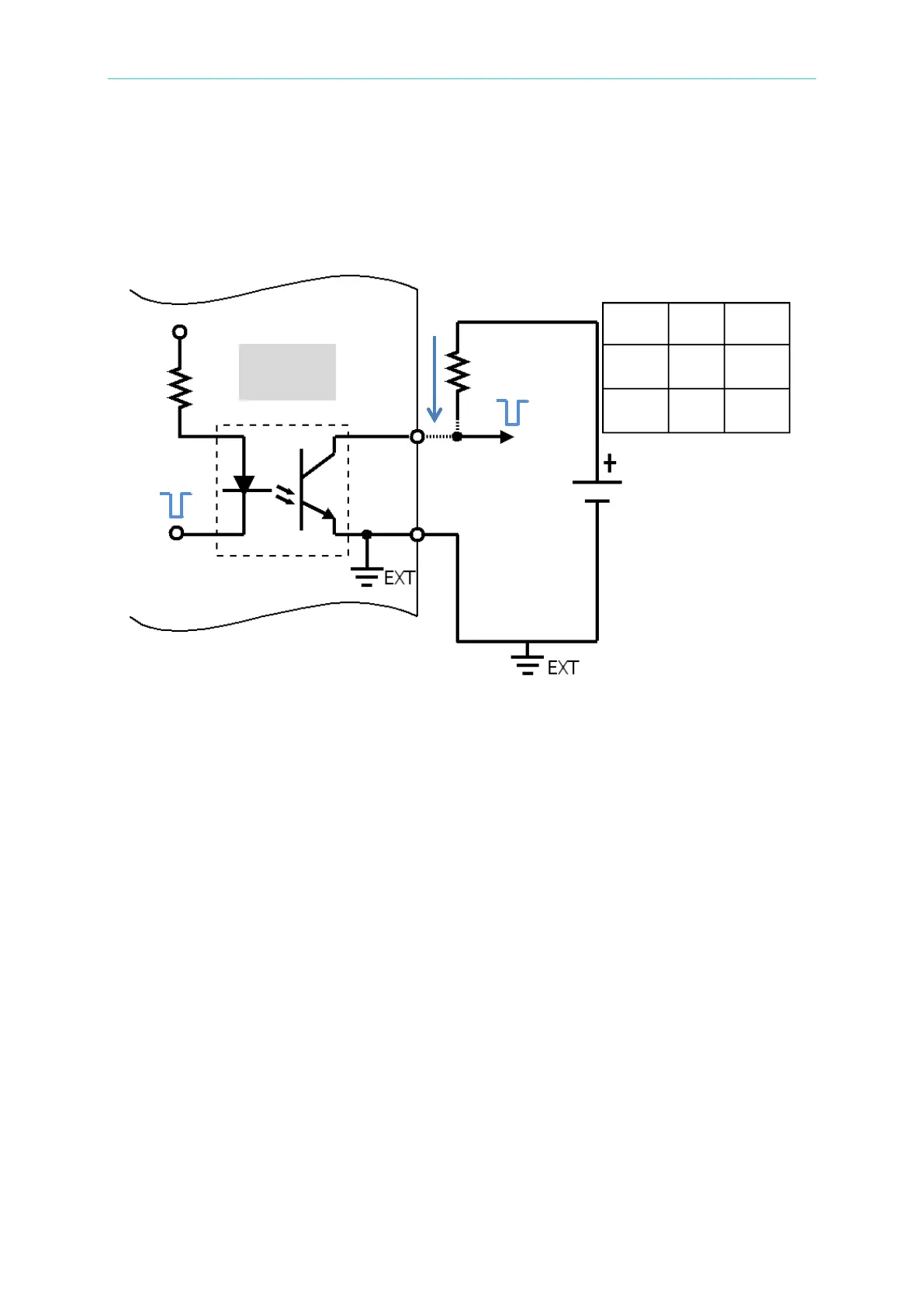

Fi
gure 9-2 Example of HANDLER Interface Output Circuit
R
Handler
Interface
Control
Signal
Ro_ext
Vs=+5 ~ +24Vdc
Io_max = 5mA
V
Vs +5V +24V
Ro_ext
1kΩ 4.8kΩ
Io 5mA 5mA
