Chroma 11210 User Manual

A112101 PD Analyzer Function Card (Option)
7-1
7. A112101 PD Analyzer Function Card
(Option)
This is an optional function. Besides measuring the leakage current or insulation resistance
on the DUT, it has additional partial discharge detection and waveform analysis function.
7.1 IR/LC Test Condition Setup
See section 5.3.1, 5.3.2 and 5.3.3 for the R/LC test settings and parameters.

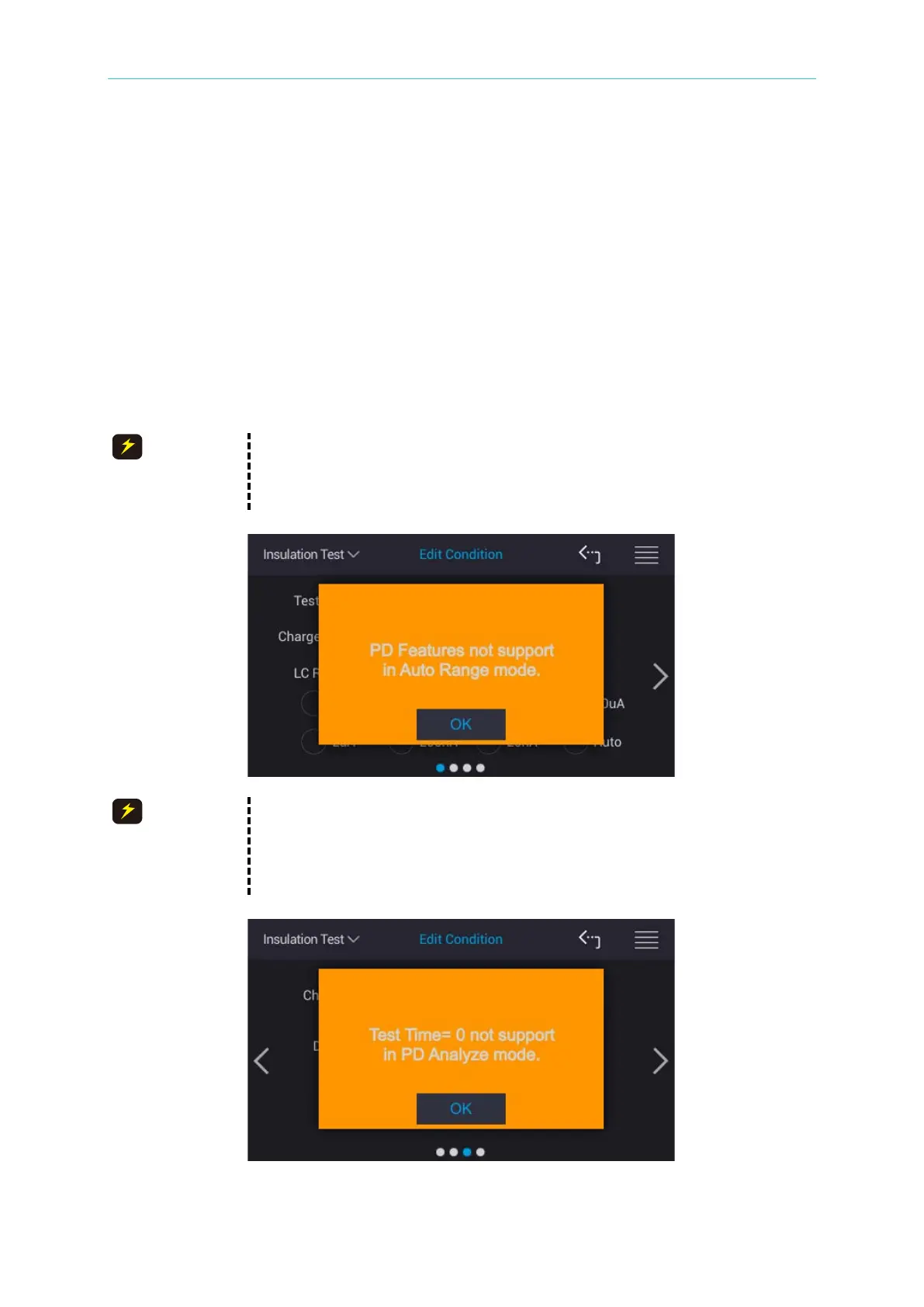

1. When the LC Range is set Auto, it does not support the PD
measurement function.
2. Troubleshooting: When the following warning window appears,
please change the LC Range to fixed range.
1. When the Test Time is set to 0 ms (continuous test mode), it does
not support PD analysis mode and BDV mode.
2. Troubleshooting: When the following warning window appears,
please modify the Test Time to greater than or equal to 5ms (general
test mode).
CAUTION
CAUTION
