Battery Cell Insulation Tester 11210 User’s Manual

5-14

When the [Default RAM] is restored to default, the Auto Save

Configuration is set to OFF.

5.2.4 Interface Setup

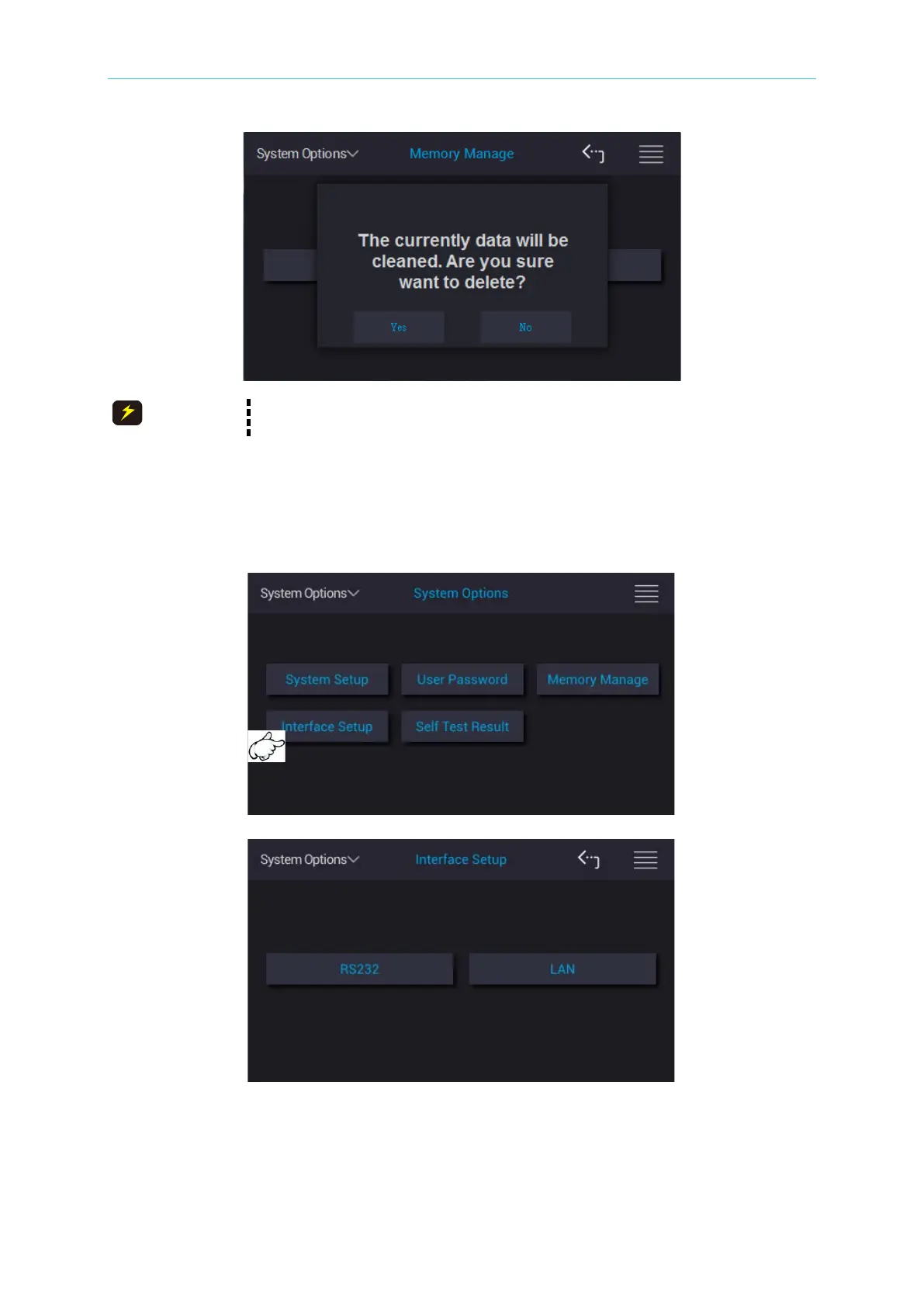

Interface parameter setup consists of RS232 and LAN.
