Setting for Operation

5-1

5. Setting for Operation

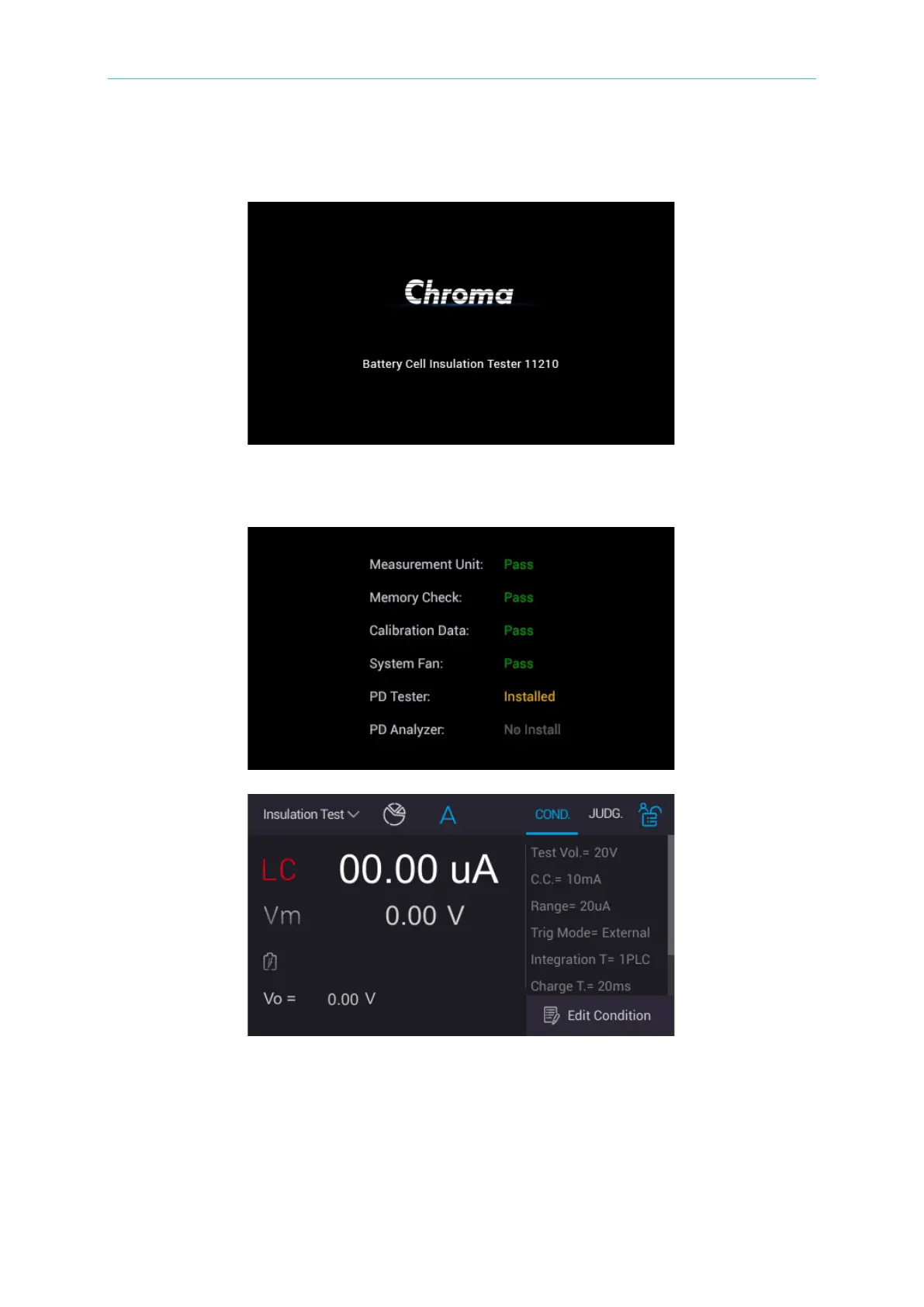

Power-on self-test screen pops up after about 10 seconds. Enter Insulation Test

measurement main menu after about 10 seconds as the figure below shows.

Main Page
