Chroma 11210 User Manual

Battery Cell Insulation Tester 11210 User’s Manual
A-4

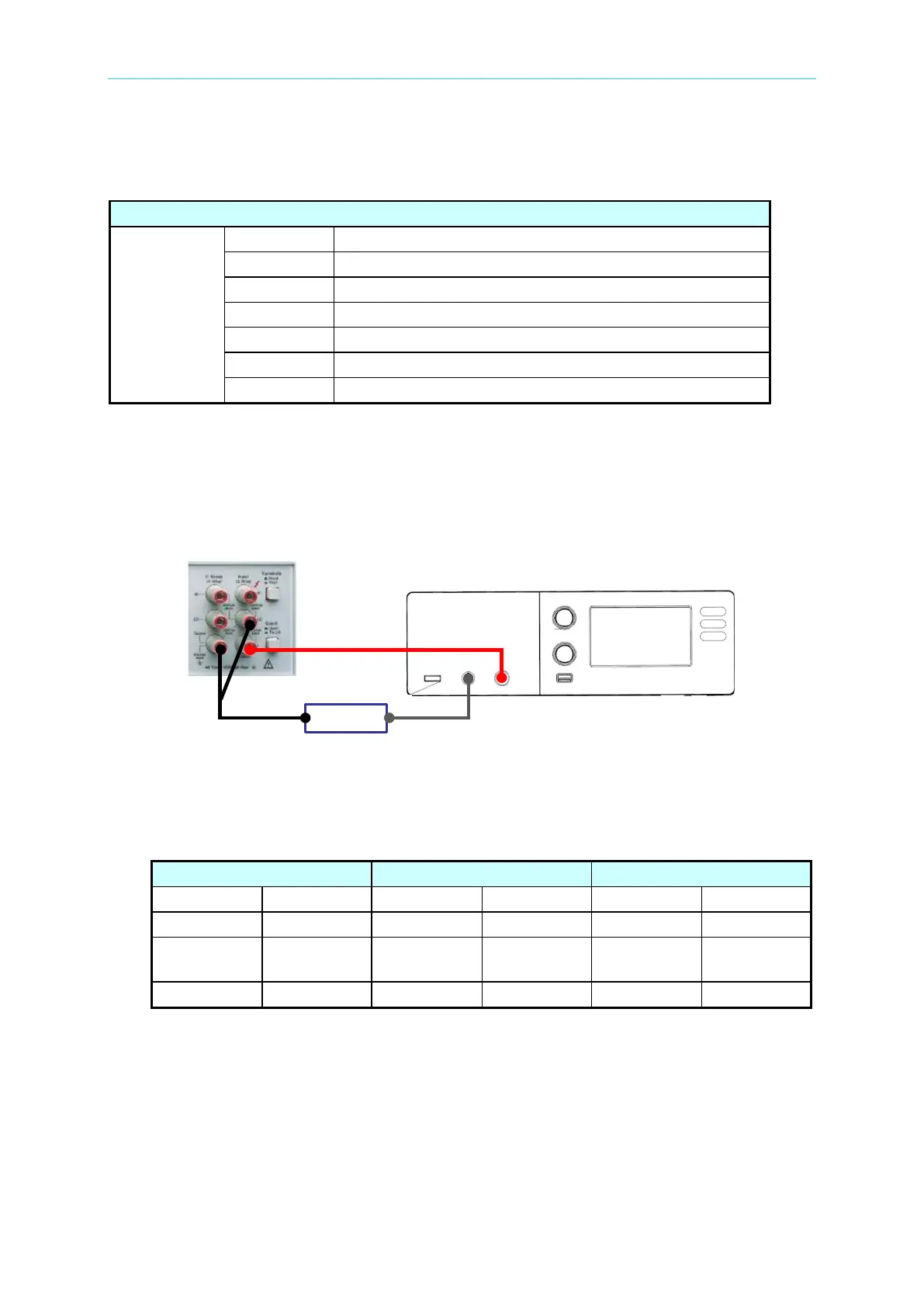

A.4 LC (Leakage Current)
Specification verification for leakage current:
Basic Measurement Accuracy
LC
20.00nA
±(5.0% Reading + 5.0% Range)
200.0nA
±(1.0% Reading + 1.0% Range)
2.000uA
±(0.3% Reading + 0.3% Range)
20.00uA
±(0.3% Reading + 0.3% Range)
200.0uA
±(0.3% Reading + 0.3% Range)
2.000mA
±(0.3% Reading + 0.3% Range)
20.00mA
±(0.3% Reading + 0.3% Range)
Step:
1. Connect negative output terminal on 11210 panel to DMM (Keysight 3458A) current
measurement input terminal (-), connect positive output terminal on 11210 panel to DUT
A end in LC fixture. DUT B end in LC fixture is connected to Guard and LO end
simultaneously. Change DMM measurement function to range DCI and its sampling
status NPLC is 50.
2. Click “Edit Condition” on main screen to enter edit parameter page and set the
parameters in sequence as follows. After the setting is done, return to the measurement
main page.
Page 1
Page 2
Page 3
Parameter
Default Value
Parameter
Default Value
Parameter
Default Value
Test Voltage:
20V
Trigger Mode
Manual
Charge Time
20ms
Charge
Current
50mA
Integration
Time
500ms Dwell Time 20ms
LC Range
20mA
-
-
Test Time
5s
3. Press green “START” key on panel to process measurement L.C. value, record DMM
and 11210 L.C. values separately into the table.
4. Repeat step 2~3, modify column “Test Voltage” and “LC Range” under “Edition condition”
in sequence and change DUT to measure and record it.
DMM
3458A
Guard
Line
11210
+
-
DUT
Select DCI
A
B
