A112100 PD Tester Function Card (Option)

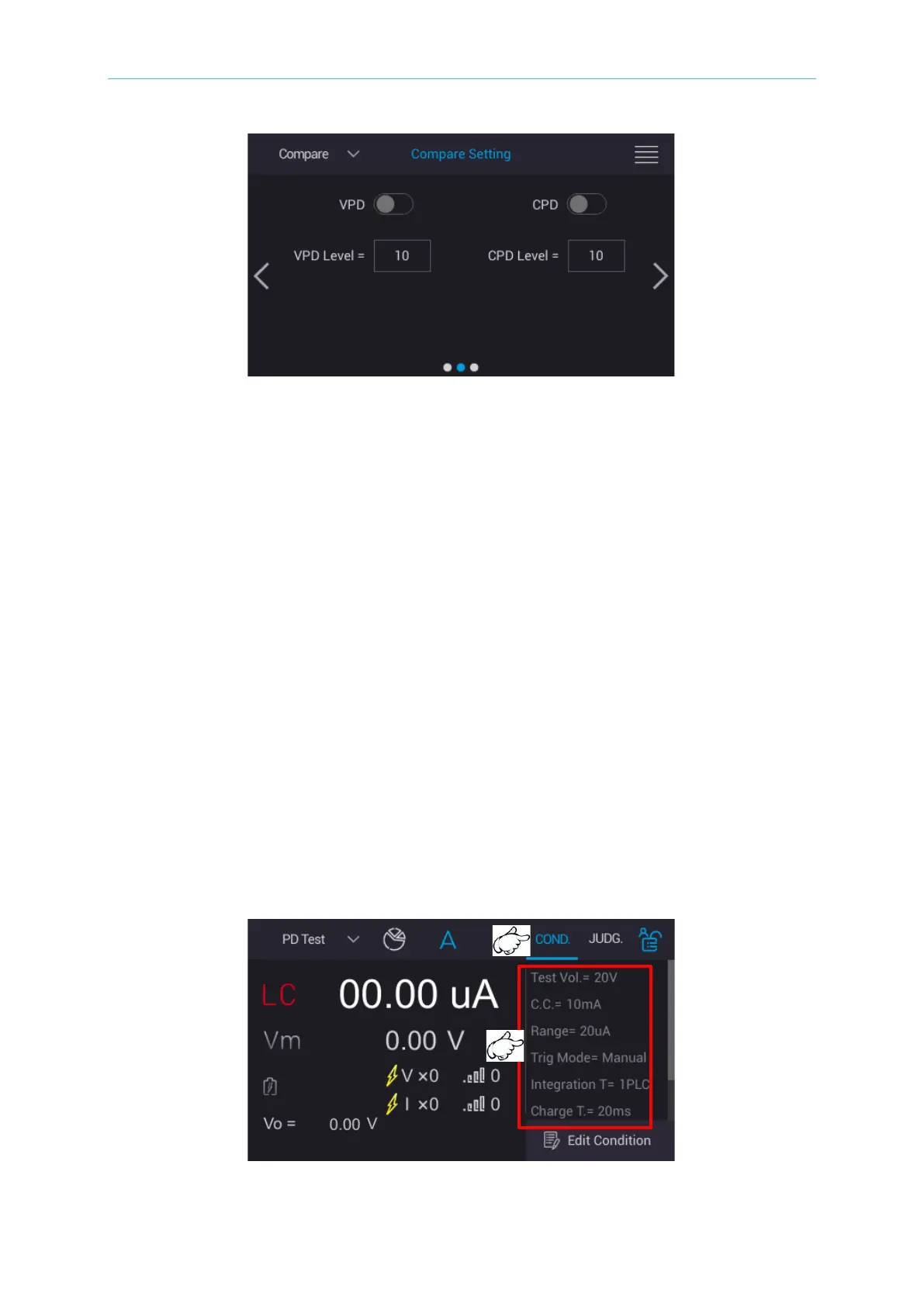

VPD: PD is occurred during CC (Constant Current, Charge Mode) procedure via touching
scroll wheel button to enable or disable judgment function. The test condition (VPD Level) is
used to evaluate the PD occurrence. When the level is higher than the setting, it means the
PD is occurred.
VPD Level: PD occurrence level, range: 1∼99. The factory default value is Level=10
when shipped.
CPD: PD is occurred during CV (Constant Voltage, Test Mode) procedure via touching scroll
wheel button to enable or disable judgment function. The test condition (CPD Level) is used to
evaluate the PD occurrence. When the level is higher than the setting, it means the PD is
occurred.
CPD Level: PD occurrence level, range: 1∼99. The factory default value is Level=10
when shipped.
6.5 PD Test Measurement Parameter and Judgment
Function Setup Display
Touch “Insulation Test” after returning main menu and touch “COND.” menu, the display area
at the lower side is the parameter specification for setting. It also can via scrolling screen up
and down on display area to confirm the parameter specification.
