Battery Cell Insulation Tester 11210 User’s Manual
8-4

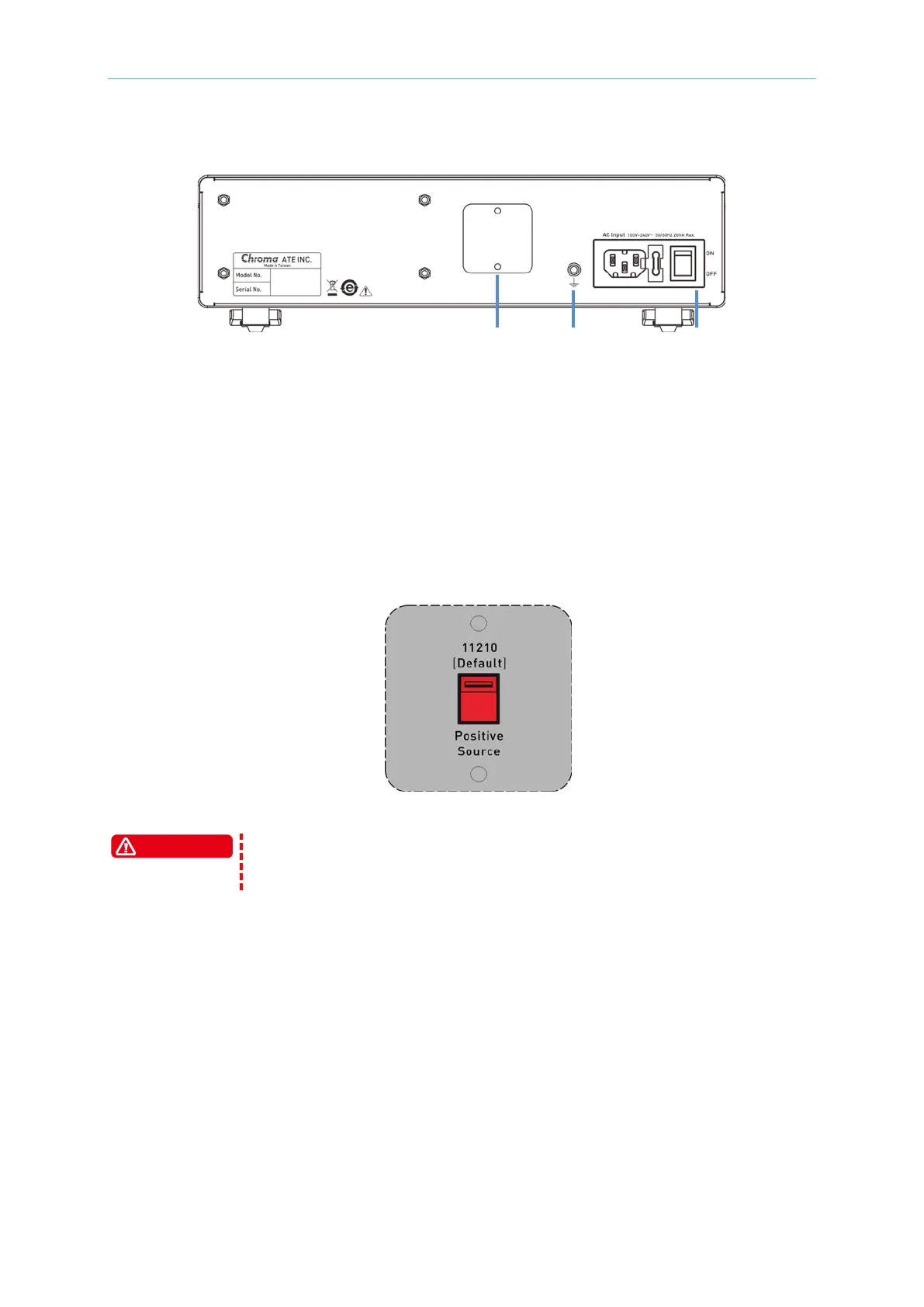

8.2.2 Rear Panel
(1) Power Inlet (AC Line)
(2) Grounding Terminal
This terminal directly connects the kit case to the ground preventing external interference
and avoiding floating contact on the kit to affect its safety.
(3) Bipolar Input Switch (Engineering mode)
This function is for engineering development use. When the cover on the rear panel is
unlocked, there is a switch inside as Figure 8-3 shows. It could cause the A112102 and
input source to be damaged if the switch type is changed arbitrary and non 11210 input
source is used. To use this function, please contact Chroma for assistance.
Figure 8-3 Bipolar Input Switch
This function is for engineering use and may cause damage to the kit if
used arbitrarily. To use this function, please contact Chroma for
assistance.
WARNING
1
2
3
