Setting for Operation

5-21

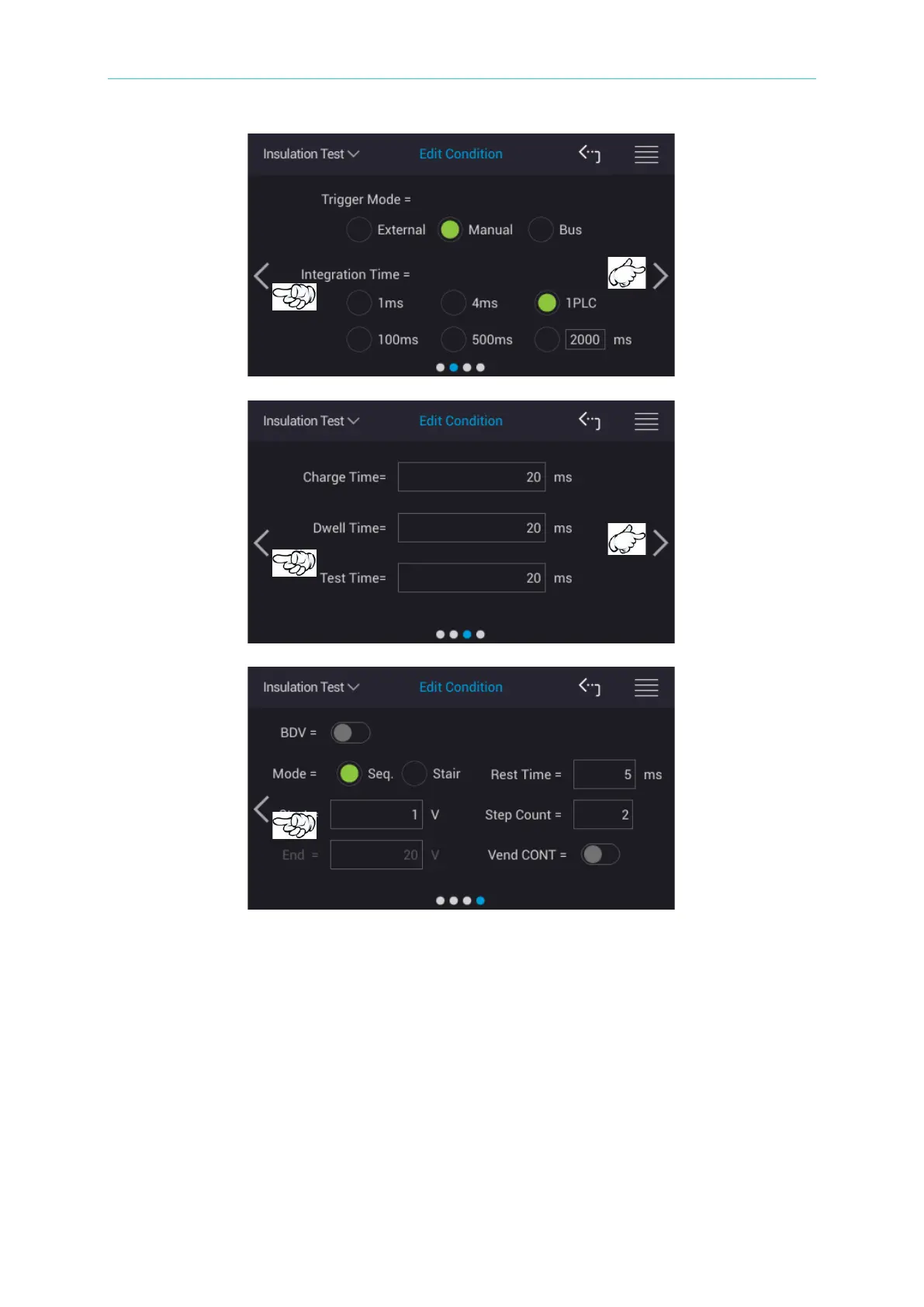

There are total 8 measurement parameters in the first three pages for user to set when

performing the measurement.

(1) Test Voltage:

Test voltage setting, the range is from 1V to 1000V. The factory default is 20V when

shipped.

Touch Test Voltage to input voltage column, a touch keypad will be appeared:

Main Page
