Setting for Operation
5-27
5.3.4.2 LC Null Example

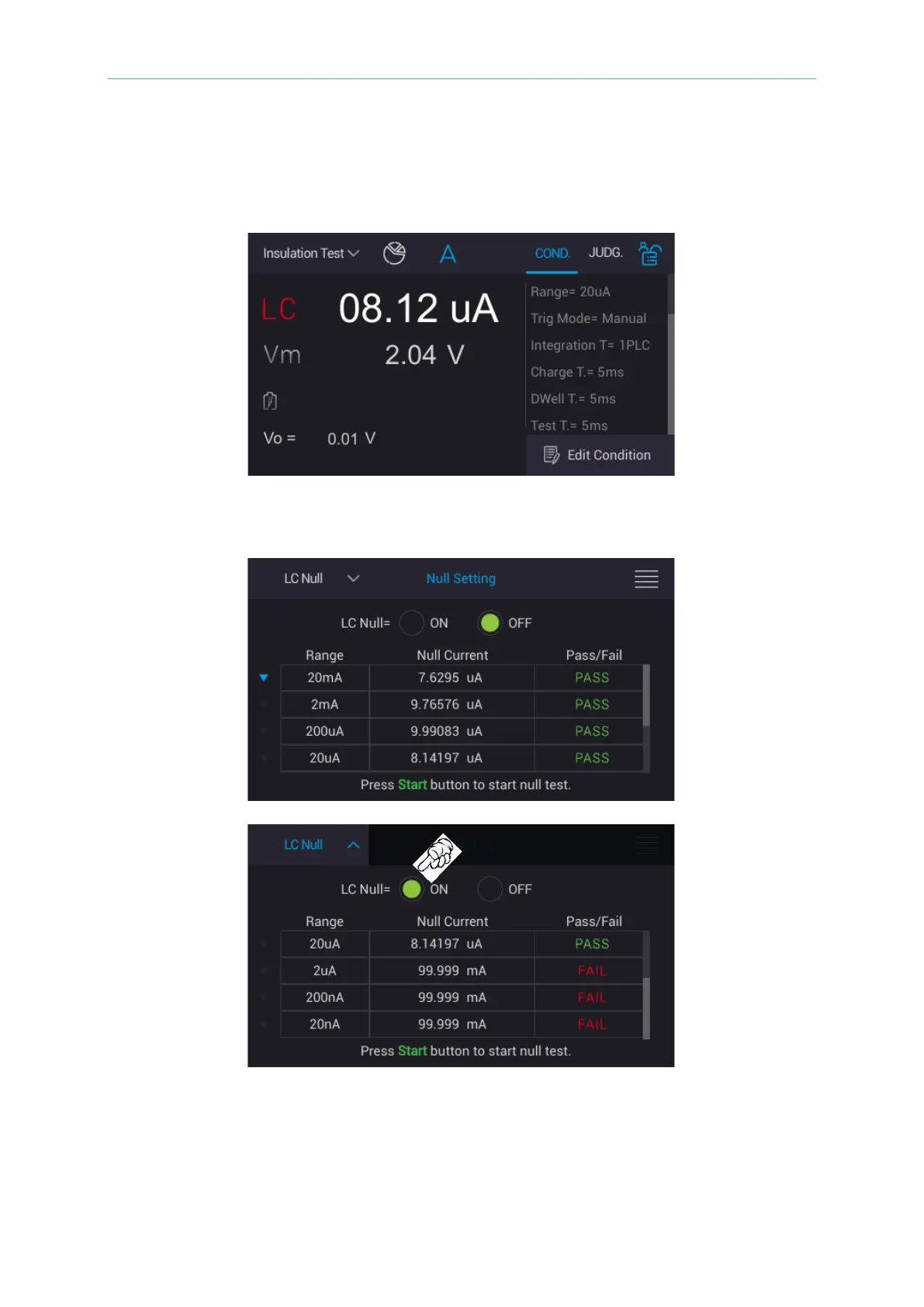

For example: Simulate LC≒8uA to be deducted, perform measurement in Insulation Test
screen after DUT is connected.
Perform LC Null to do various ranges leakage current reading on overall circuit, measurement
result as below shows.
The ranges are based on measurement result to display the range measured value and test
result. The measured value displays 99.999mA and FAIL if the range over the scope can be
measured and is unable to be deducted.
To Next Page
