â–€ Installing the 10 Gigabit Ethernet Line Card (XGLC)
â–„ ASR 5000 Installation Guide

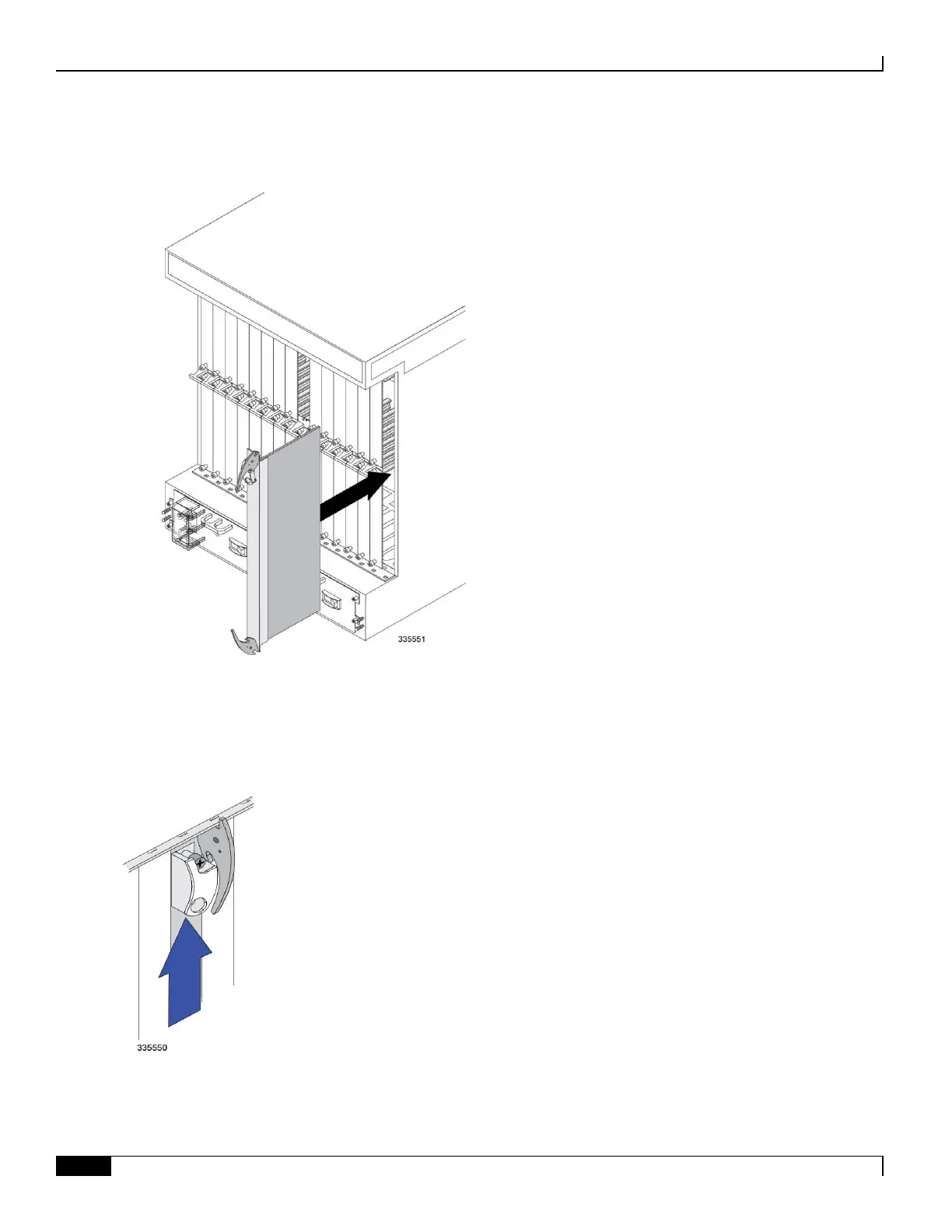

Step 3 Properly support the weight of the card and align it with the upper and lower card guides of the chassis slot. Gently slide
the card into the slot until the levers touch the chassis frame.
Step 4 Push the ejector levers inward firmly until the card is firmly seated in the chassis midplane and the ejector levers can be
pushed in no further. Press firmly on the card’s faceplate to ensure that it is fully seated. The card’s front panel should
be flush against the chassis’ upper and lower card mounts for the slot.
Step 5 Slide the interlock switch on the front panel of the line card upward to lock the ejector tab in place. The flange on the
left-side of the interlock switch prevents movement of the ejector tab when raised completely.
