Replacing the Chassis Air Filter
Installing the Air Filter â–€
ASR 5000 Installation Guide â–„
Installing the Air Filter
Follow the instructions below to install an air filter.
Step 1 Verify that the arrows located on the sides of the air filter point upwards. The arrows indicate the direction of the
airflow into the chassis through the filter.
Caution: Installing the air filter incorrectly may cause over-temperature conditions within the chassis.

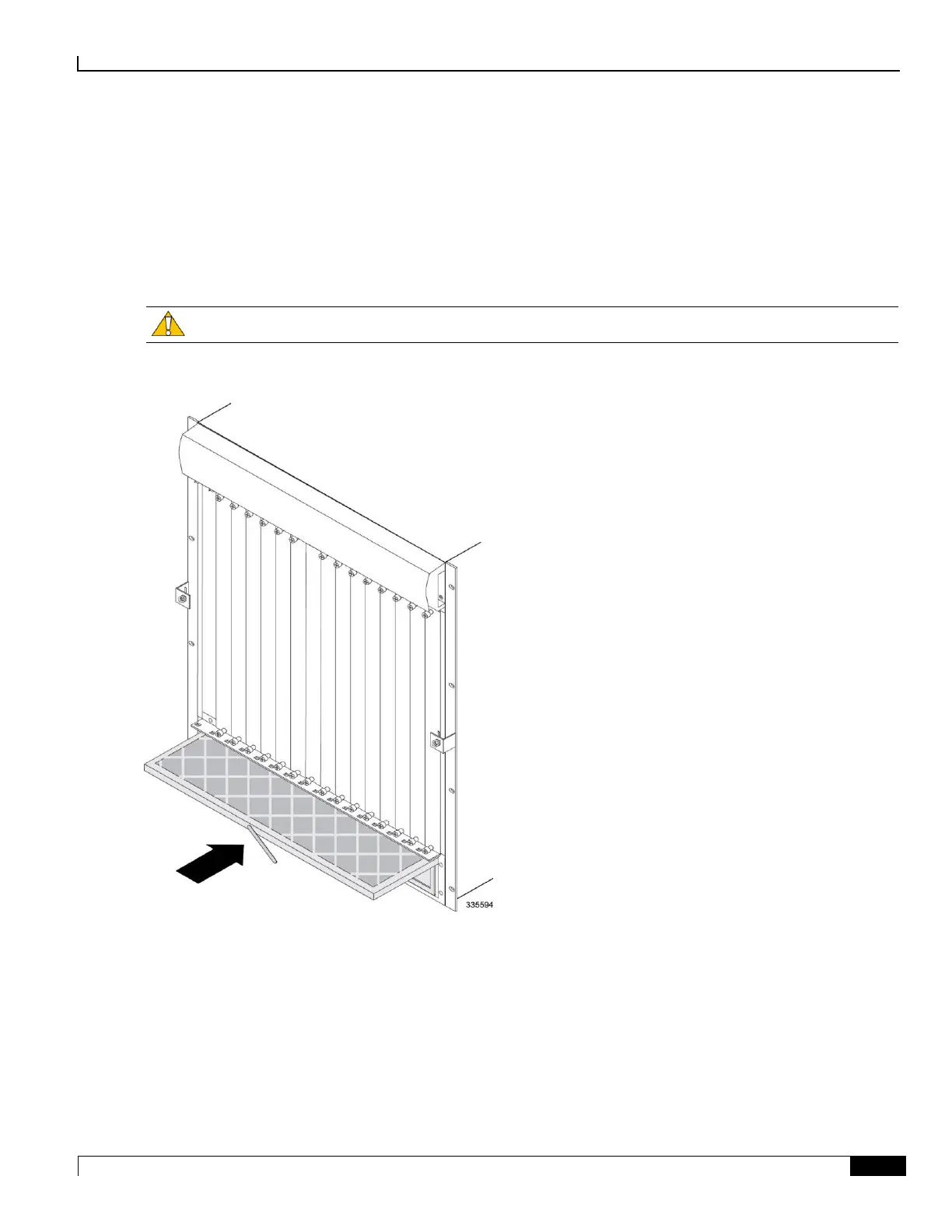

Step 2 Slide the air filter into the lower fan tray assembly along the guides located on the lower fan tray until the front of the
air filter is flush with the front of the assembly.
Step 3 Lower the plastic tab over the front of the fan tray assembly to secure it in place.
