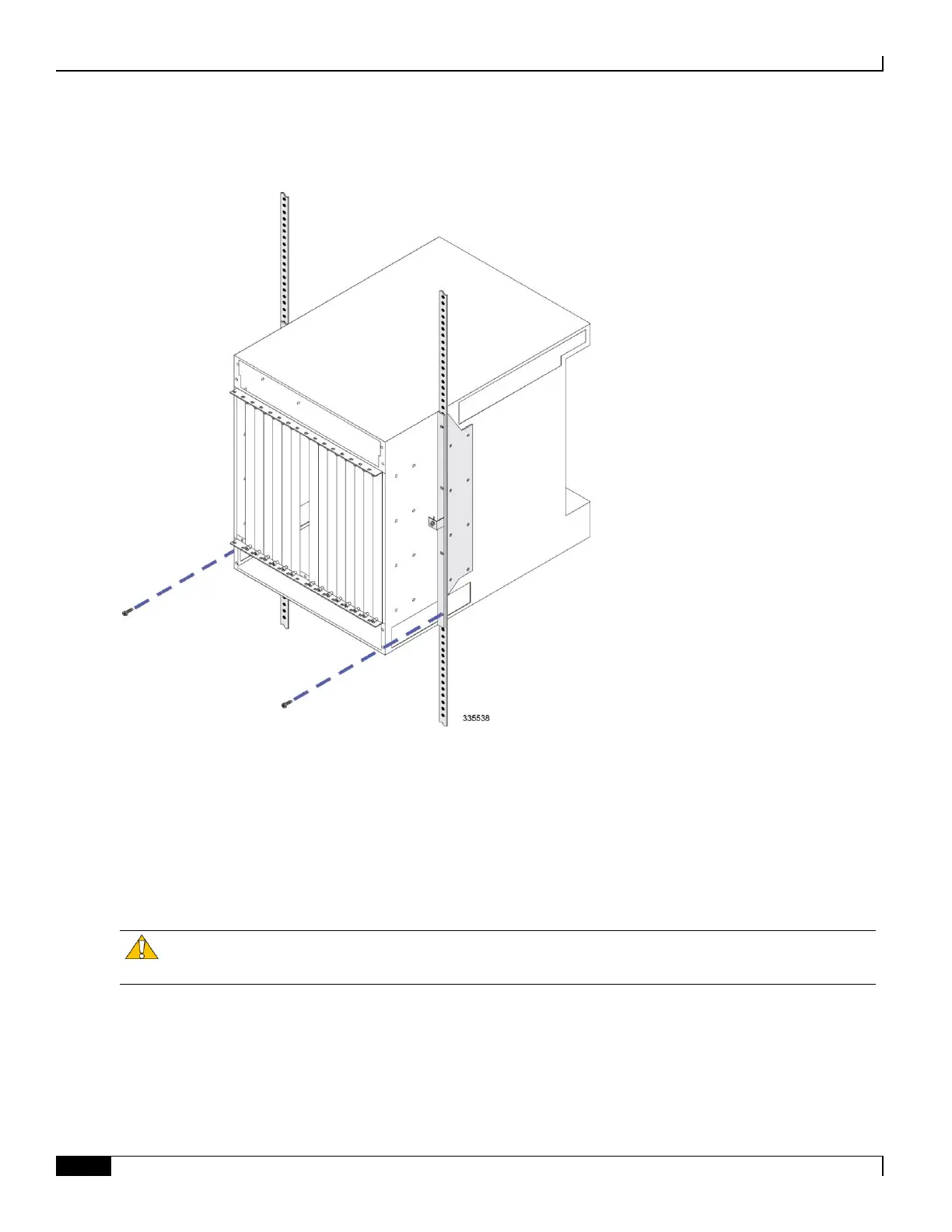

Step 5 Mount the chassis to the rails of the equipment rack with the hardware that was supplied with the equipment rack. Begin
with the two bottom holes and work your way up until all holes on each flange are secured.
Step 6 Repeat step 1 through step 5 for any additional chassis you are installing in the equipment rack.
Step 7 Proceed to the Grounding the Chassis section and ground the chassis.
Grounding the Chassis
Make sure that the chassis is properly grounded prior to installing any chassis sub-components or cards. The chassis and
the equipment rack or telecommunications cabinet that it is installed in must be connected to the same ground.
Caution: Failure to properly ground the chassis could result in personal injury and/or damage to the chassis and
its components.
There are two sets of grounding terminals located at the lower-rear of the chassis. The following figure and the table that
follows show the location of these terminals and provide specifications for the appropriate lug and cable size.
