Chassis Installation

Installing the Chassis ▀

ASR 5000 Installation Guide ▄

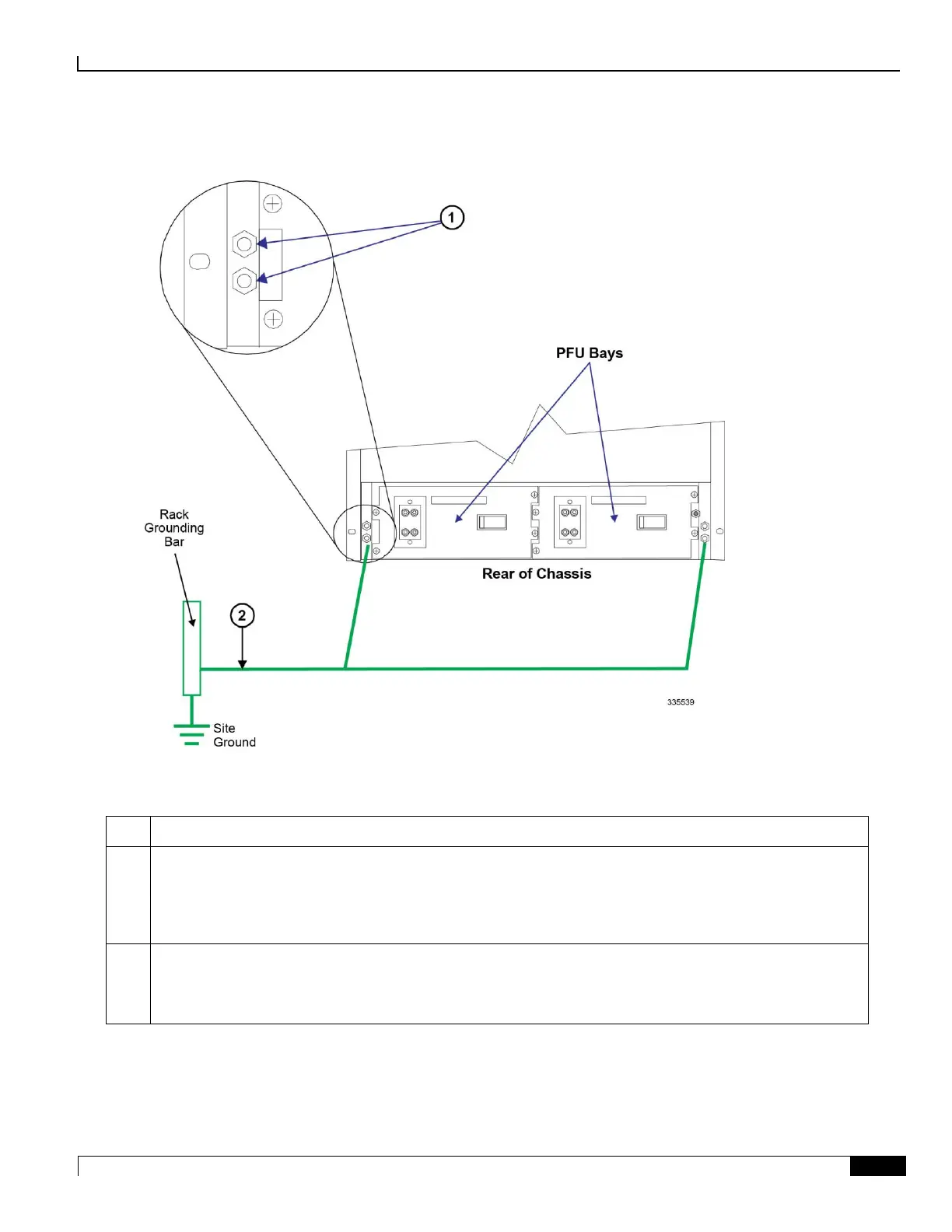

Figure 25. Chassis Ground Terminals

Table 25. Terminal and Cable specifications

Item

Description

Ground Terminal:

2-hole lug (0.186-inch posts, spaced 0.630-inch on center).

The method of connection is: chassis - lug - flat washer - nut (3/8-inch). The nut(s) must be torqued to 50 in-lb

(5.65 N-m).

Ground Cable:

Cable length: Not more than 70 feet (21.336 meters) one way.

Cable size: 6 AWG (minimum), stranded copper.
