Cisco ASR 5000 Series Installation Guide

Line Card Installation
▀ Chassis Slot Numbering and Assignments
▄ ASR 5000 Installation Guide
92
Chassis Slot Numbering and Assignments
The chassis has 32 rear-loaded slots for line cards. This allows for the installation of redundant components and
provides ample space for expanding the system.
There are two rows of slots on the rear of the chassis. The upper row of slots is labeled 17 through 32 from right to left.
The lower row of slots is labeled 33 through 48 from right to left.

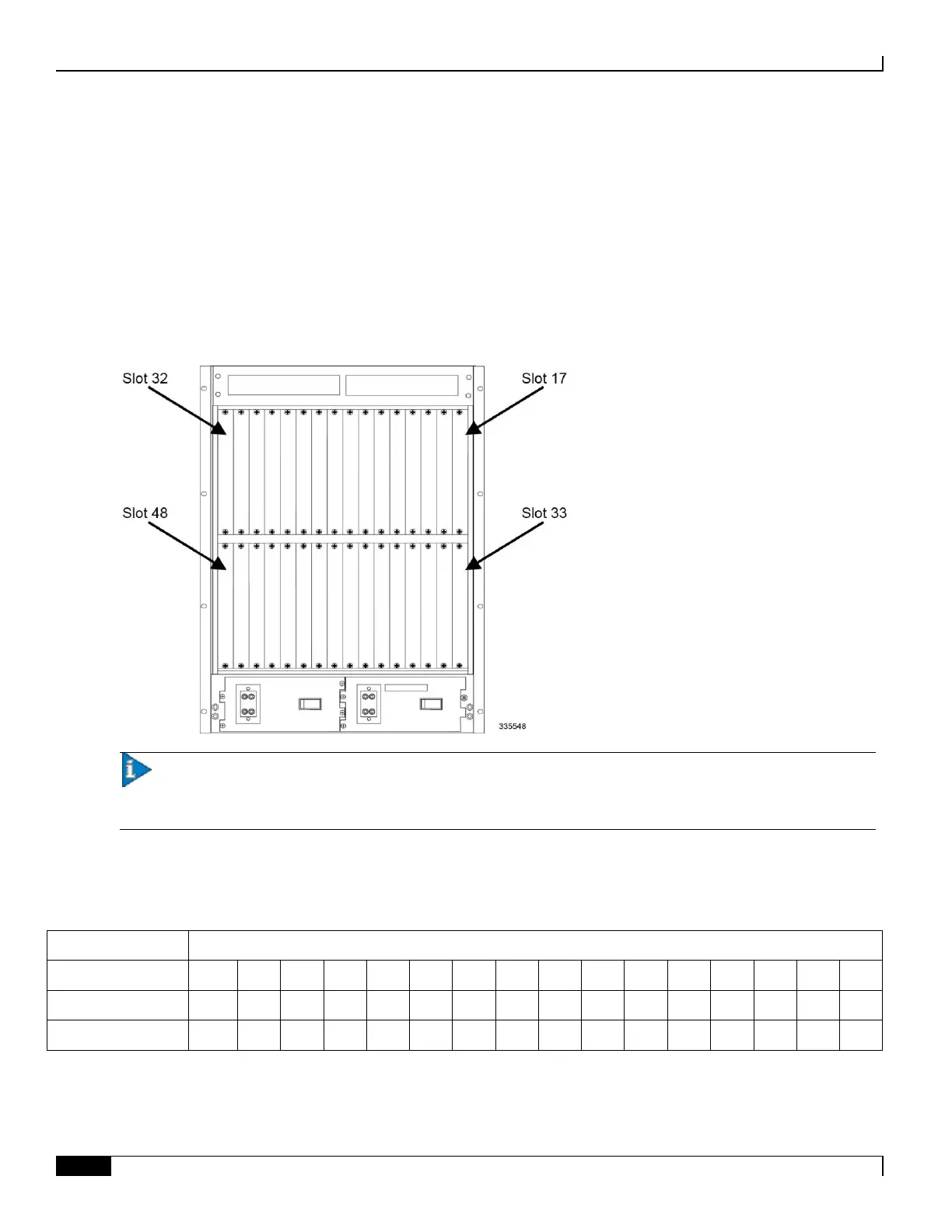

Figure 27. Chassis Slot Numbers (Rear)
Important: The 10 Gigabit Ethernet Line Card is a full-height line card that occupies the upper and lower slots in
the chassis. When referring to installed XGLCs, use the upper slot number only. Slot numbering for other installed half-
height cards is maintained: 17 to 32 and 33 to 48, regardless of the number of installed XGLCs
The following table shows the front slot numbers and their corresponding rear slot numbers.
Table 27. Front and Rear Slot Numbering Relationship
Position
Slot Number
Front
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Rear Top Slots
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
Rear Bottom Slots
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
