Applying Power and Verifying the Installation
â–€ Verifying the Installation
â–„ ASR 5000 Installation Guide

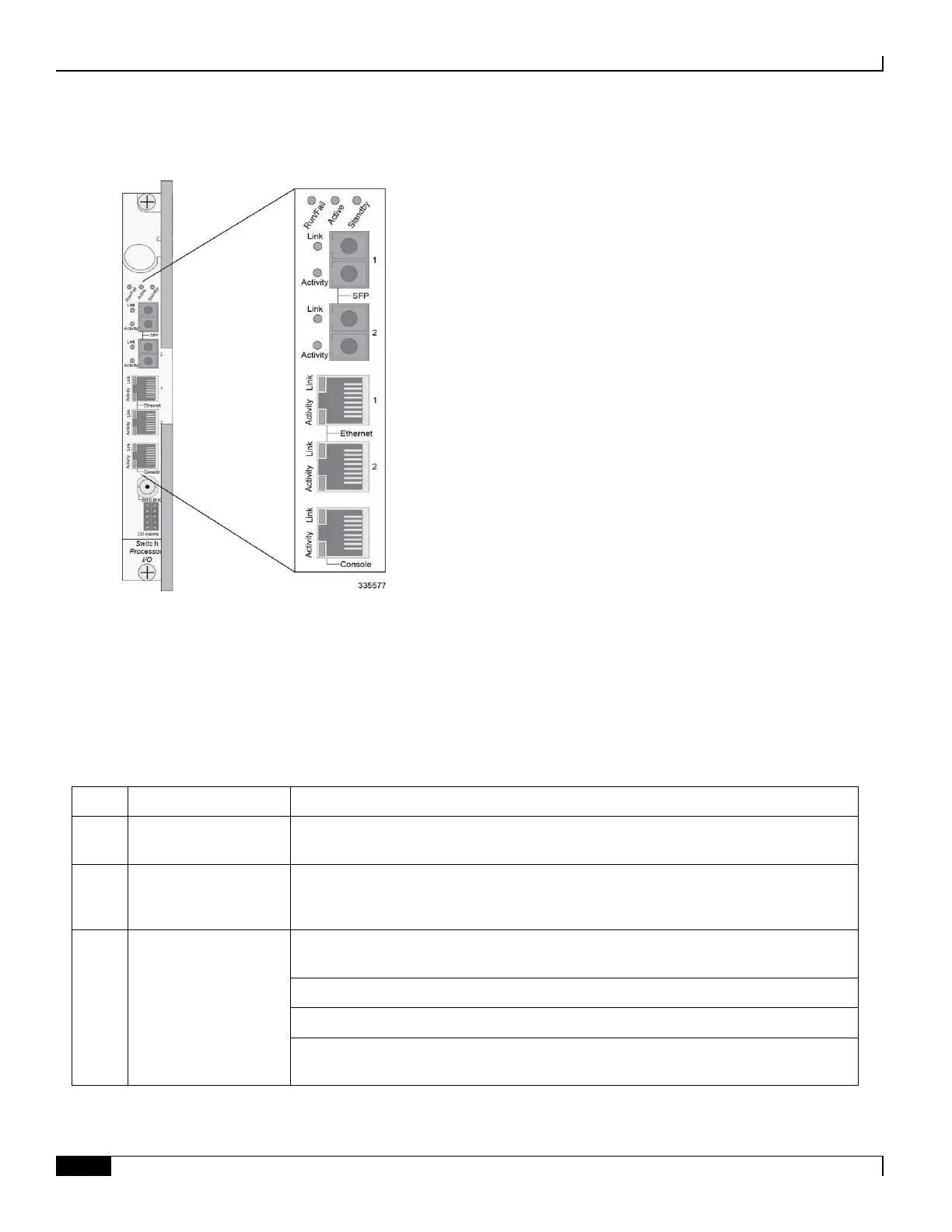

Figure 54. SPIO LEDs
SPIO Run/Fail LED States
The SPIO’s Run/ Fail LED indicates the overall status of the card. This LED is illuminated steady green for normal
operation.
If the LED is not green, use the troubleshooting information in the table to diagnose the problem.
Table 59. SPIO Run/Fail LED States
Card powered with no
errors detected
Card powered with
error(s) detected
Errors were detected during the POSTs. It is likely that the errors were logged to the
system's command line interface during the boot process.
Refer to the System Administration Guide for troubleshooting information.
Card is not receiving
power
Verify that the POWER LEDs on the PFUs are green. If they are not, refer to Checking
the LED on the PFU for troubleshooting information.
Verify that the power source is supplying ample voltage and current to the chassis.
Verify that the card is properly installed per the instructions in this document.
If all of the above suggestions have been verified, it is possible that the SPIO is not
functional. Please contact your service representative.
