Cabling the Switch Processor Input/Output Line Card
SPIO Interfaces ▀
ASR 5000 Installation Guide ▄
107
E1 BNC BITS Interface Version
The figure and table that follow provide information on the various interfaces in this version of the SPIO.

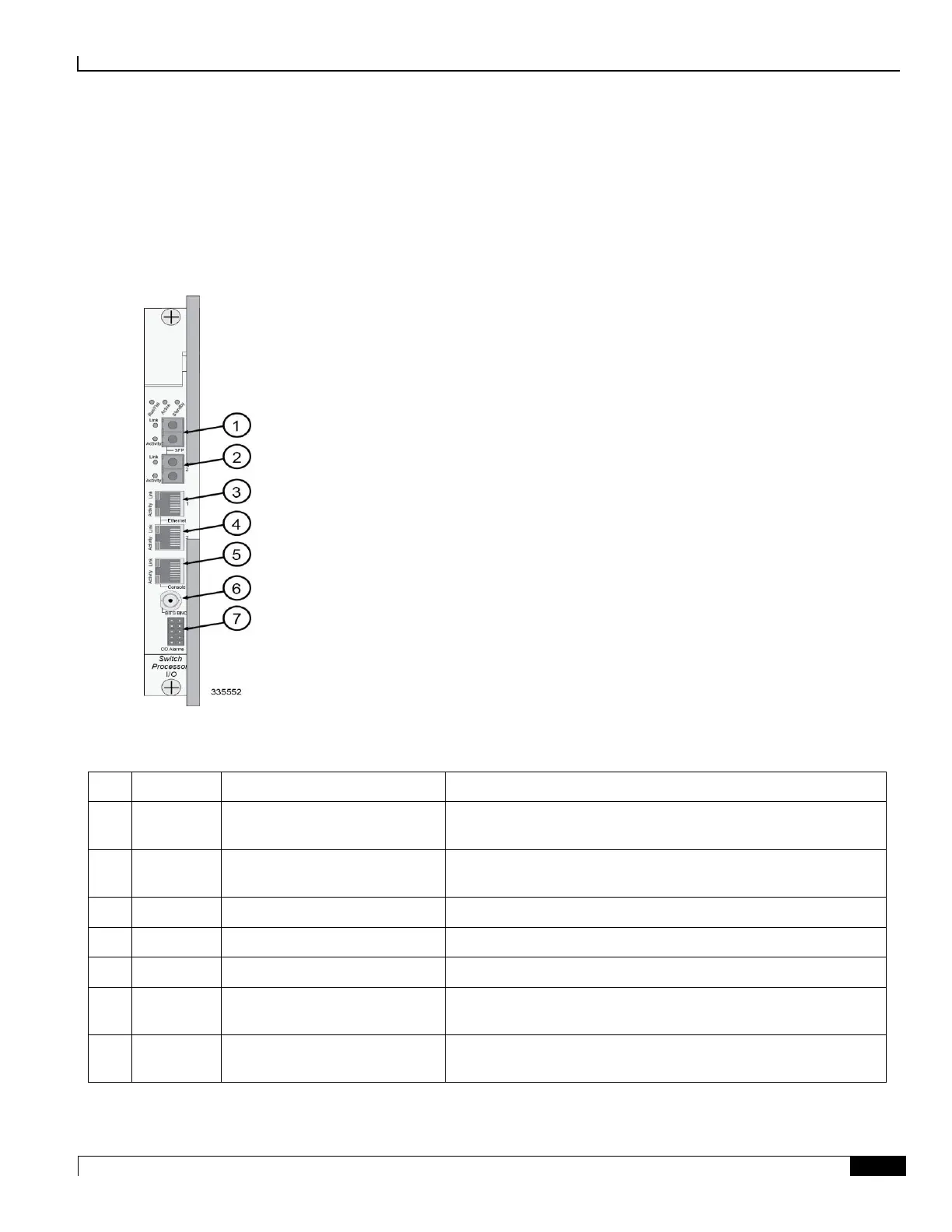

Figure 28. SPIO BITS BNC Interface Callouts
Table 30. SPIO BITS BNC Interface Descriptions
Item
Label
Connector Type
Description
1
SFP 1
Optical fiber, Small Form-factor
Pluggable
Gigabit Ethernet interface for connecting to management LAN
2
SFP 2
Optical fiber, Small Form-factor
Pluggable
Gigabit Ethernet interface for connecting to management LAN
3
Ethernet 1
RJ-45
10/100/1000 Ethernet interface for connecting to management LAN
4
Ethernet 2
RJ-45
10/100/1000 Ethernet for connecting to management LAN
5
Console
RJ-45
RS-232 interface for local administration of the system
6
BITS BNC
75W BNC
Building Integrated Timing Supply (BITS) interface for analog E1
clock source [software selectable]
7
CO Alarms
10-pin Molex
Isolated dry-contact relay interfaces for connection to Central
Office (CO) alarm monitoring panel
