Cisco ASR 5000 Series

Preparing a Full-Height Line Card Slot
▀ Remove the Half-Height Card Guide
▄ ASR 5000 Installation Guide
294
Remove the Half-Height Card Guide
You must next remove the half-height card guide separating the exposed upper and lower chassis slots.

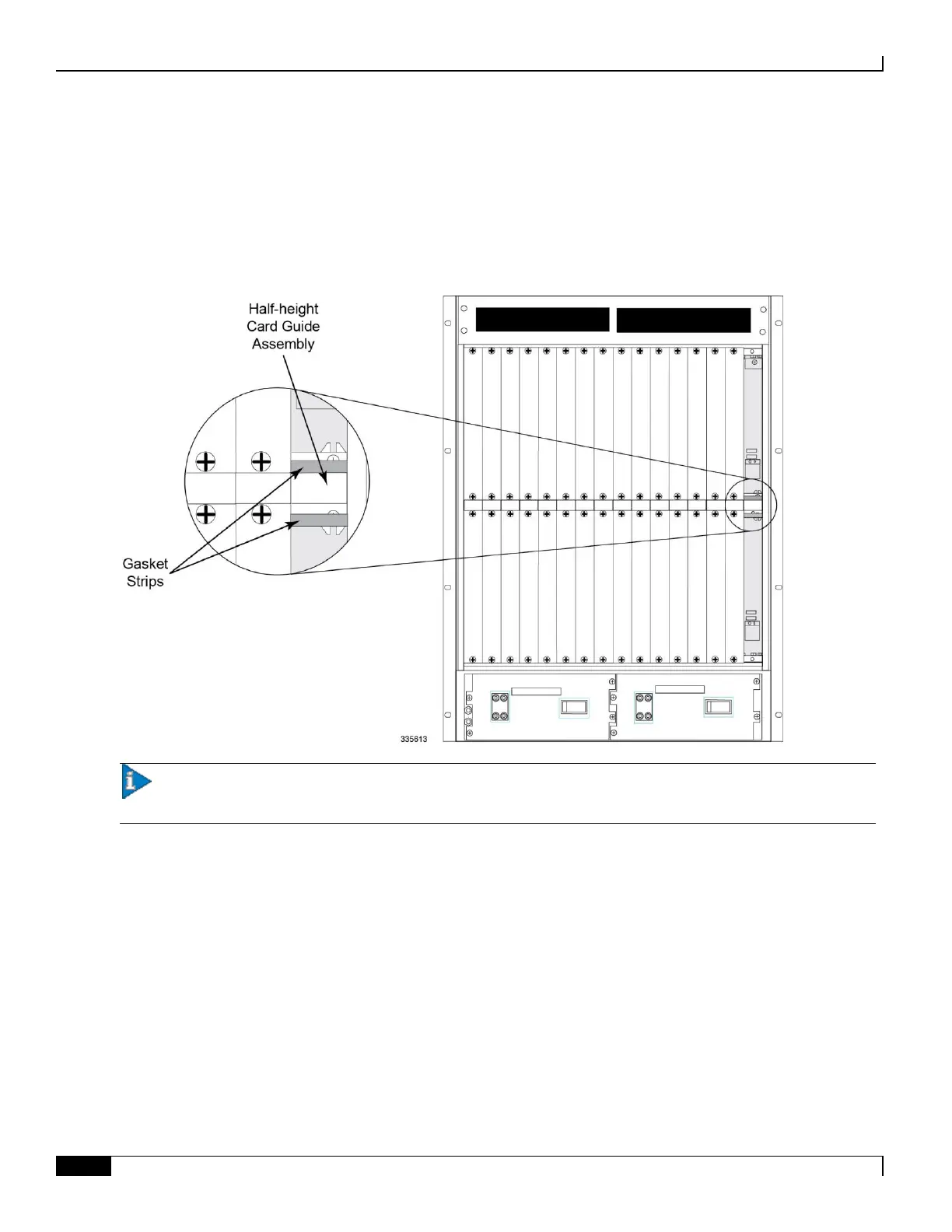

Figure 69. Half-height Card Guide
Important: Save all of the items you remove in this step in the event that you wish to re-populate these slots with
half-height cards at a later time.
