Preparing a Full-Height Line Card Slot

Remove the Half-Height Card Guide ▀

ASR 5000 Installation Guide ▄

295

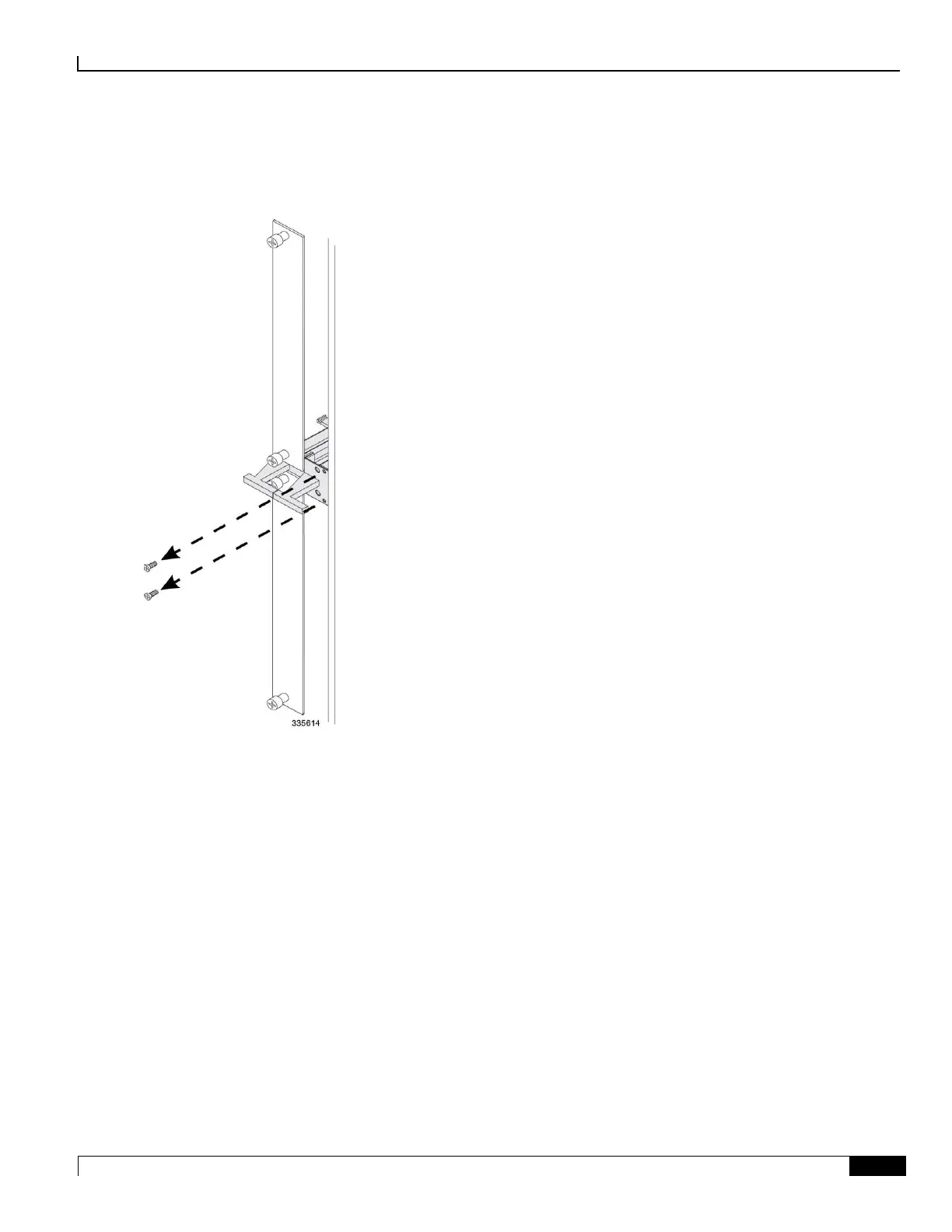

Step 1 Remove the two gasket strips to allow access to the screws beneath. Save the gasket strips.

Step 2 Using a Phillips #1 screwdriver, loosen the two screws that secure the half-height card guide ejector rail/cap. Save the

screws for later use.
