Preparing a Full-Height Line Card Slot

▀ Remove the Half-Height Card Guide

▄ ASR 5000 Installation Guide

296

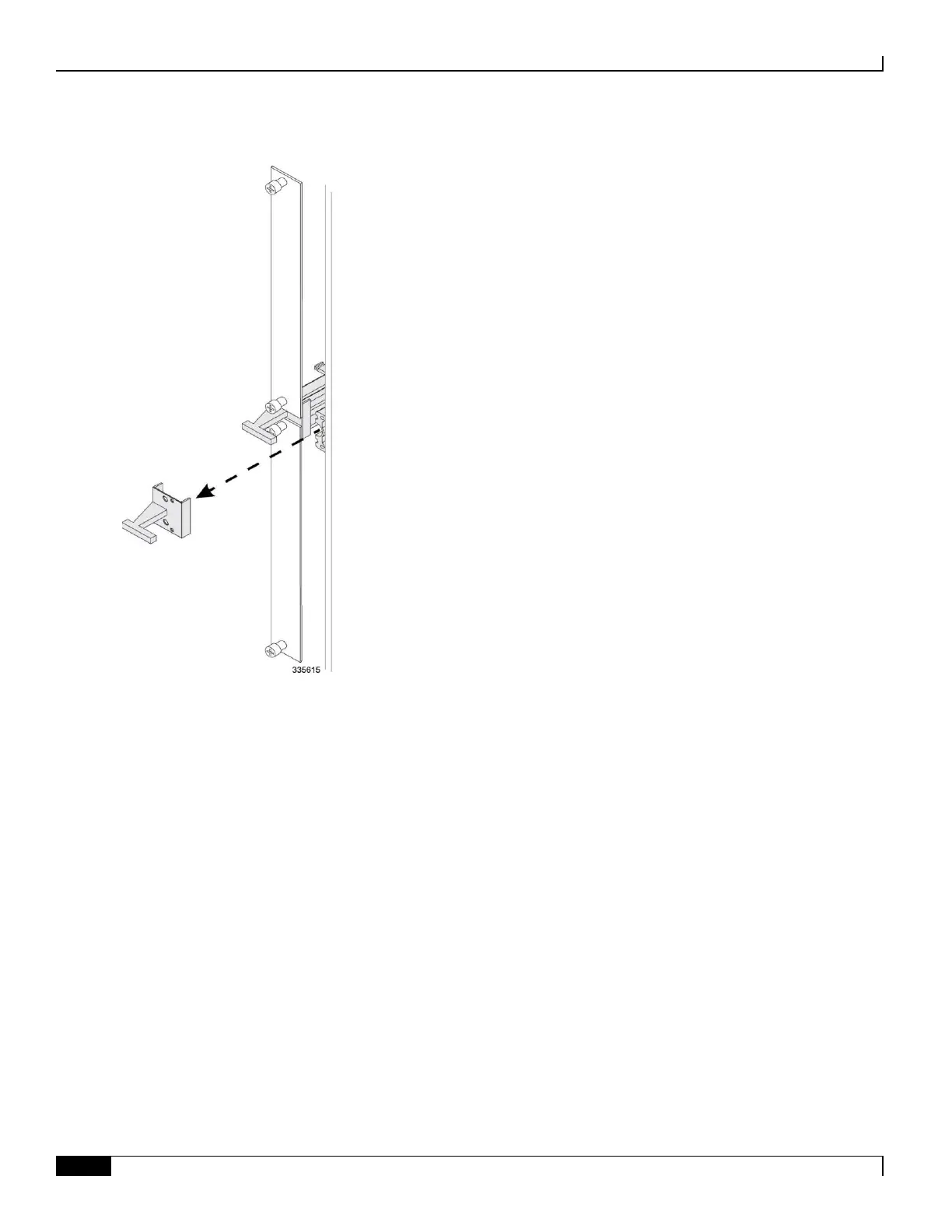

Step 3 Remove the half-height card guide ejector rail/cap.
