Preparing a Full-Height Line Card Slot

Remove the Half-Height Card Guide ▀

ASR 5000 Installation Guide ▄

297

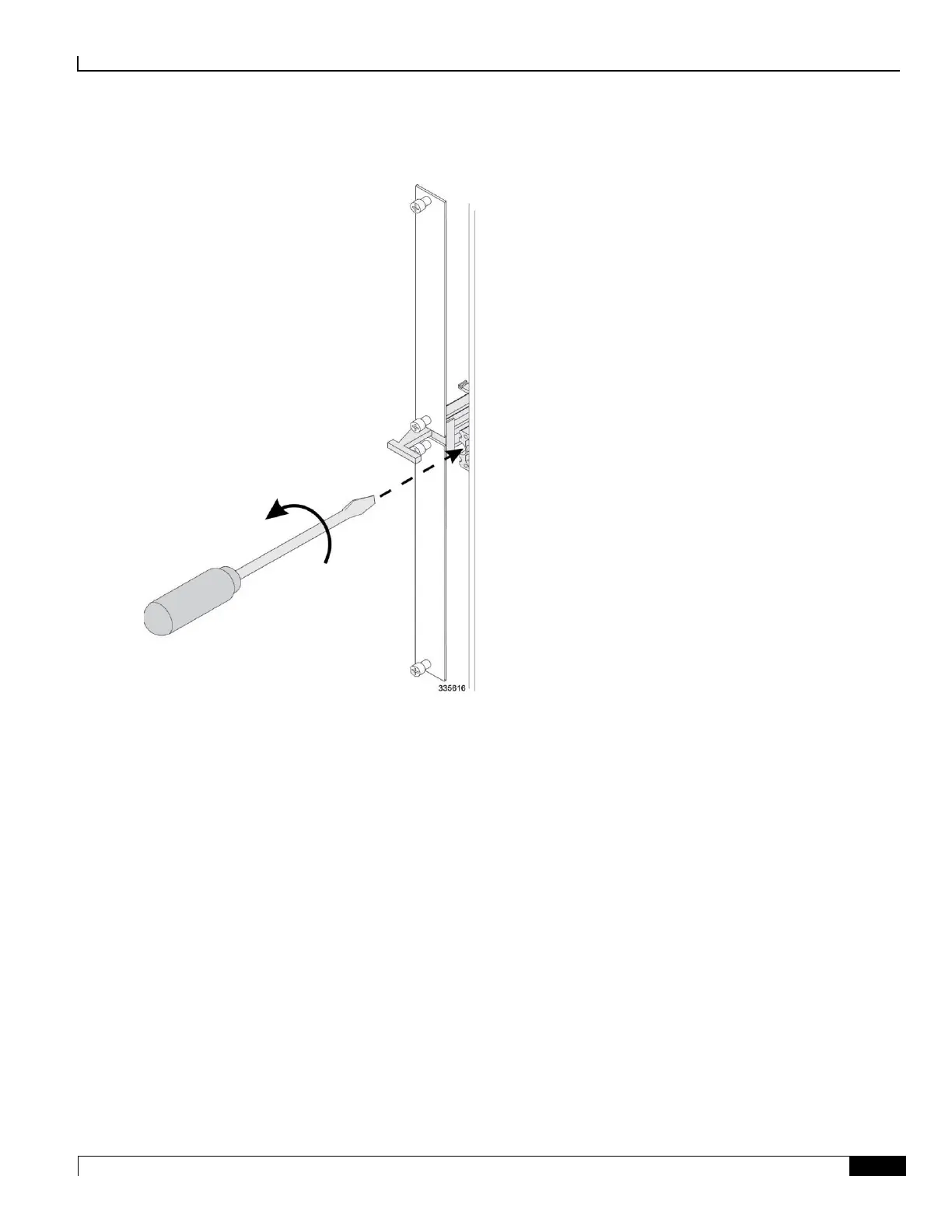

Step 4 Use the screwdriver provided with the full-height line card to loosen the screw that secures the half-height card guide to

the chassis mid-plane.
