Cisco ASR 5000 Series Installation Guide

Cabling the Switch Processor Input/Output Line Card
▀ Connecting to the Serial Console Port
▄ ASR 5000 Installation Guide
114
DB-9 to RJ-45 Adapter
SPIOs are shipped with an RJ-45-to-RJ-45 serial cable and an RJ-45-to-DB-9 adapter. The DB-9S conductor on the
adapter is female. If you use the cable and adaptor together, refer to the following figure and table.
Important: If the console cable is to be used in a null-modem configuration, the workstation or terminal server
must provide a carrier-detect signal.

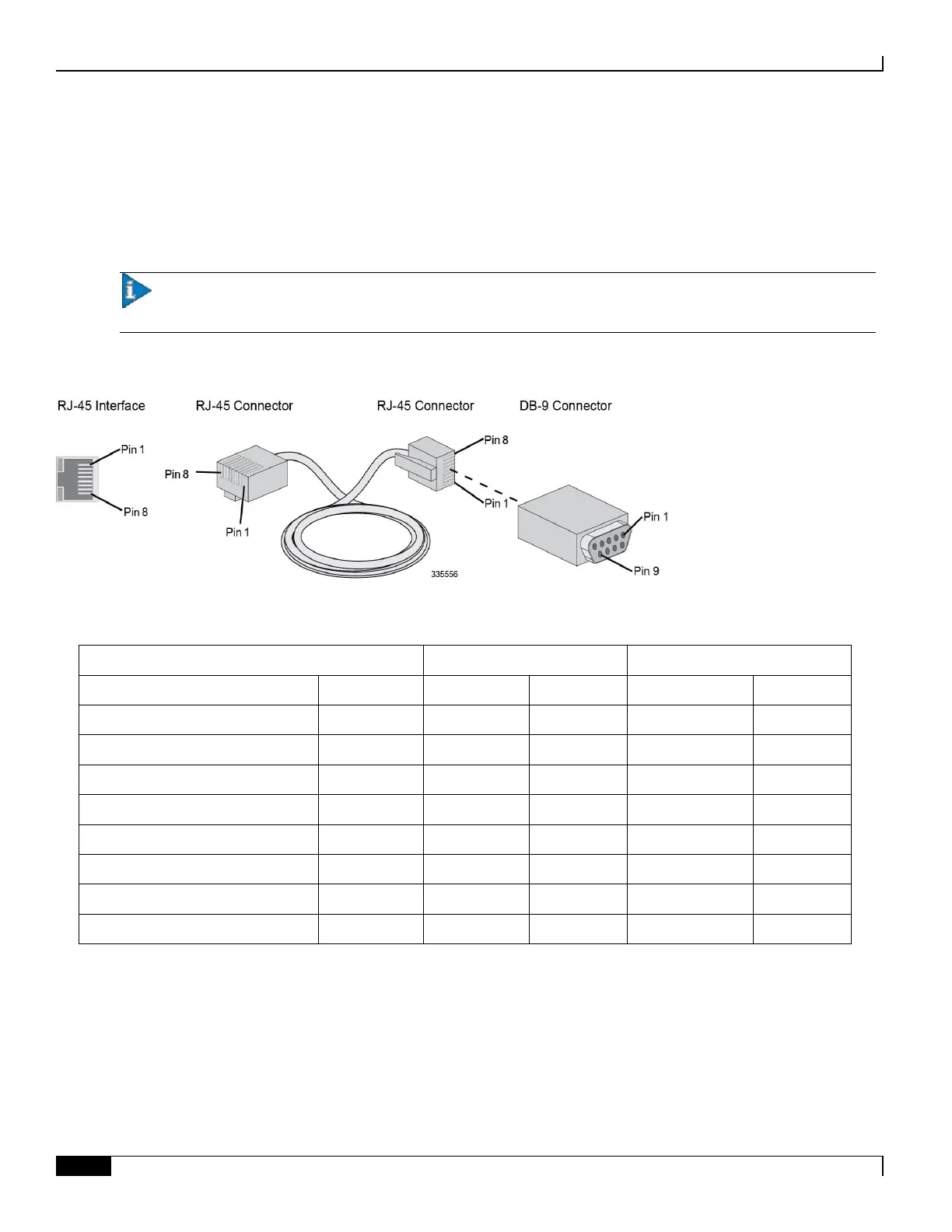

Figure 33. SPIO Console Cable and DB-9 Adapter Pinouts
Table 35. SPIO Console Cable Pinouts
SPIO Console Port Interface
Console Cable
RJ-45-to-DB-9 Adapter
Signal
Signal Type
RJ-45 Pin
RJ-45 Pin
DB-9S Pin
Signal
Clear to Send (CTS)
Input
1
1
7
RTS
Data Set Ready (DSR)
Input
2
2
4
DTR
Receive Data (RxD)
Input
3
3
3
TxD
Signal Ground (SGND)
N/A
4
4
5
SGND
Ready To Send (RTS)
Output
5
5
8
CTS
Transmit Data (TxD)
Output
6
6
2
RxD
Data Carrier Detect (DCD)
Input
7
7
1
DCD
Data Terminal Ready (DTR)
Output
8
8
6
DSR
