Cisco ASR 5000 Series Installation Guide

ASR 5000 Hardware Platform Overview
Chassis Description ▀
ASR 5000 Installation Guide ▄
21
Chassis Description
Slot Numbering
The ASR 5000 chassis features a 48-slot design with 16 front-loading slots for application cards and 32 rear-loading
slots (16 upper and 16 lower) for line cards. ASR 5000.

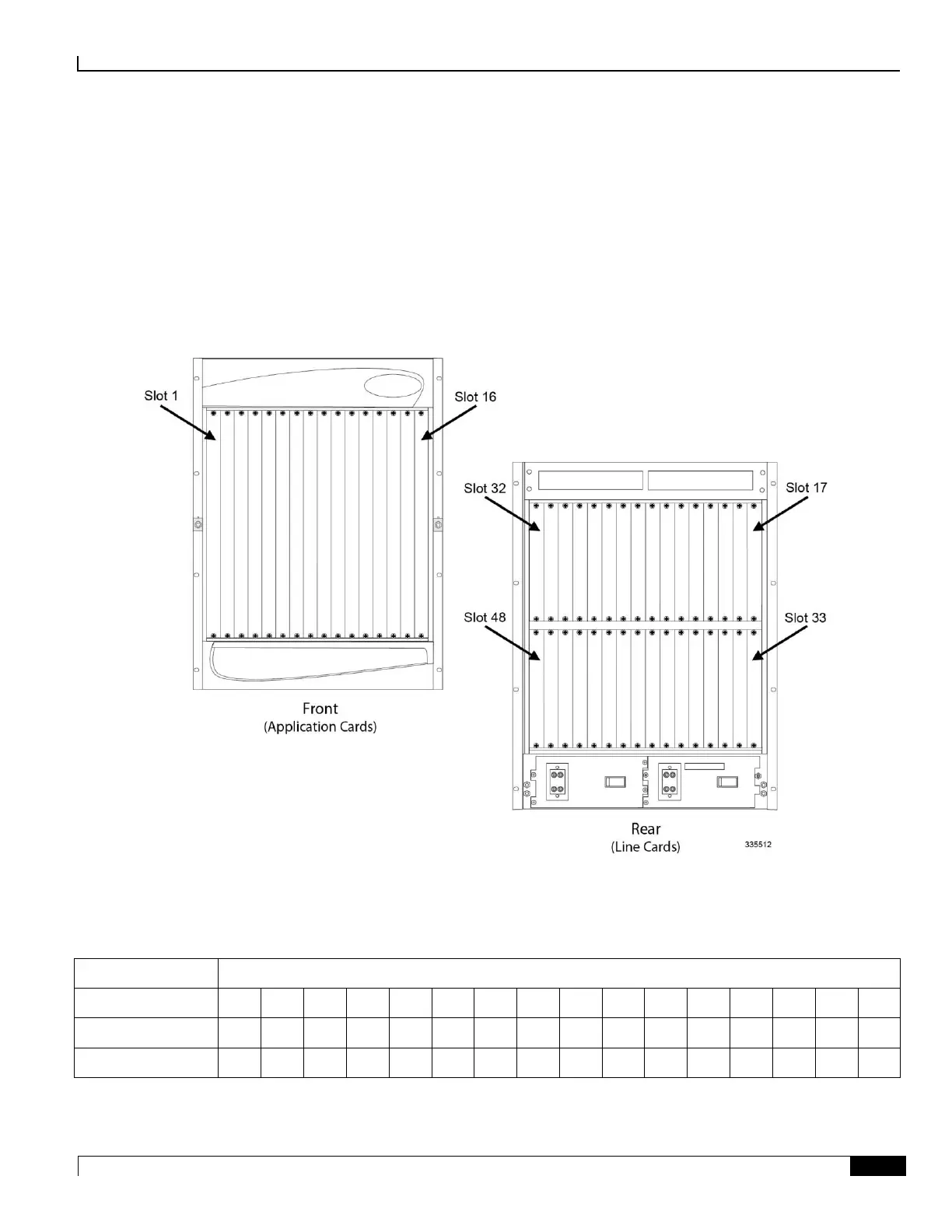

Figure 3. Chassis Slot Numbers
The following table shows the front slot numbers and their corresponding rear slot numbers.
Table 3. Front and Rear Slot Numbering Relationship
Position
Slot Number
Front
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Rear Top Slots
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
Rear Bottom Slots
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
