Adding Application and Line Cards to an Existing Installation
Adding Application Cards ▀
ASR 5000 Installation Guide ▄
199

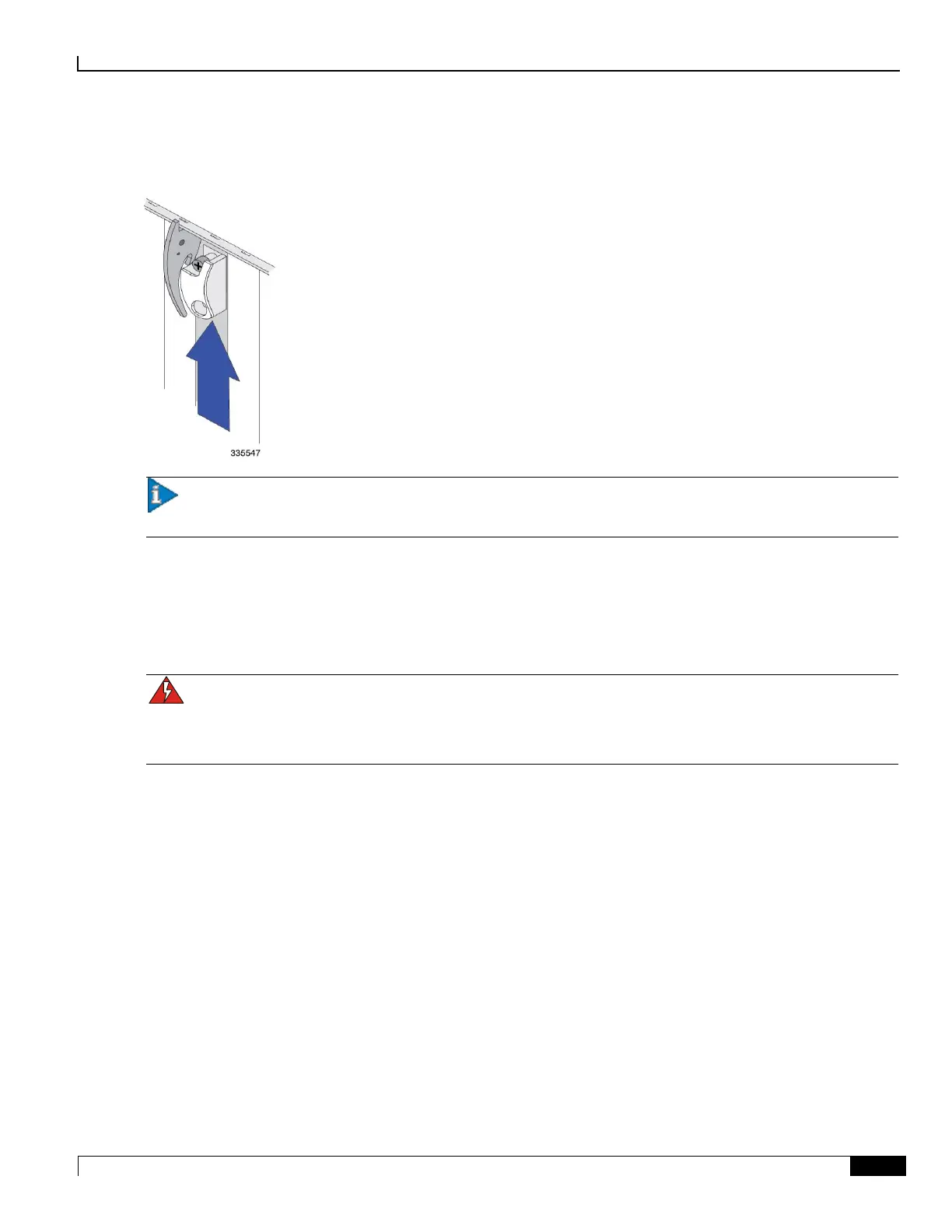

Step 7 Slide the interlock switch on the front panel of the application card upward to lock the ejector tab in place. The flange
on the left-side of the interlock switch prevents movement of the ejector tab when raised completely.
Important: You must slide the interlock switch upward before securing the card’s top screw to the mounting
rail.
Step 8 Use a Phillips #2 screwdriver to tighten the screws at the top and bottom of the application card’s front panel to secure
the card to the chassis.
Step 9 Repeat step 1 through step 7 for every application card you are installing.
Step 10 Install blanking panels over any unused chassis slots.
WARNING: To reduce the risk of electric shock and ensure proper ventilation, blanking panels must be used to
cover any chassis slot not occupied by an application card. Leere Steckplaetze muessen mit der dafuer vorgesehenen
Abdeckplatte geschlossen werden, um die Luftzirkulation innerhalb des Geraets zu gewaehrleisten und um einen
elektrischen Schlag zu vermeiden.
Step a Position the blanking panel over the unused chassis slot(s).
Step b Position the blanking panel over the unused chassis slot.
Step c Use a Phillips #2 screwdriver to tighten the screws at the top and bottom of the blanking panel to
secure the panel to the chassis.
Step d Repeat step a through step c for any additional unused chassis slots.
Step 11 Proceed to the next sections of this chapter for instructions on adding the respective line card(s) for every application
card just installed.
