Removing and Installing SMC PC Cards

Installing PC Cards ▀

ASR 5000 Installation Guide ▄

209

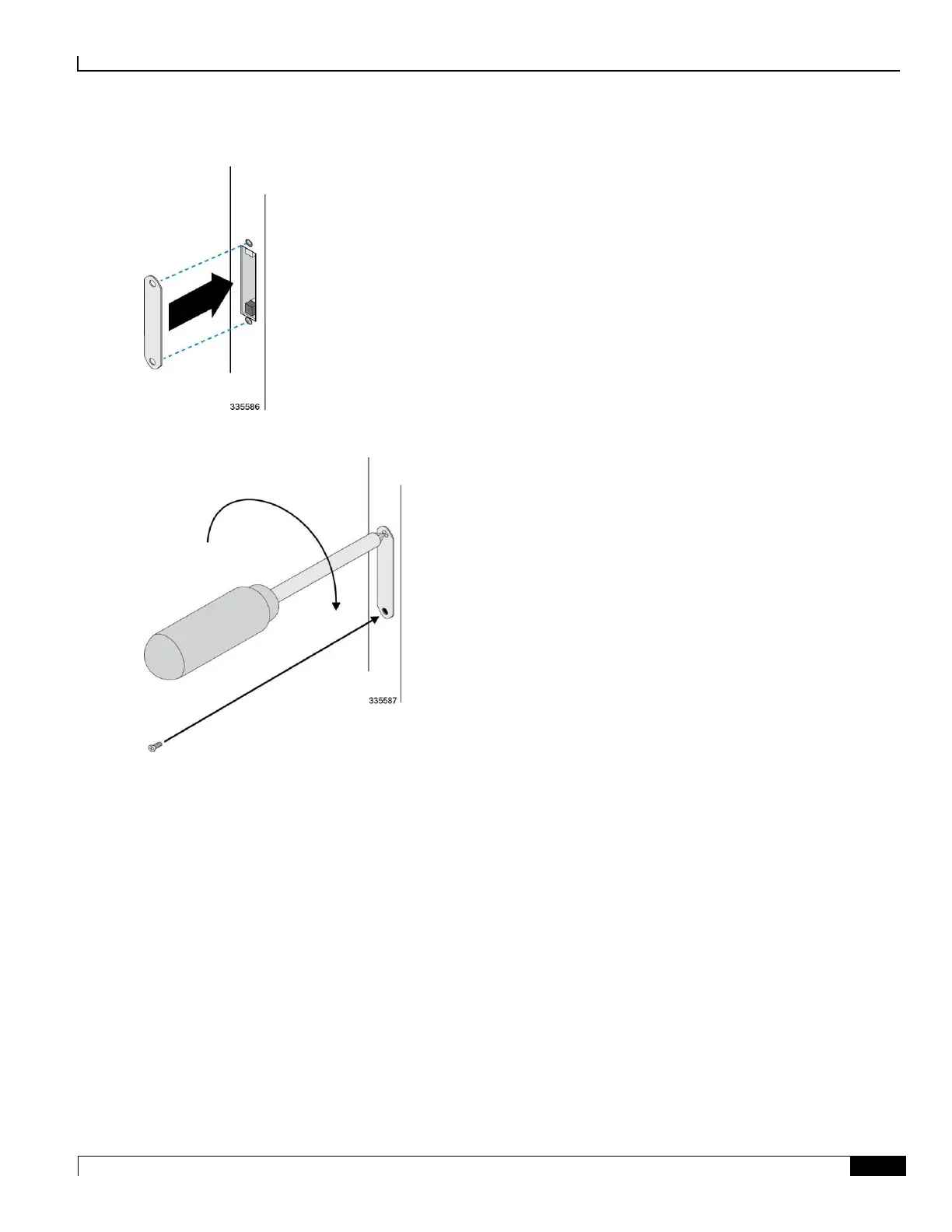

Step 5 Align the PC Card slot cover over the open slot.

Step 6 Use the two screws that you removed in step 2 and a Phillips #1 screwdriver to secure the PC Card slot cover.
