Replacing a Power Filter Unit

Removing the Failed PFU ▀

ASR 5000 Installation Guide ▄

223

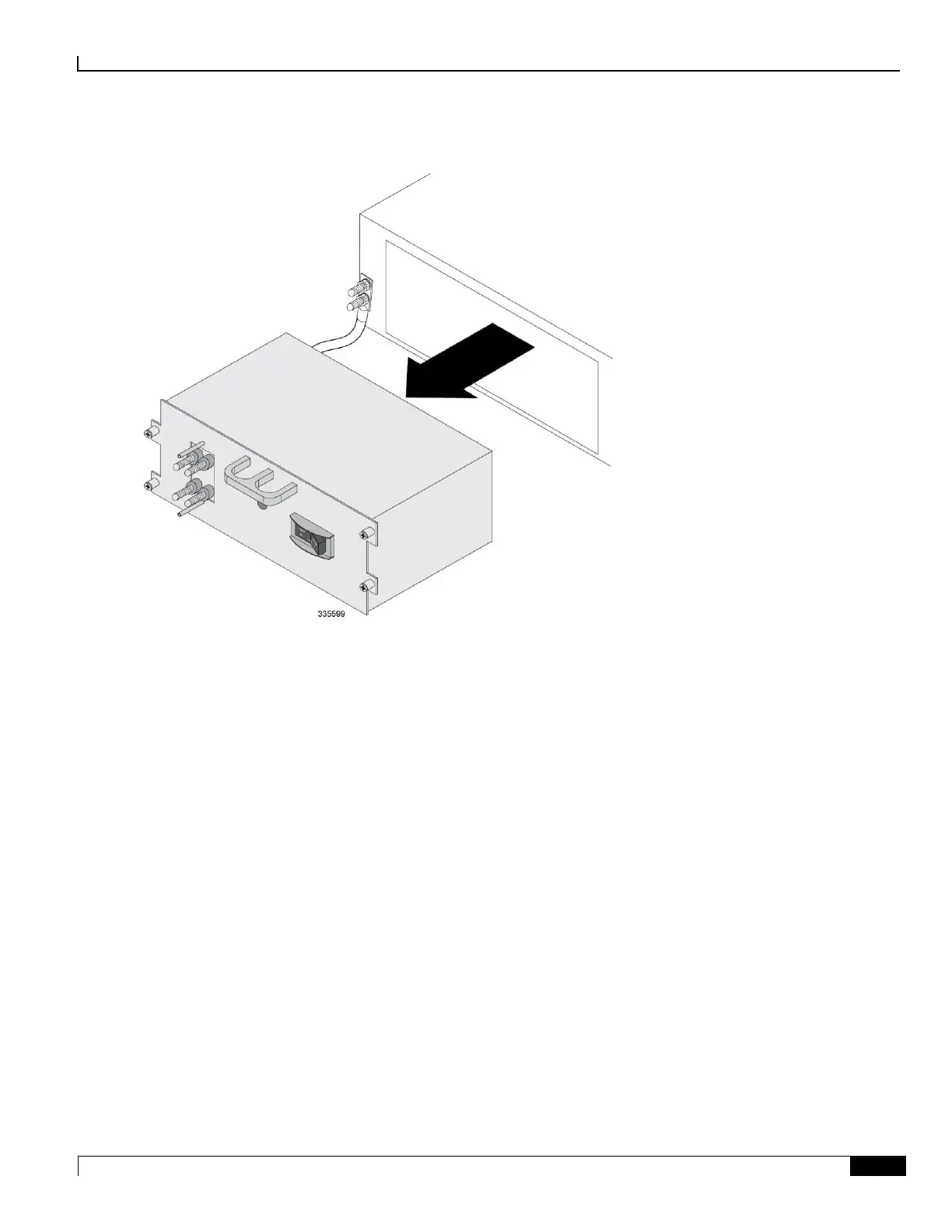

Step 7 Grasp the handle on the PFU and gently pull it toward you. The PFU should easily slide out of the chassis.

Step 8 Proceed to Installing the Replacement PFU.
