Replacing Line Cards

Removing the Line Card ▀

ASR 5000 Installation Guide ▄

253

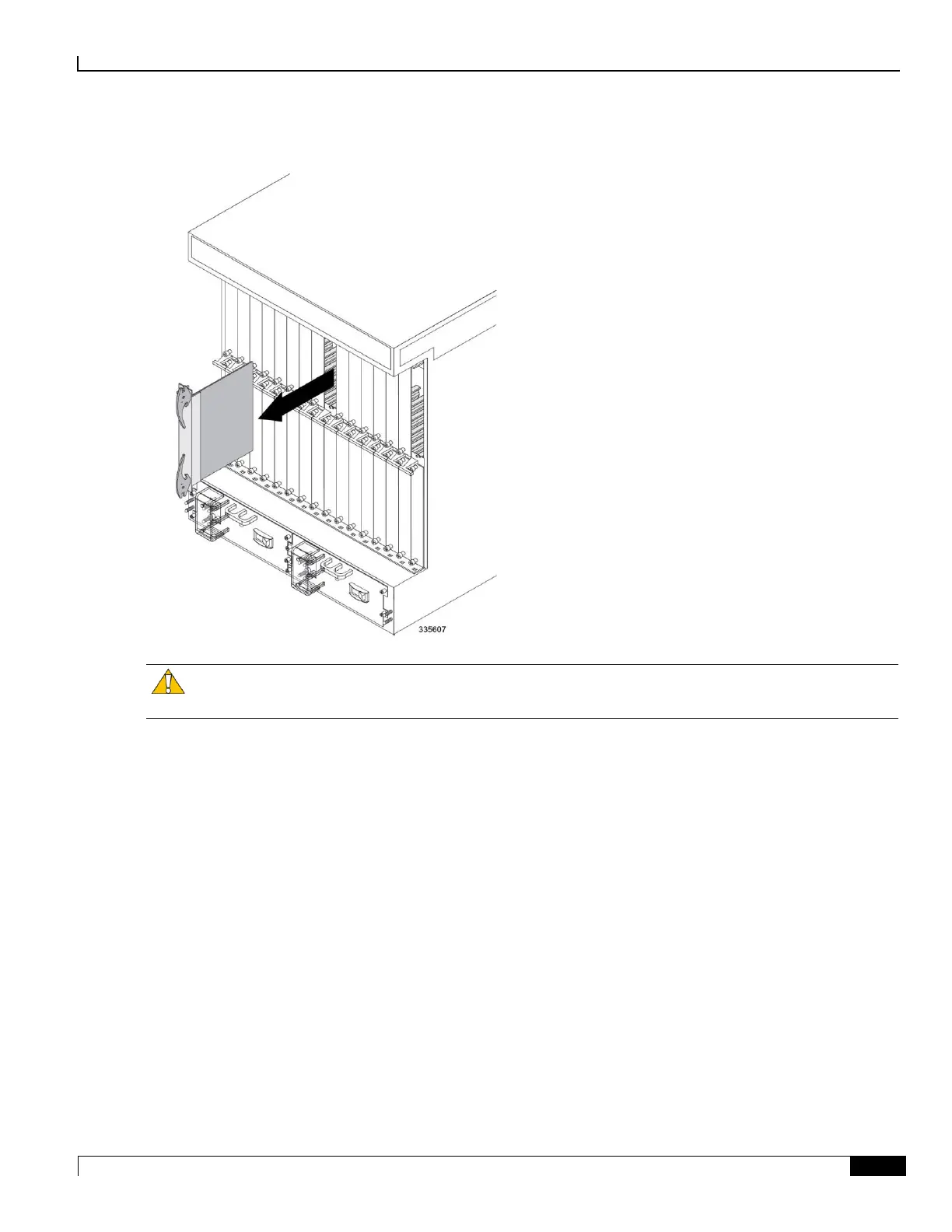

Step 5 Holding the card by its ejector levers, gently slide the card out of the chassis.

Caution: Do not leave chassis slots uncovered for an extended period of time. This reduces airflow through the

chassis and could cause it to overheat. Make sure that there is a card or blanking panel in every chassis slot at all times.
