RMA Shipping Procedures

▀ Packaging ASR 5000 Cards

▄ ASR 5000 Installation Guide

314

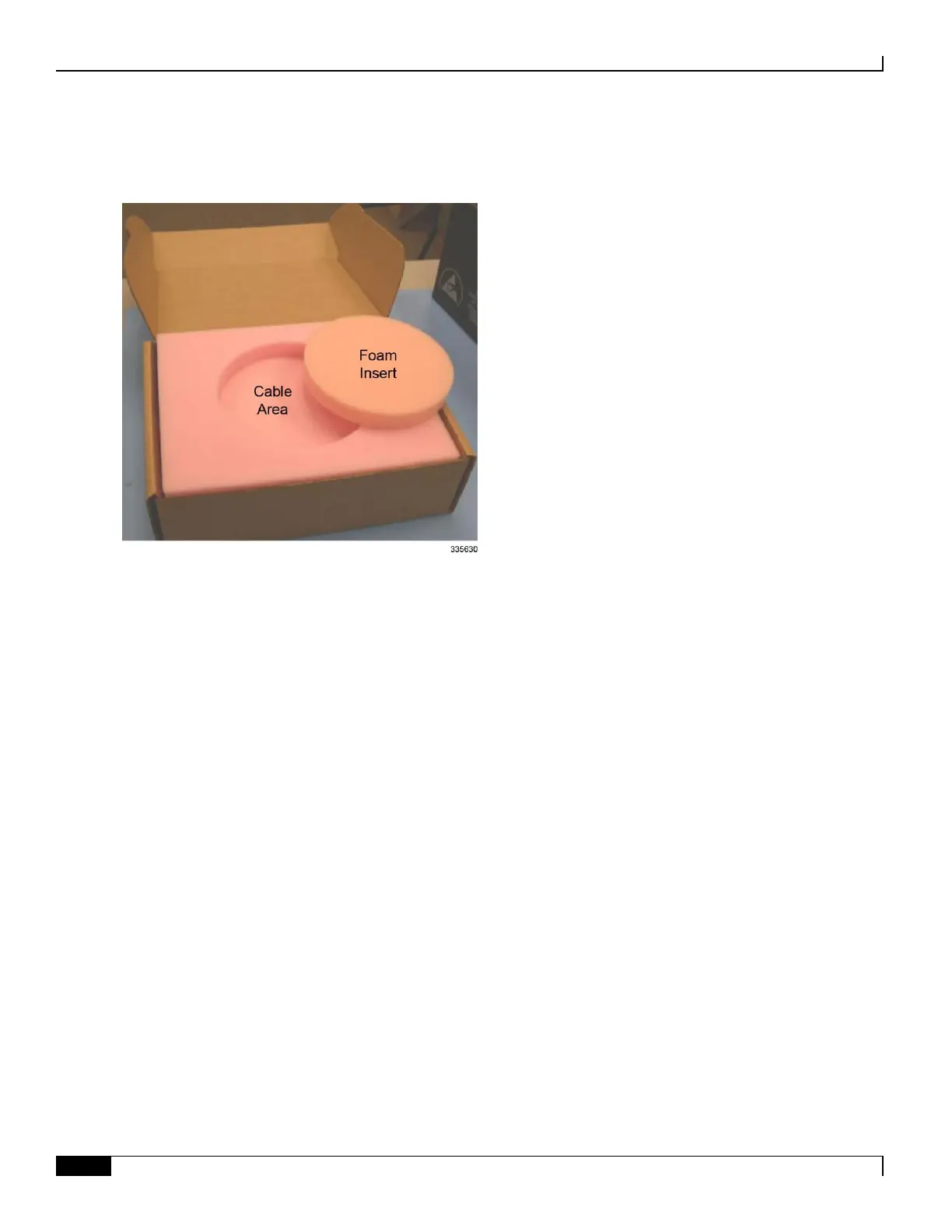

Step 4 If you are returning the cable assembly with a SPIO, remove the round insert from the top piece of foam and place the

cable assembly in the cutout.

Step 5 Close the carton and seal it with packaging tape. See Sealing the Shipment for additional information.

Step 6 Place the shipping label on the outside of the carton. See Labeling the Shipment for additional information.
