ASR 5000 Hardware Platform Overview
Application Cards ▀
ASR 5000 Installation Guide ▄
33

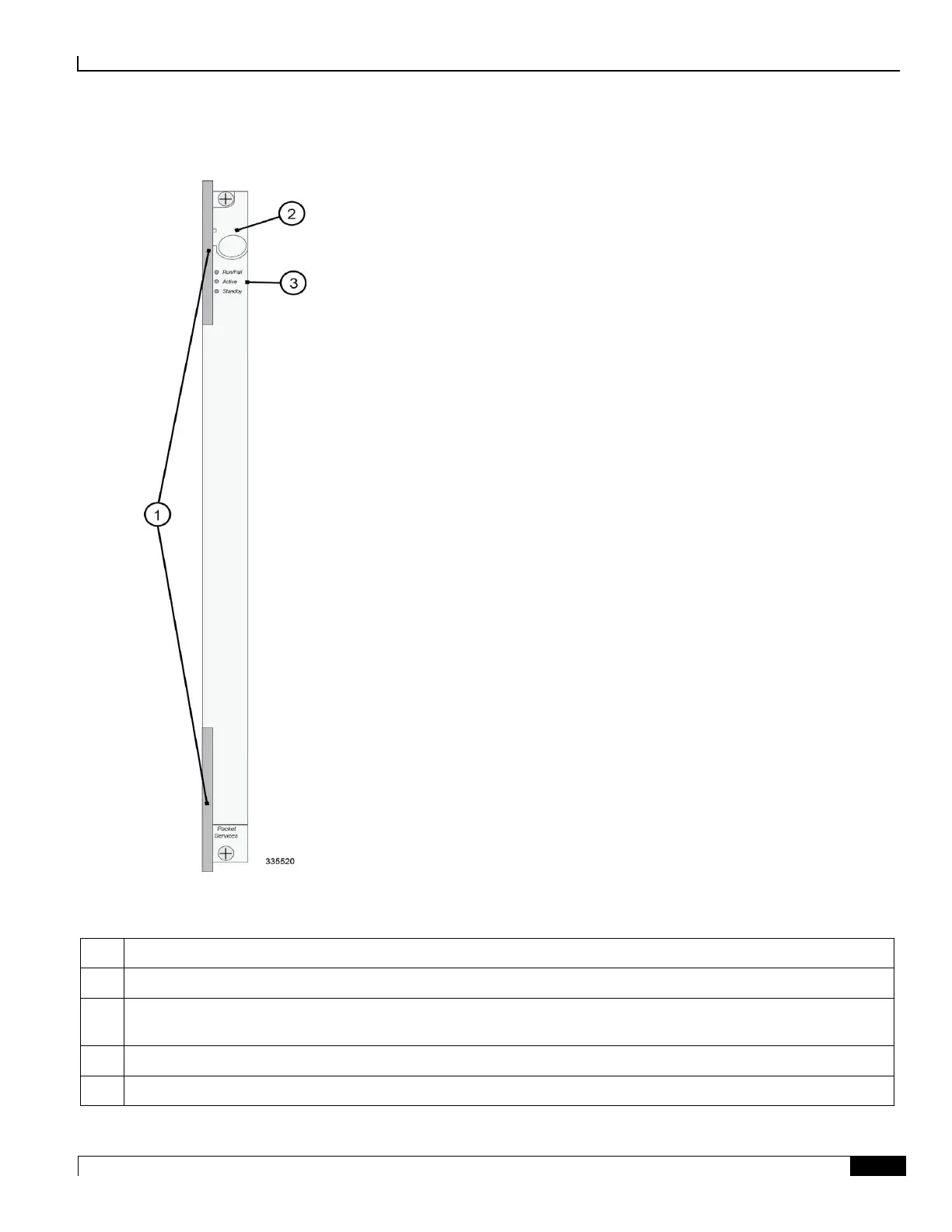

Figure 11. Packet Processing Card (Generic)
Table 7. Packet Processing Card (Generic) Callouts
Item
Description
1
Card Ejector Levers —Use to insert/remove card to/from chassis.
2
Interlock Switch —In its Down position the interlock switch notifies the system to safely power down the card prior to
its removal.
3
Card Level Status LEDs —Show the current status of the card.
4
Card Identification Label —Indicates the type of packet processing card. See the table at the end of this chapter.
