Displays information about the defined VRF
instances.
show ip vrf [brief | detail | interfaces] [vrf-name]
For more information about the information in the displays, see the Cisco IOS Switching Services Command
Reference, Release 12.4.
Configuration Examples for Multi-VRF CE
Multi-VRF CE Configuration Example
OSPF is the protocol used in VPN1, VPN2, and the global network. BGP is used in the CE to PE connections.
The examples following the illustration show how to configure a switch as CE Switch A, and the VRF
configuration for customer switches D and F. Commands for configuring CE Switch C and the other customer
switches are not included but would be similar. The example also includes commands for configuring traffic
to Switch A for a Catalyst 6000 or Catalyst 6500 switch acting as a PE router.

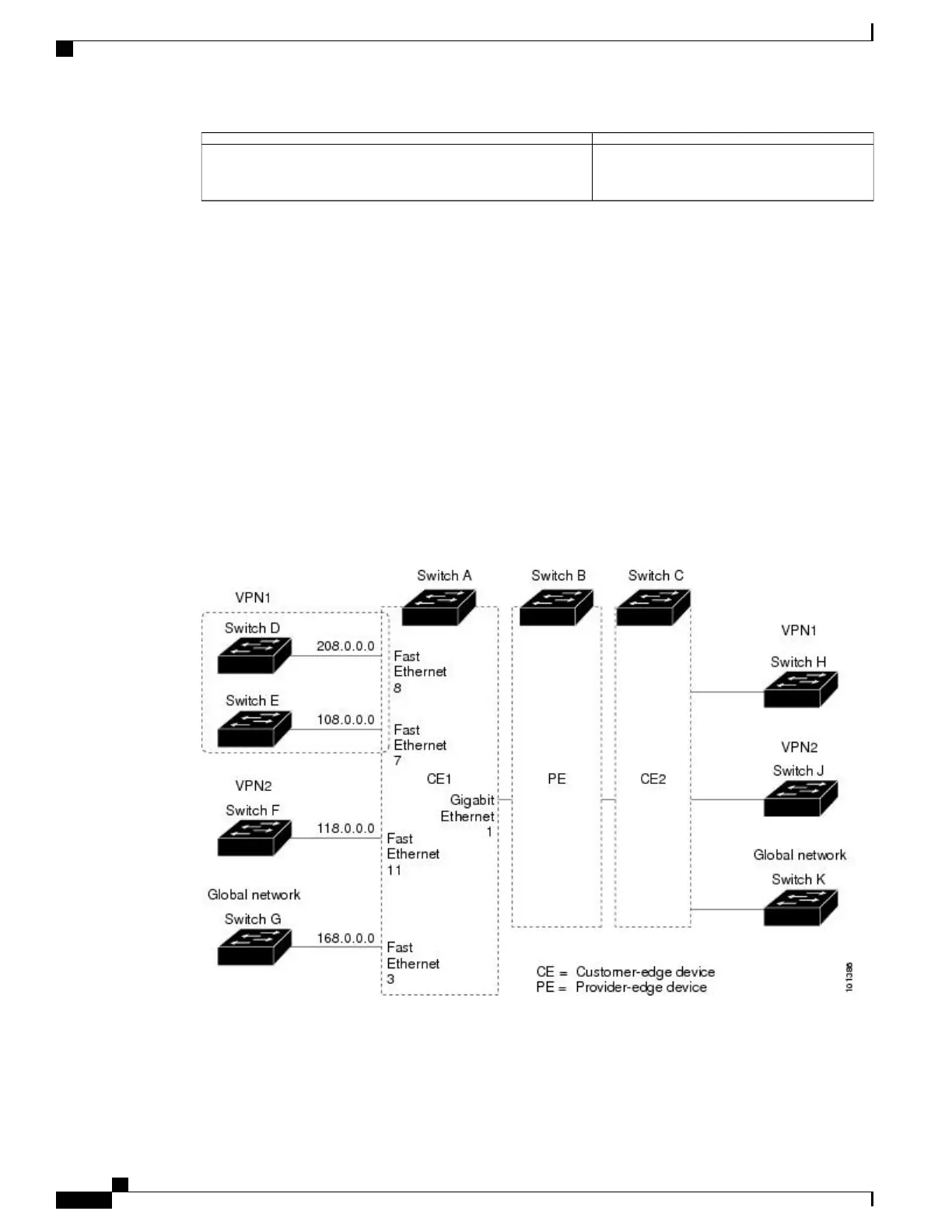

Figure 8: Multi-VRF CE Configuration Example
On Switch A, enable routing and configure VRF.
Device# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Device(config)# ip routing
Routing Configuration Guide, Cisco IOS XE Everest 16.6.x (Catalyst 9500 Switches)
176
Configuring IP Unicast Routing
Configuration Examples for Multi-VRF CE
