Citrix SD-WAN Platforms
• A copper Ethernet (RJ45) Port called the Lights out Management (LOM) port labeled lights out
management and 0/1. You can use this port to remotely monitor and manage the appliance
independently of the appliance’s soware.
• A copper Ethernet(RJ45) management port, labeled 0/2. Thismanagementport cannotbe used
for system administration functions. This port is reserved for future use.

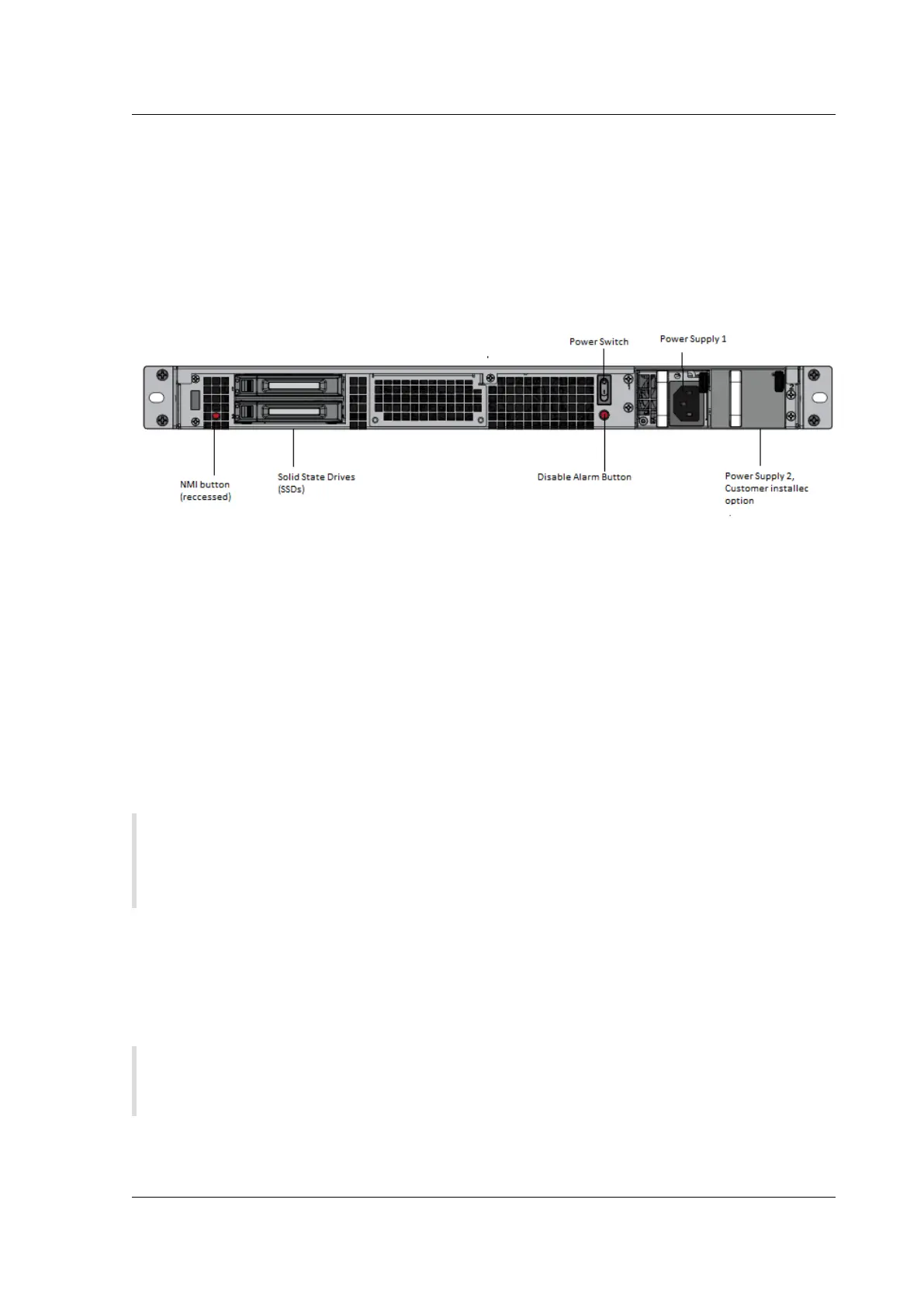

Figure 2. Citrix SD-WAN 2100-SE appliance, back panel
The following components are visible on the back panel of the SD-WAN 2100-SE appliance:
• 240 GB removable solid-state drive and 1 blank slot.
• Power switch, which switches power to the appliance on or o. Press the switch for five seconds
to switch o the power.
• Non-maskable interrupt (NMI) button, for use at the request of Technical Support to produce a
core dump. Use a pen, pencil, or other pointed object to press the red button, which is required
to prevent unintentional activation.
• Single power supply, rated at 450 watts, 100–240 volts.
Convert 2100 SE Appliance to 2100 PE Appliance
Important
To use PE functionality, the 2100 appliance needs to have SD-WAN release 9.3 or higher soware
version. The SD-WAN release 9.3 and higher soware release versions support 2100 PE.
• 2100 SE ships with only one SSD (240 GB) and one blank carrier.
• If you want to upgrade to a PE appliance, you can order the kit. The kit includes an extra SSD
(480 GB) and appropriate license for PE.
• Upon receiving the kit, install the new 480 GB drive in the empty slot (leaving original SSD as is).
Upgrade to SD-WAN release 10.0, and apply new PE license.
Note
You can also convert a 2100 SE appliance to 2100 PE appliance using the USB reimage utility.
© 1999-2021 Citrix Systems, Inc. All rights reserved. 106
