Citrix SD-WAN Platforms
• Dual power supplies (either AC or DC), each with max power of 850 watts, 100–240 volts.
Citrix SD-WAN 5100 SE
June 25, 2020
The SD-WAN 5100 SE is a 2U appliance. Each model has two 10-core processors for a total of 20 phys-
ical cores (40 cores with hyper-threading), and 128 GB (GB) of memory. For latest performance and
bandwidth capacity details, please see also the latest datasheet that gets updated more regularly at:
citrix.com; datasheet.

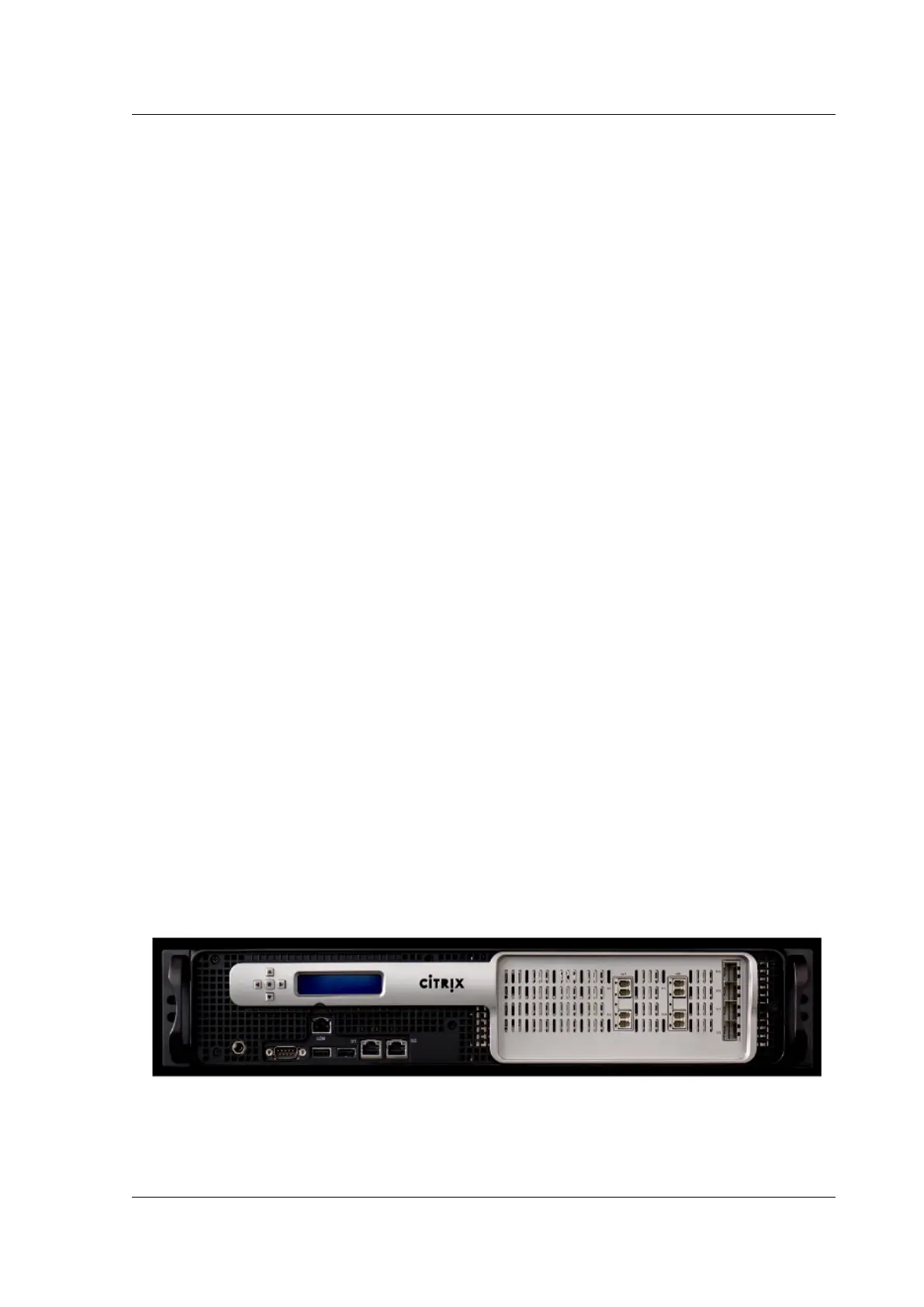

The SD-WAN 5100 SE appliance front panel has the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called lights out management (LOM) port. You
can use this port to remotely monitor and manage the appliance independently of the appli-
ance’s soware.
• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45). These ports are used to
connect directly to the appliance for system administration functions.
• Eight 10G ports: 4 LC fiber ports with bypass, 4 SFP+ ports (no bypass).
• Two USB ports (reserved for a future release).
The following components are visible on the back panel of the SD-WAN 5100 SE appliance:
• 2 X 1 TB removable hard disk drive.
• Power switch, which turns o power to the appliance, as if you were to unplug the power supply.
Press the switch for five seconds to turn o the power.
• Disable PS alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to mute the power alarm from sounding when you have plugged the ap-
pliance into only one power outlet or when one power supply is malfunctioning and you want
to continue operating the appliance until it is repaired.
• Dual redundant, hot-swappable power supplies.
