Citrix SD-WAN Platforms
Citrix SD-WAN 1000 SE
June 19, 2020
The SD-WAN 1000-SE with platform has a quad-core processor and 32 GB of memory. This platform
has a bandwidth of up to 100 Mbps.

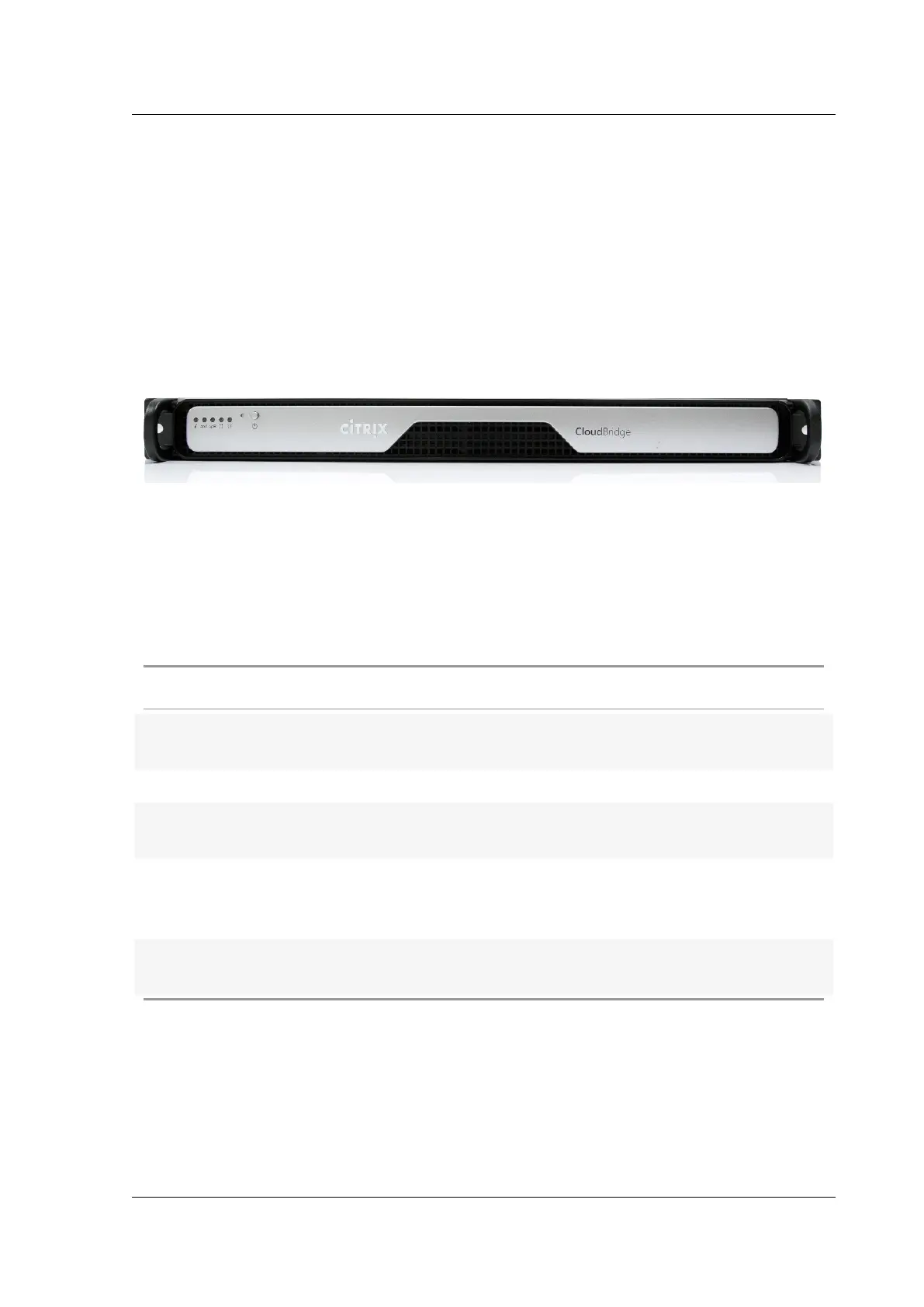

The following figure shows the front panel of an SD-WAN 1000-SE appliance.
Figure 1. Citrix SD-WAN 1000-SE front panel
The front panel of the SD-WAN 1000-SE appliance has a power button and five LEDs. The power button
is used to switch the appliance on or oî ‚. The reset button restarts the appliance.
The LEDs provide critical information related to diî ‚erent parts of the appliance.
• Power Fail – Indicates the power supply unit has failed.
• Information LED – Indicates the following:
Status Description
Continuously ON and red The appliance is overheated. (This might be a
result of cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz) Power failure, check for the non-operational
power supply.
Solid blue Local UID has been activated. Use this function
to locate the server in a rack mount
environment.
Blinking blue (300 m/s) Remote UID is on. Use this function to identify
the server from a remote location.
• NIC1 and NIC2 – Indicate network activity on the LAN1 and WAN1 ports.
• HDD – Indicates the status of the hard disk drive.
• Power – Indicates that the power supply units are receiving power and operating normally.
The following figure shows the back panel of an SD-WAN 1000-SE appliance.
