Citrix SD-WAN Platforms

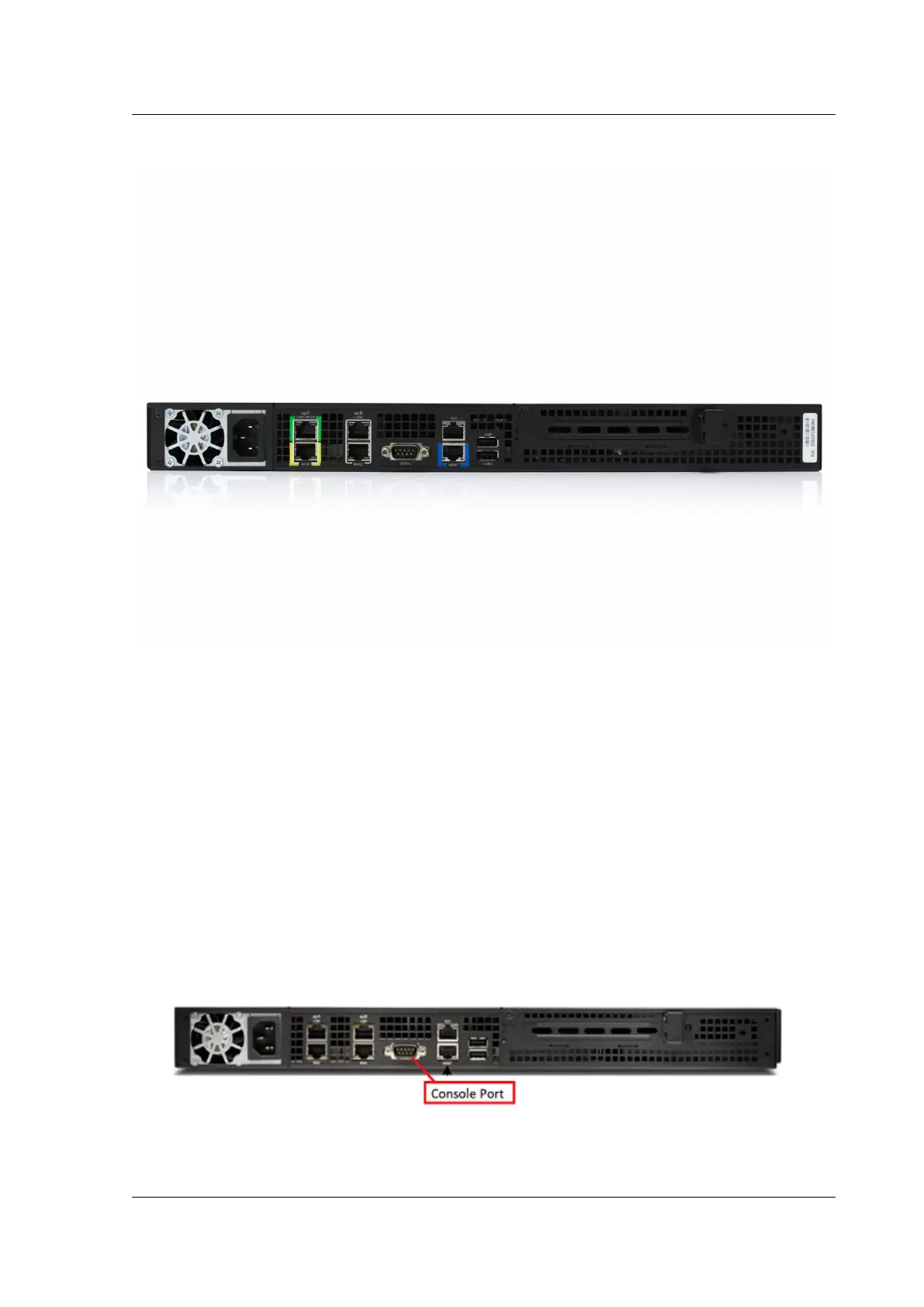

Figure 2. Citrix SD-WAN 1000-SE appliance, back panel
The following components are visible on the back panel of an SD-WAN 1000-SE appliance:
• Cooling fan.
• Single power supply, rated at 200 watts, 110–240 volts.
• Accelerated pairs of Ethernet ports (apA and apB).
• RS-232 serial console port.
• One AUX Ethernet port and one management port.
• Two USB ports.
Power on Appliance Aer a Graceful Shut Down
To power on the appliance aer a graceful shut-down:
1. Connect a Serial console cable to the rear of the appliance and to the serial port on a manage-
ment laptop.
2. On the management laptop, restart a putty session using the following configuration settings:
