Citrix SD-WAN Platforms

SD-WAN 2000 Appliance with Windows Server

May 23, 2019

The Citrix SD-WAN 2000 with Windows Server platform is a 1U appliance with 1 quad-core processor

and 24 gigabytes (GB) of memory.

The following figure shows the front panel of the SD-WAN 2000 appliance with Windows Server.

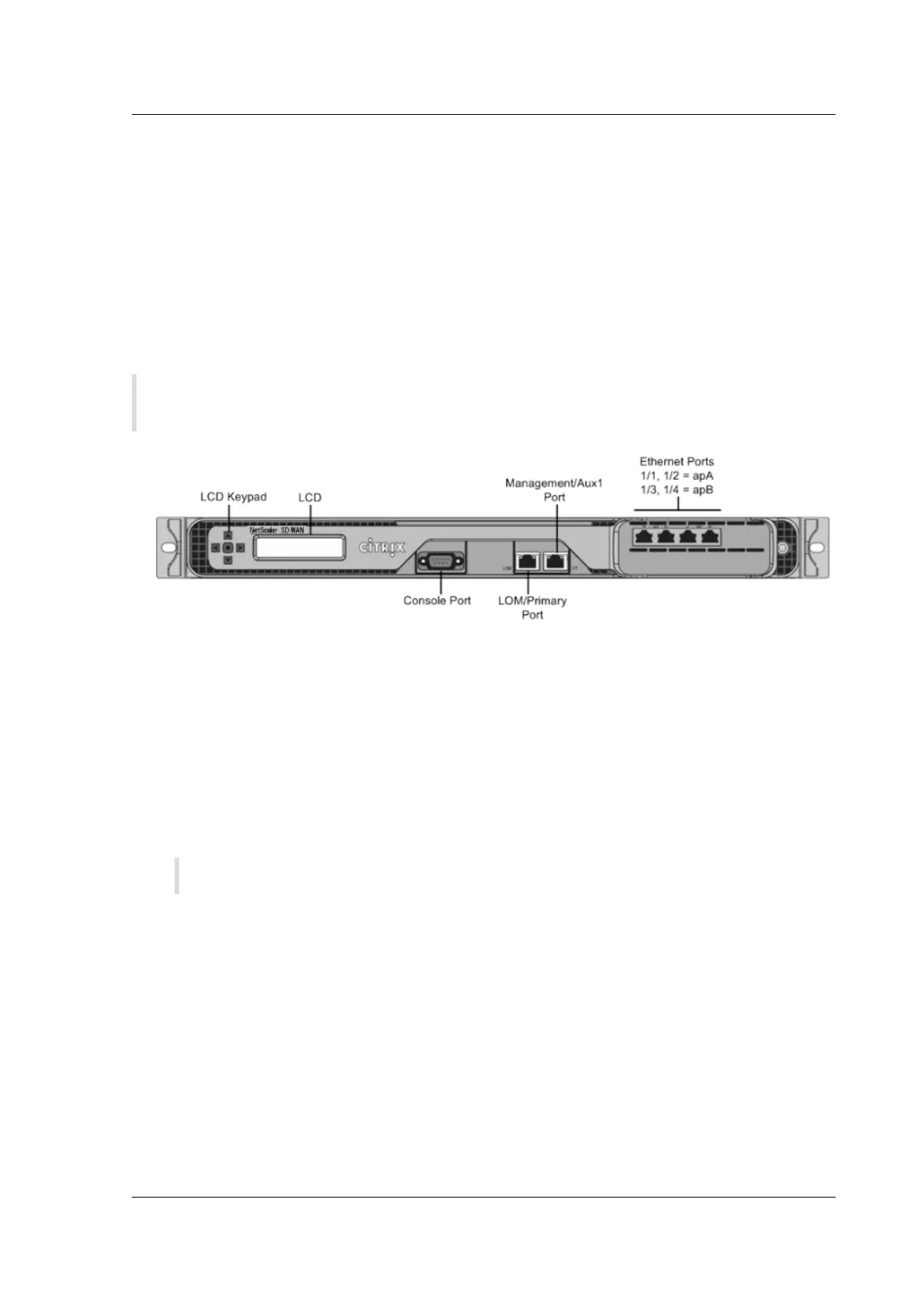

Figure 1. Citrix SD-WAN 2000 appliance with Windows Server, front panel

Note: You cannot assign apA ports to Windows Server. However, you can assign AUX port to

Windows Server

SD-WAN 2000 appliance with Windows Server has the following ports:

• An RS232 serial console port.

• A copper Ethernet (RJ45) Port called the Lights out Management (LOM) port. You can use this

port to remotely monitor and manage the appliance independently of the appliance’s soware.

• A copper Ethernet (RJ45) management port, numbered 0/1, and named PRI (primary). The man-

agement port is used to connect directly to the appliance for system administration functions.

You can use this port for initial provisioning of WAN optimization and Windows Server.

Note: The LOM port also operates as a management port.

• Four 10/100/1000Base-T copper Ethernet ports numbered 1/1, 1/2, 1/3, and 1/4 from le to right.

The four ports form two accelerated pairs, which function as accelerated bridges. Ports 1/1 and

1/2 are accelerated pair A (apA), and 1/3 and 1/4 are accelerated pair B (apB).

The following figure shows the back panel of the SD-WAN 2000 appliance with Windows Server.

Figure 2. Citrix SD-WAN 2000 appliance with Windows Server, back panel
