• Disable alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to stop the power alarm from sounding when you have plugged the ap-
pliance into only one power outlet or when one power supply is malfunctioning and you want
to continue operating the appliance until it is repaired.
• Two power supplies (either AC or DC). providing full hot swap redundancy.
SD-WAN 5100 WANOP
June 19, 2020
Citrix SD-WAN 5100 WANOP is a 2U appliance. Each model has 10-core processor with 2.80 GHz and
128 gigabytes (GB) of memory. The Citrix SD-WAN 5100 WANOP appliance has a bandwidth of 2 Gbps.

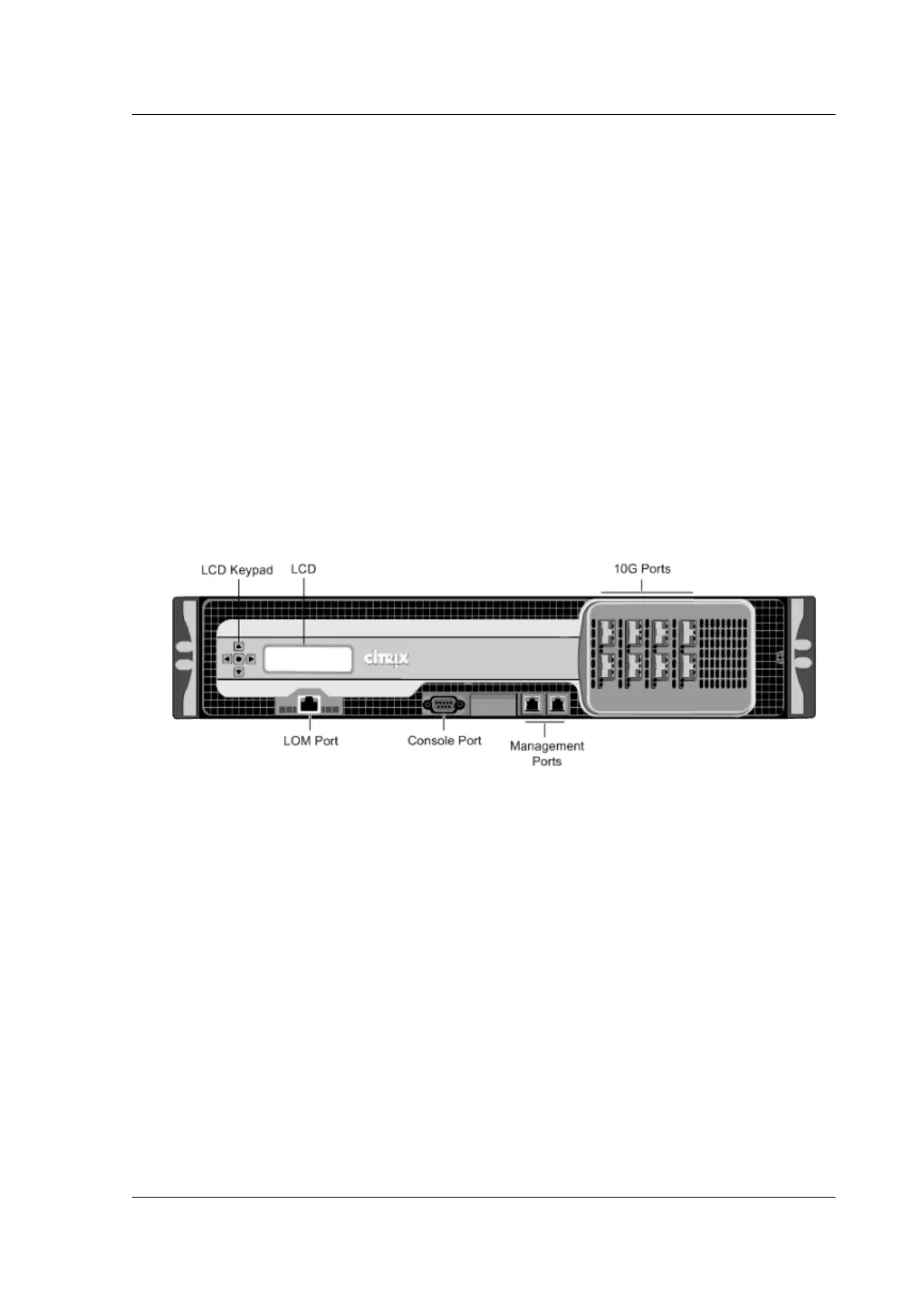

The following figure shows the front panel of the Citrix SD-WAN 5100 WANOP appliance.
Figure 1. Citrix SD-WAN 5100 WANOP, front panel
The Citrix SD-WAN 5100 WANOP appliance has the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re-
motely monitor and manage the appliance independently of the appliance’s soware.
• RS232 serial console port.
• Ethernet ports:
– Two 2-port 10/1G bypass, One 4-port 10G/1G, One 2-port 10G.
These ports are used to connect directly to the appliance for system administration functions.
The following figure shows the back panel of the Citrix SD-WAN 5100 WANOP appliance.
Figure 2. Citrix SD-WAN 5100 WANOP, back panel
© 1999-2021 Citrix Systems, Inc. All rights reserved. 36
