Citrix SD-WAN Platforms
Citrix SD-WAN 4100 WANOP are 2U appliances. Each model has two 6-core processors for a total of 12
physical cores (24 cores with hyper-threading), and 48 gigabytes (GB) of memory. The Citrix SD-WAN
4100 WANOP has a bandwidth of 310 Mbps, 500 Mbps, and 1 Gbps, respectively.

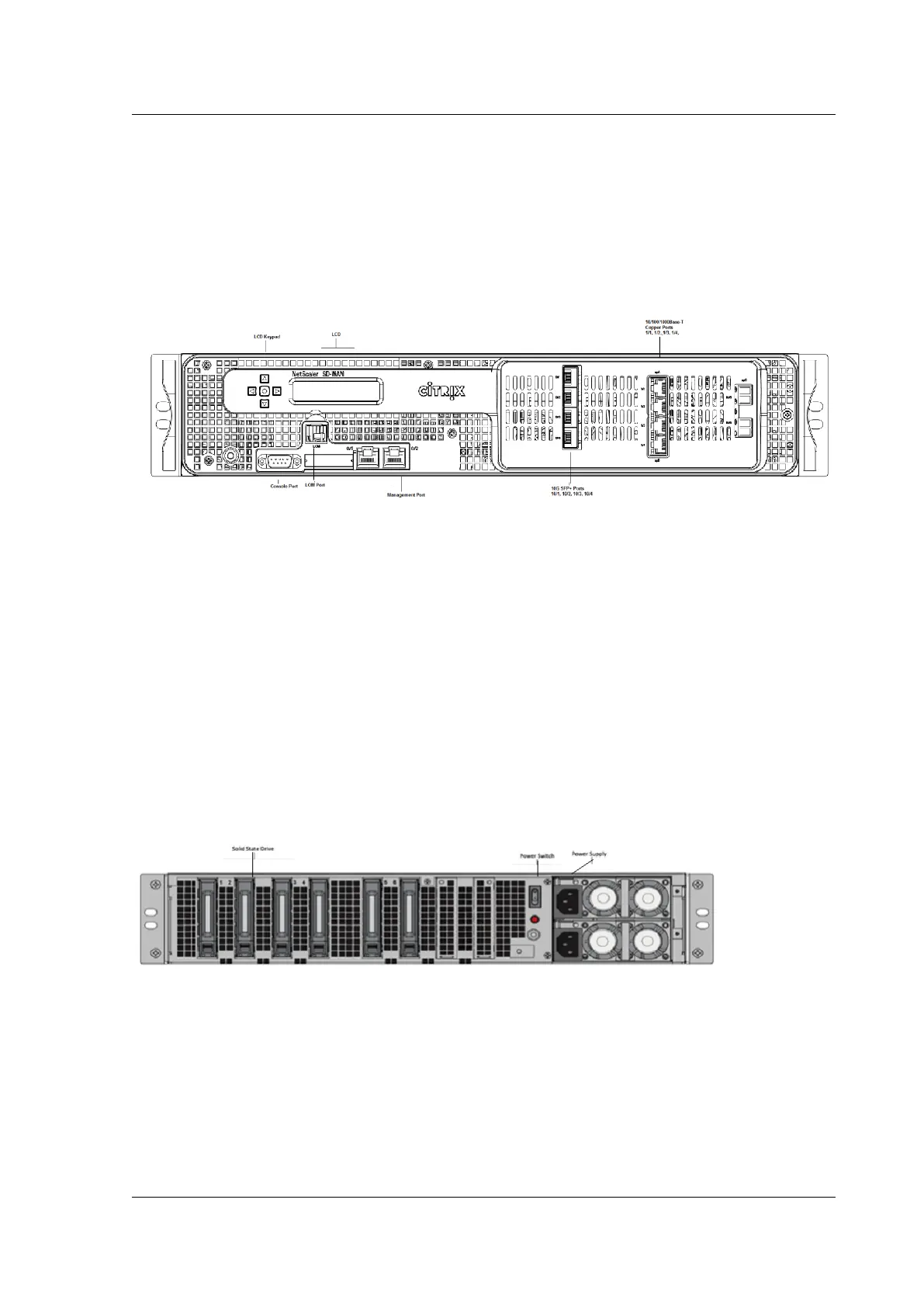

The following figure shows the front panel of the Citrix SD-WAN 4100 appliance.
Figure 1.Citrix SD-WAN 4100, front panel
The Citrix SD-WAN 4100 WANOP appliances have the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re-
motely monitor and manage the appliance independently of the appliance’s soware.
• RS232 serial console port.
• Network Ports
– 1x 2-port 10/1G Bypass
– 1x 4-port 1G Bypass
– 1x 4-port 10G/1G
– 1x 2-port 10G (Hidden)
The following figure shows the back panel of the Citrix SD-WAN 4100 WANOP appliance.
Figure 2. Citrix SD-WAN 4100 WANOP back panel
The following components are visible on the back panel of the Citrix SD-WAN 4100 WANOP appliance:
• Four 800 GB removable solid-state drives, which store the appliance’s compression history.
• Two 1 TB removable hard disk drives.
• Power switch, which turns o power to the appliance, as if you were to unplug the power supply.
Press the switch for five seconds to turn o the power.
