Citrix SD-WAN Platforms
Citrix SD-WAN 1000, 2000, and 2100 Premium (Enterprise) Edition
Appliances
June 19, 2020
The SD-WAN Premium (Enterprise) edition 1000, 2000, and 2,100 appliances combine virtualized in-
stances of WAN optimization and Virtual WAN functionality installed on the appliance. It oers a com-
bination of Virtual WAN and WAN Optimization capabilities.
The SD-WAN 1000 PE, 2000 PE, and 2100 appliances are based on the Citrix branch architecture, which
supports multiple virtual machines. All branch appliances contain an SD-WAN instance, a manage-
ment service instance, and a Xenserver hypervisor.
The SD-WAN instance is typically used in inline mode, with the SD-WAN instance interposed between
the WAN router and the LAN, so WAN traic flows through the accelerated bridge. The SD-WAN in-
stance can also be deployed in virtual inline mode, using a single accelerated bridge port.
In addition to the accelerated bridges and the Windows LAN port, a management port connects to all
virtual machines (instances) and the hypervisor.
The appliance has two modes, two-port mode and four-port mode, which determine how ports 1/3
and 1/4 are used.
Citrix SD-WAN 2100 PE (EE) Appliance
December 14, 2020
The Citrix SD-WAN 2100 PE (EE) appliance is a 1U appliance. This appliance has 8-core processor with
2.1 GHz and 32 GB of memory.

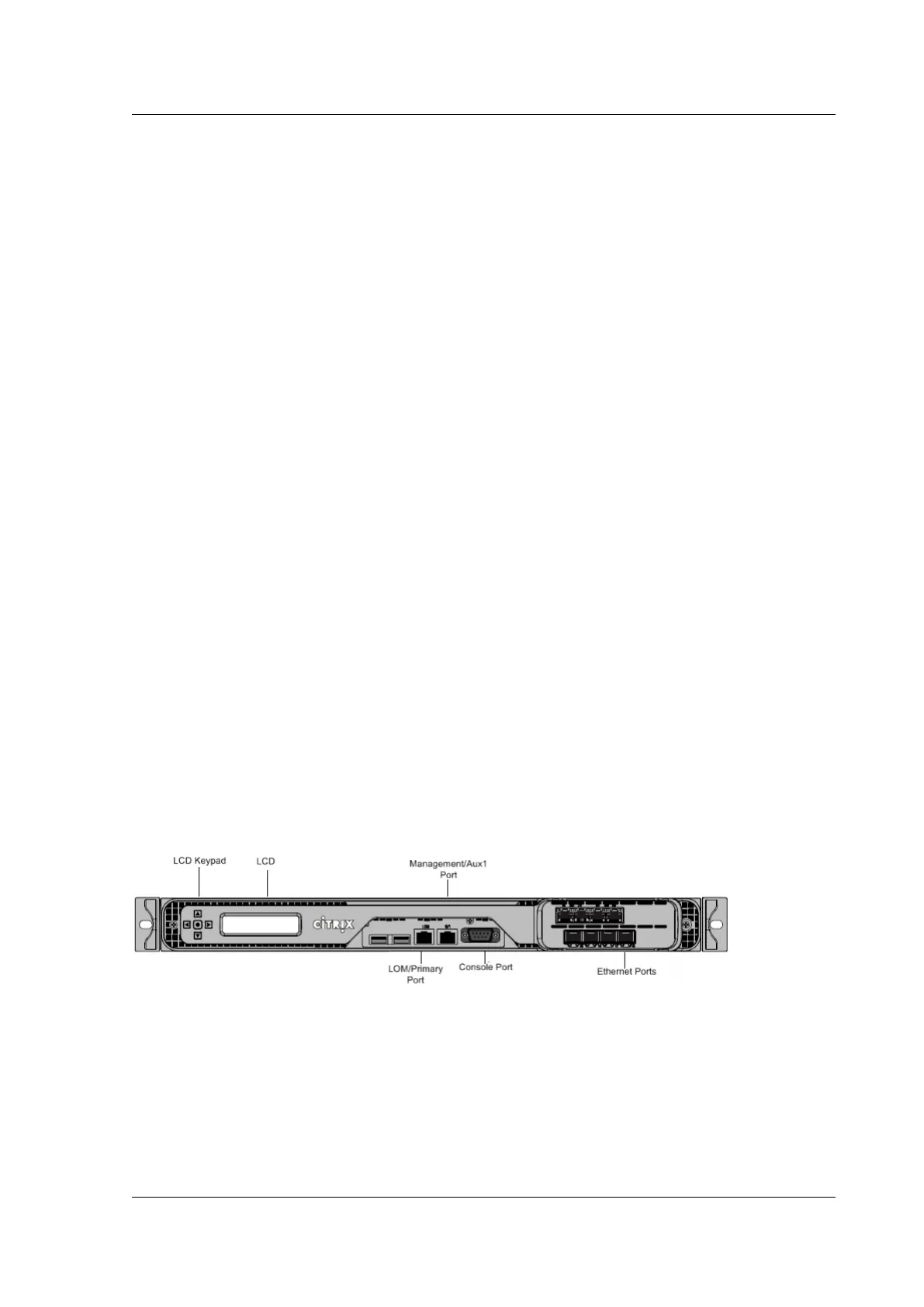

The SD-WAN 2100 PE (EE) appliance has the following ports on the front panel:
• An RS232 serial console port.
• A copper Ethernet (RJ45) Port called the Lights out Management (LOM) port. You can use this
port for initial provisioning of Virtual WAN. You can use this port to remotely monitor and man-
age the appliance independently of the appliance’s soware.
