• Two USB ports.
• Four 1000Base-TX copper Ethernet ports (fail-to-wire).
• Four 1GE SFP ports.
Citrix SD-WAN 2100 PE (EE) back panel

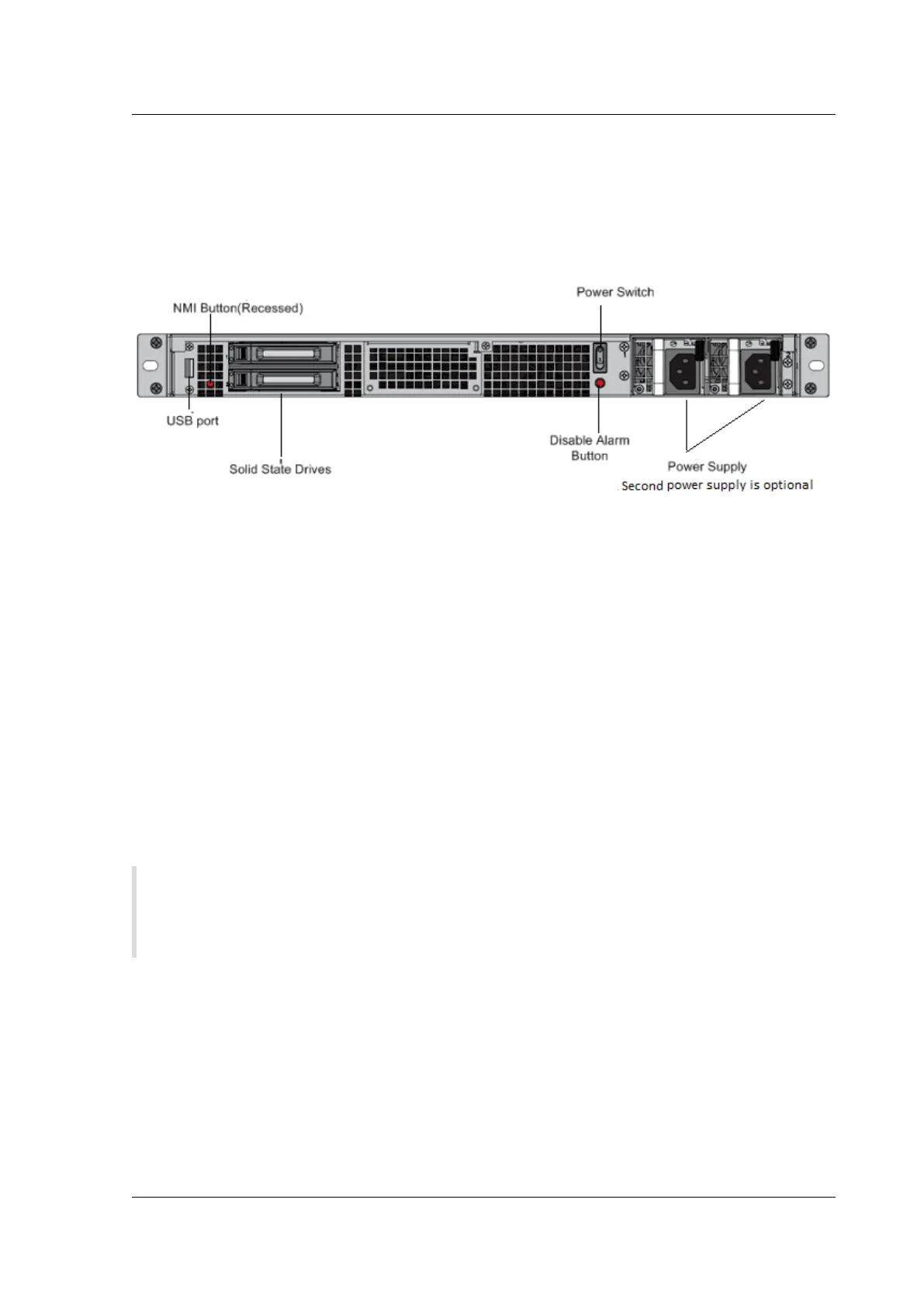

The following components are visible on the back panel of the 2100 PE (EE) appliance:
• 240 GB and 480 GB removable solid-state drives that store the appliance’s soware and user
data.
• Power switch, which switches power to the appliance on or o. Press the switch for five seconds
to switch o the power.
• Single power supply, rated at 450 watts, 100–240 volts. Eachpower supply has an LED indicating
itsstatus, as described below. A secondpowersupply is available as an extra accessory (optional
Field Replaceable Unit (FRU).
2100 PE has two disks, Drive Bay1 holds 240 GB SSD (boot disk) and Drive Bay2 holds 480 GB SSD. In
a case of replacing the old boot disk with a new 240 GB SSD boot disk, it is required to remove both
the 240 GB and 480 GB SSDs prior to plugging in the new 240 GB SSD in Bay1 and following it up with
plugging back 480 GB SSD. This is required for the BIOS to refresh the boot order sequence to normal
state and ensure it boots from the 240GB SSD (boot disk).
Important
To use PE functionality, you need SD-WAN release 10.0 on the 2100 PE appliances and install PE
licenses.
SD-WAN 2000 PE (EE) Appliance
May 23, 2019
The Citrix SD-WAN 2000 PE (EE) platform is a 1U appliance with 1 quad-core processorand 24 gigabytes
(GB) of memory.
