Citrix SD-WAN Platforms

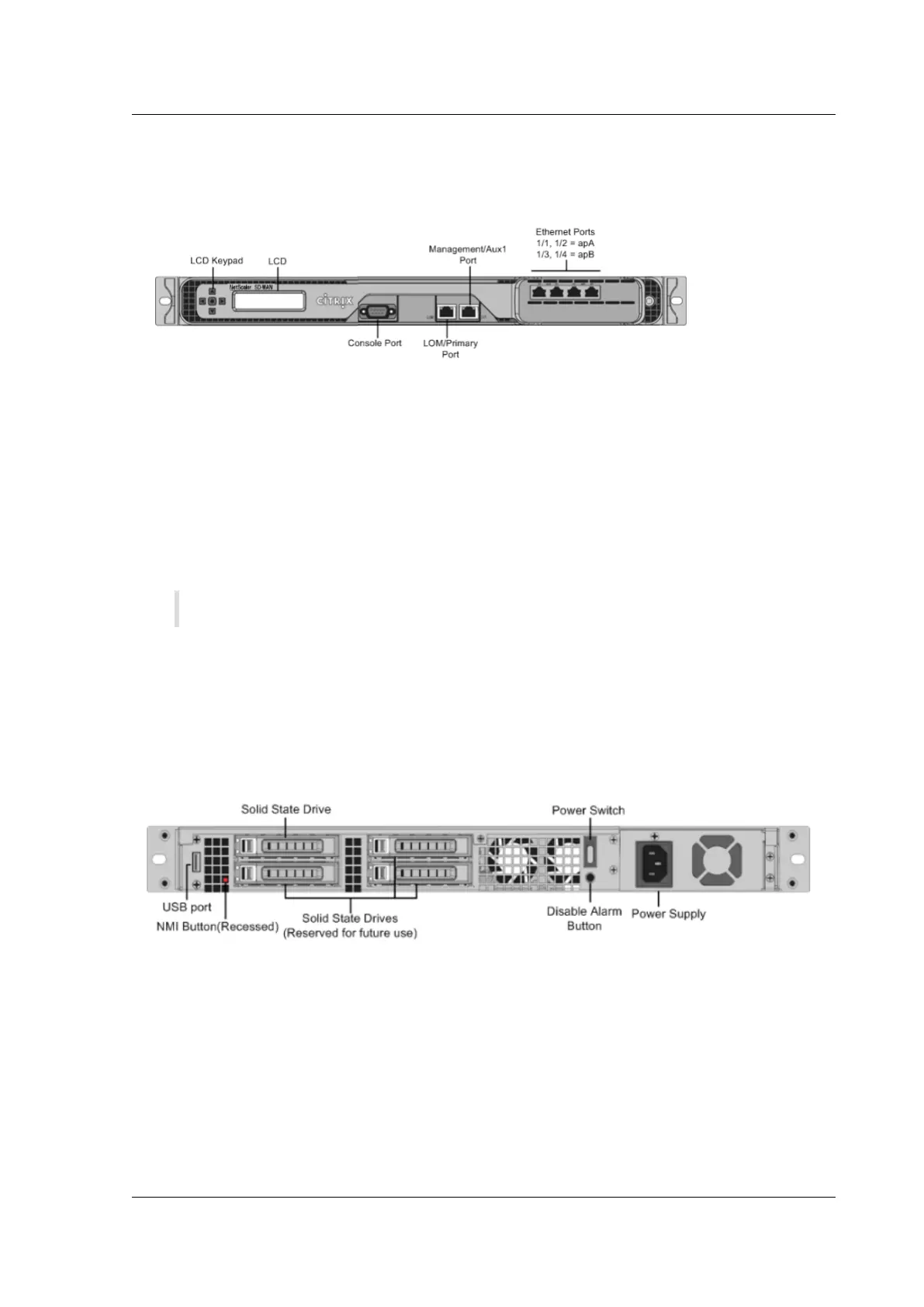

The following figure shows the front panel of the SD-WAN 2000 PE (EE) appliance.
Figure 1. Citrix SD-WAN 2000 PE (EE) appliance, front panel
SD-WAN 2000 PE (EE) appliance has the following ports:
• An RS232 serial console port.
• A copper Ethernet (RJ45) Port called the Lights out Management (LOM) port. You can use this
port to remotely monitor and manage the appliance independently of the appliance’s soware.
• A copper Ethernet (RJ45) management port, numbered 0/1, and named PRI (primary). The man-
agement port is used to connect directly to the appliance for system administration functions.
You can use this port for initial provisioning of WAN optimization and Windows Server.
Note: The LOM port also operates as a management port.
• Four 10/100/1000Base-T copper Ethernet ports numbered 1/1, 1/2, 1/3, and 1/4 from le to right.
The four ports form two accelerated pairs, which function as accelerated bridges. Ports 1/1 and
1/2 are accelerated pair A (apA), and 1/3 and 1/4 are accelerated pair B (apB).
The following figure shows the back panel of the SD-WAN 2000 PE appliance.
Figure 2. Citrix SD-WAN 2000 PE appliance, back panel
The following components are visible on the back panel of the SD-WAN 2000 PE appliance:
• 600 GB removable solid-state drive, which stores the appliance’s soware and user data, and 1
TB hard disk drive.
• Power switch, which switches power to the appliance on or o. Press the switch for five seconds
to switch o the power.
• USB port (reserved for a future release).
© 1999-2021 Citrix Systems, Inc. All rights reserved. 122
