Citrix SD-WAN Platforms

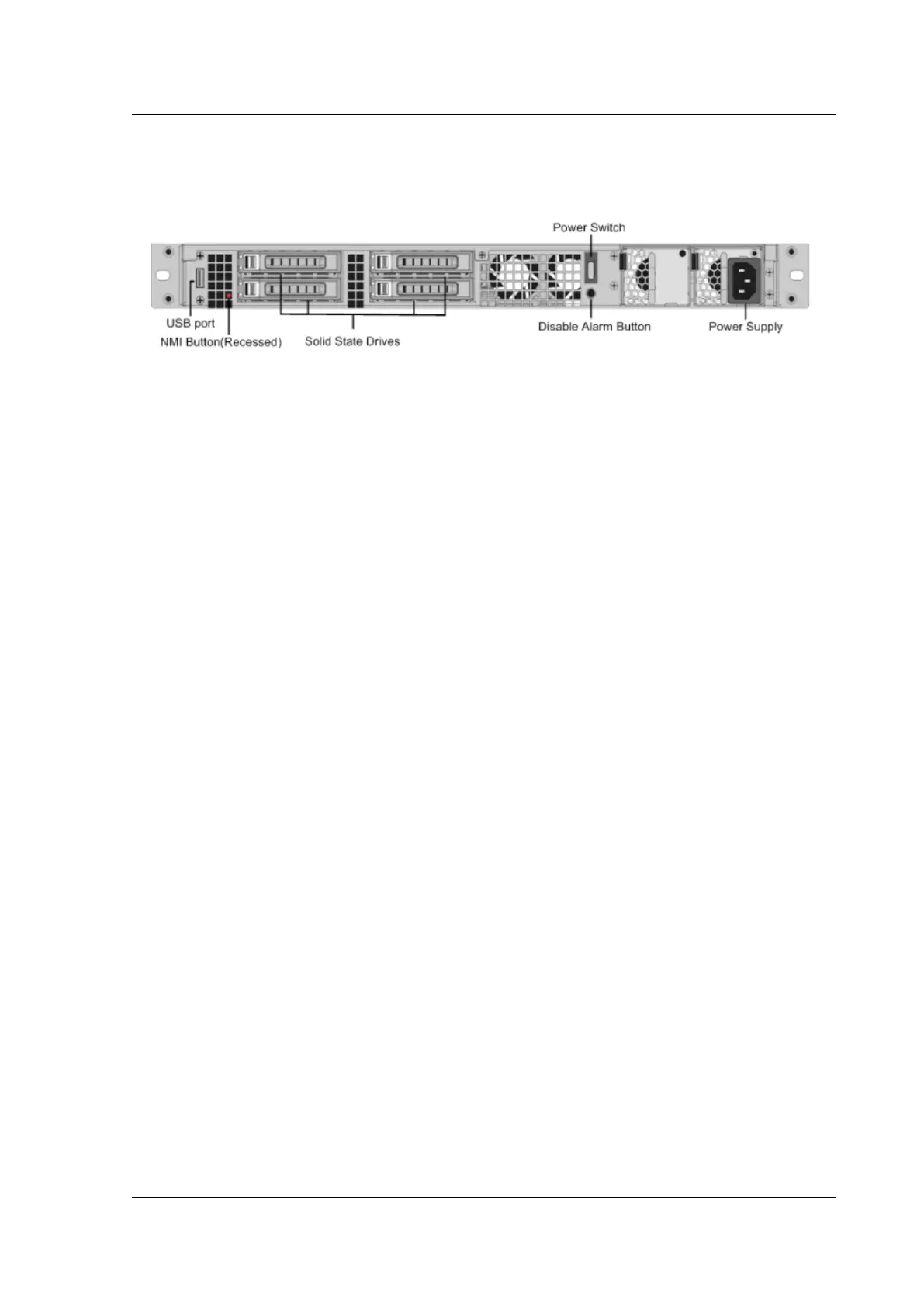

The following figure shows the back panel of the SD-WAN WANOP 3000 appliance.

Figure 3. Citrix SD-WAN WANOP 3000 appliance, back panel

The following components are visible on the back panel of the SD-WAN WANOP 3000 appliance:

• Four 600 GB removable solid-state drives. The top le solid-state drive stores both the appli-

ance’s soware and the user data. The other three store only user data.

• Power switch, which turns power to the appliance on or o. To turn o the power, press the

switch for five seconds.

• USB port (reserved for a future release).

• Non-maskable interrupt (NMI) button, for use at the request of Technical Support to produce a

core dump. You must use a pen, pencil, or other pointed object to press this red button, which

is recessed to prevent unintentional activation.

• Disable alarm button, which is nonfunctional unless you install a second power supply. In that

case, it disables the alarm that sounds if the appliance is plugged into only one power outlet or

one of the power supplies fails.

• Single power supply, rated at 450 watts, 100–240 volts.

Summary of Hardware Specifications

June 22, 2020

The following table summarizes the specifications of the Citrix SD-WAN WANOP 800, 1000, 2000, and

3000 hardware platforms.

Table 1. Citrix SD-WAN WANOP 800, 2000, 1000, and 3000 Platforms Summary

Platform Performance
