Citrix SD-WAN Platforms

Status Description

Fast blink - 3–4 blinks per second Remote UID is on. Use this function to identify

the server from a remote location.

• NIC1 and NIC2 – Indicate network activity on the LAN1 and WAN1 ports.

• HDD – Indicates the status of the hard disk drive.

• Power – Indicates that the power supply units are receiving power and operating normally.

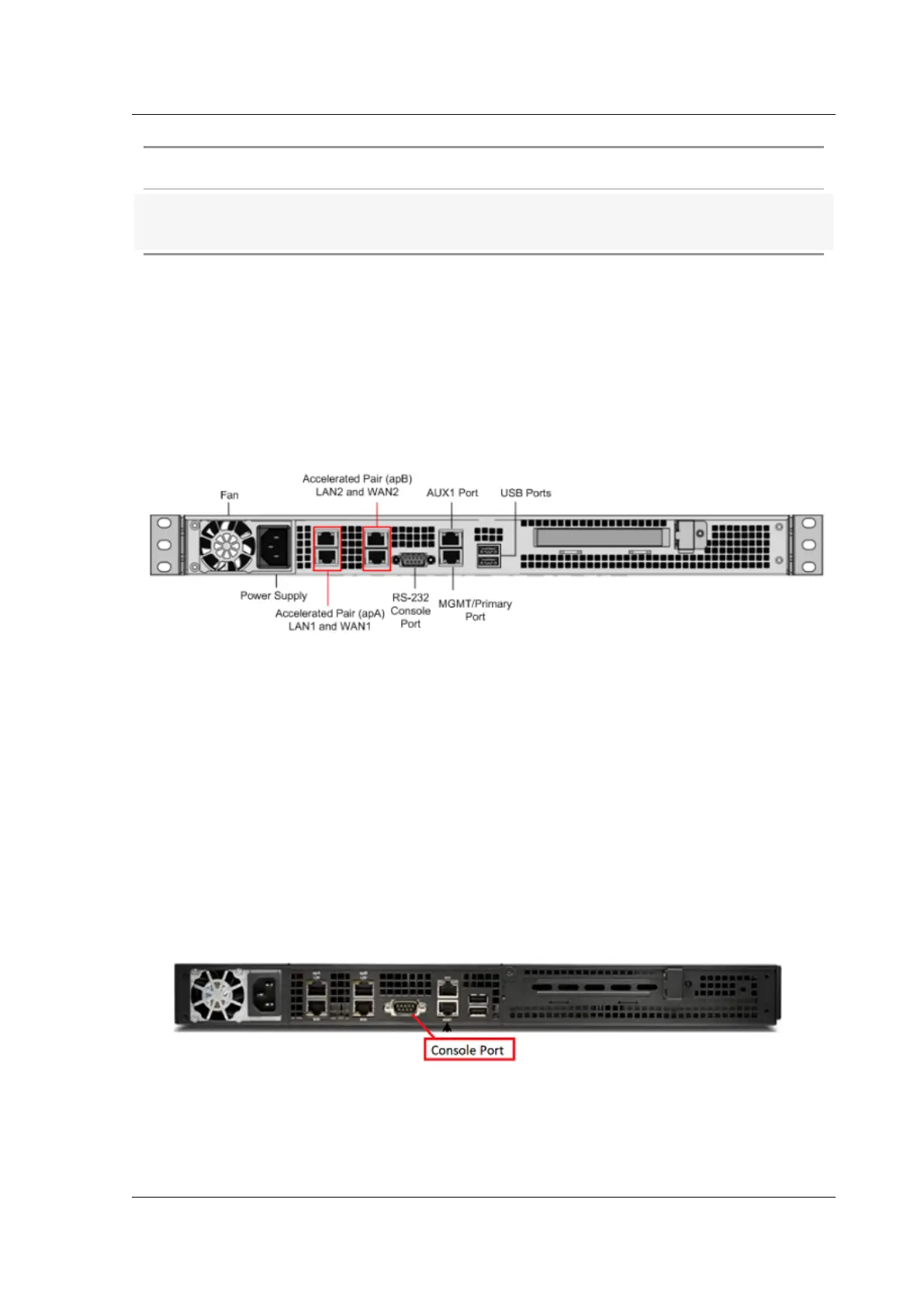

The following figure shows the back panel of an SD-WAN 1000 EE appliance.

Figure 2. Citrix SD-WAN 1000 PE (EE) appliance, back panel

The following components are visible on the back panel of an SD-WAN 1000 PE (EE) appliance:

• Cooling fan

• Single power supply, rated at 200 watts, 110–240 volts

• Accelerated pairs of Ethernet ports (apA and apB) which function as accelerated bridges

• RS-232 serial console port

• One AUX Ethernet port and one management port

• Two USB ports

Power on appliance aer a graceful shutdown

1. Connect a Serial console cable to the rear of the appliance and to the serial port on a manage-

ment laptop.

2. On the management laptop, restart a putty session using the following configuration settings:

• Serial line: COM1

Citrix SD-WAN Series - Page 124
