• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45). These ports are used to
connect directly to the appliance for system administration functions.
• Eight 10G ports - 4 LC fiber ports with bypass, 4 SFP+ ports (no bypass).
• Two USB ports (reserved for a future release).

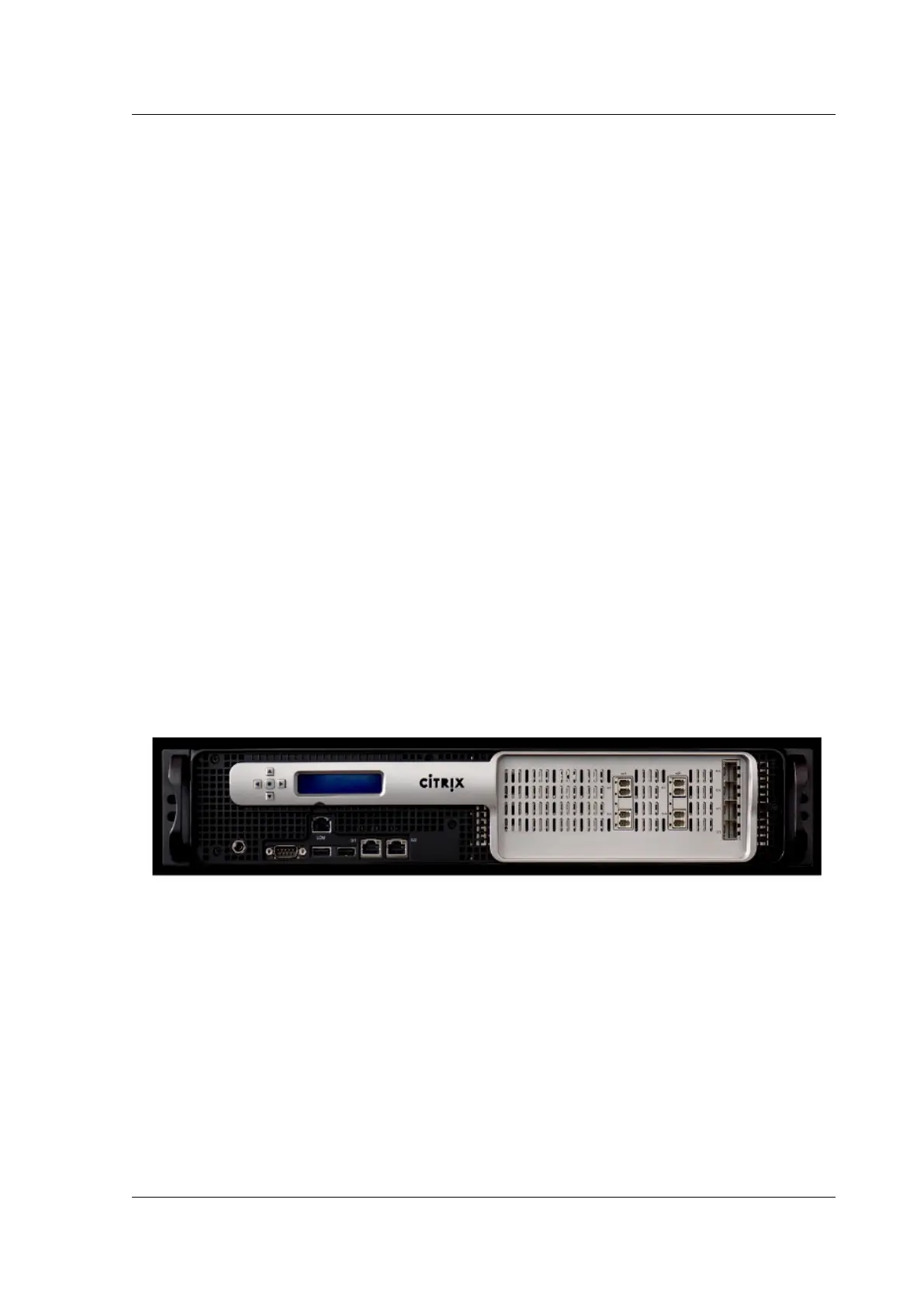

The following components are visible on the back panel of the SD-WAN 5100 PE appliance:
• 2 X 1 TB removable hard disk drive.
• Requires 960 GB more SSD. Insert the SSD into the third, fourth, and fih drive bays.
• Boot drive bay 1, 2- [HDDs] - Hard Drive, Capacity 1TB, 2.5”, SATA 6Gb/s.
• Drive bay 3,4,5-[SSDs]- Solid State Drive, 960GB.
• Drive bay 6,7,8-[Plastic Filler] - 2.5” SSD Plastic Drive Tray Filler.
• Power switch, which turns o power to the appliance, as if you were to unplug the power supply.
Press the switch for five seconds to turn o the power.
• Disable PS alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to mute the power alarm from sounding when you have plugged the ap-
pliance into only one power outlet or when one power supply is malfunctioning and you want
to continue operating the appliance until it is repaired.
• Dual redundant, hot-swappable power supplies (100-240VAC standard, -48VDC optional).
The power supplies used for 5100 appliance is two power supplies each 1000W.
Upgrades from Standard Edition to Premium Edition use 960G SSDs, three of the SSDs installed in
bays 3, 4 & 5.
Upgrade 5100 SE appliance to 5100 PE appliance
Insert solid state drive (SSD)
1. Insert the required SSD in the standard edition appliance. For instructions about how to insert
SSD, see Solid State Drive (Field Replaceable Unit).
a) 5100 SE appliance requires 960 GB more SSD. Insert the SSD into the third, fourth, and
fih drive bays.
